RSR TB355 Quick Start Manual

RSR TB355 Quick Start Manual

2.1 channel sound bar with built-in subwoofer

Advertisement

Quick Links

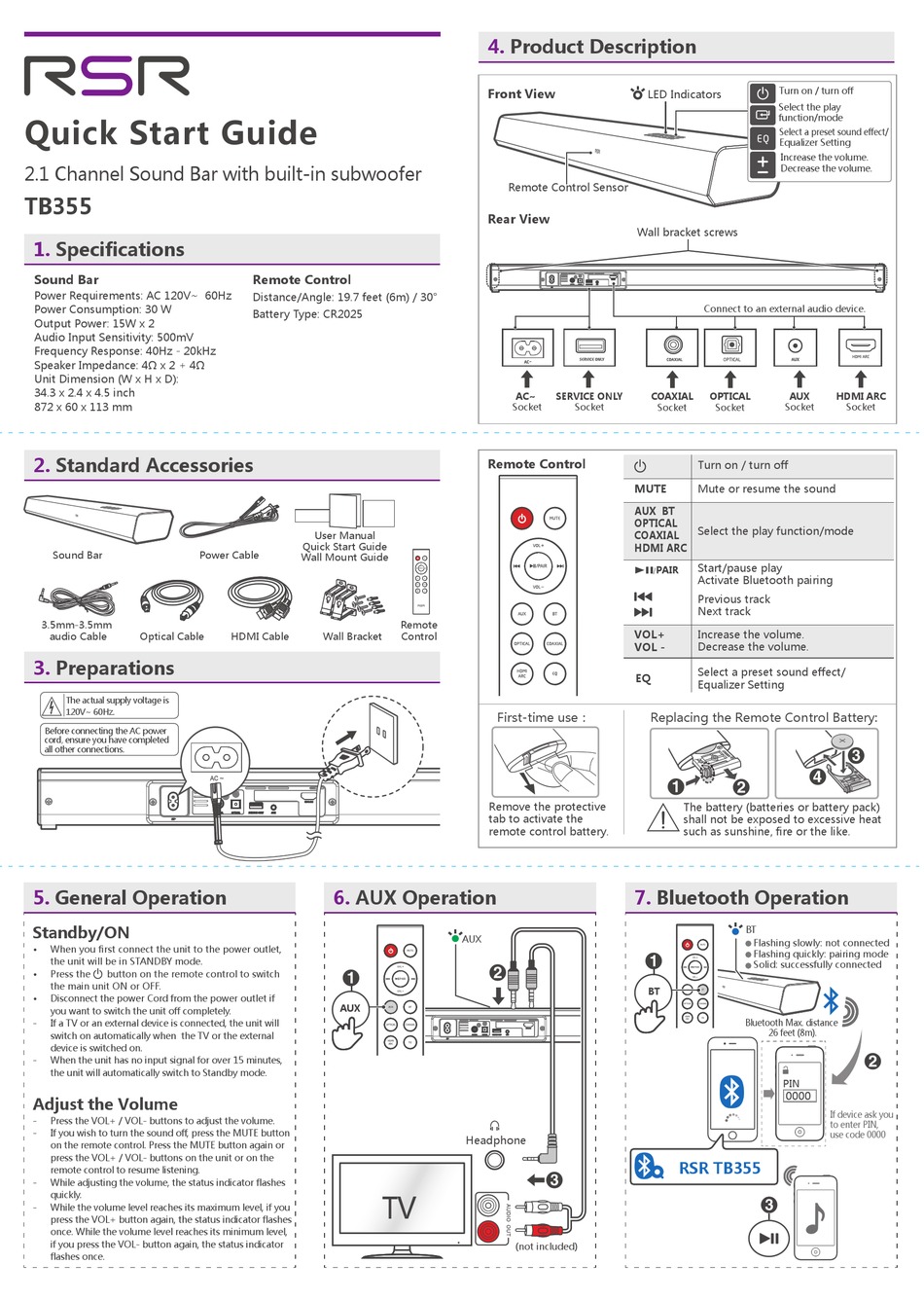

Quick Start Guide
2.1 Channel Sound Bar with built-in subwoofer
TB355
1.

Specifications

Sound Bar
Power Requirements: AC 120V~ 60Hz
Power Consumption: 30 W
Output Power: 15W x 2
Audio Input Sensitivity: 500mV
Frequency Response: 40Hz - 20kHz
Speaker Impedance: 4Ω x 2 + 4Ω
Unit Dimension (W x H x D):
34.3 x 2.4 x 4.5 inch
872 x 60 x 113 mm
2.

Standard Accessories

Sound Bar
3.5mm-3.5mm
audio Cable
Optical Cable
3.
Preparations
The actual supply voltage is
120V~ 60Hz.
Before connecting the AC power
cord, ensure you have completed
all other connections.
5.

General Operation

Standby/ON
When you first connect the unit to the power outlet,
the unit will be in STANDBY mode.
Press the
button on the remote control to switch
the main unit ON or OFF.
Disconnect the power Cord from the power outlet if
you want to switch the unit off completely.
-
If a TV or an external device is connected, the unit will
switch on automatically when the TV or the external
device is switched on.
-
When the unit has no input signal for over 15 minutes,
the unit will automatically switch to Standby mode.

Adjust the Volume

-
Press the VOL+ / VOL- buttons to adjust the volume.
-
If you wish to turn the sound off, press the MUTE button
on the remote control. Press the MUTE button again or
press the VOL+ / VOL- buttons on the unit or on the
remote control to resume listening.
-
While adjusting the volume, the status indicator flashes
quickly.
-
While the volume level reaches its maximum level, if you
press the VOL+ button again, the status indicator flashes
once. While the volume level reaches its minimum level,
if you press the VOL- button again, the status indicator
flashes once.
Remote Control
Distance/Angle: 19.7 feet (6m) / 30°
Battery Type: CR2025
User Manual
Quick Start Guide
Power Cable
Wall Mount Guide
HDMI Cable
Wall Bracket
6.
AUX Operation
AUX
4.

Product Description

Front View
Remote Control Sensor
Rear View
AC~
Socket
Remote Control
Remote
Control
First-time use:
Remove the protective
tab to activate the
remote control battery.
AUX
Headphone
TV
(not included)
LED Indicators
Wall bracket screws
Connect to an external audio device.
SERVICE ONLY
COAXIAL
OPTICAL
Socket
Socket
Socket
Turn on / turn off
MUTE
Mute or resume the sound
AUX BT
OPTICAL
Select the play function/mode
COAXIAL
HDMI ARC
Start/pause play
PAIR
Activate Bluetooth pairing
Previous track
Next track
VOL+
Increase the volume.
VOL -
Decrease the volume.
Select a preset sound effect/
EQ
Equalizer Setting
Replacing the Remote Control Battery:
The battery (batteries or battery pack)
shall not be exposed to excessive heat
such as sunshine, fire or the like.
7.

Bluetooth Operation

BT
RSR TB355
Turn on / turn off
Select the play
function/mode
Select a preset sound effect/
Equalizer Setting
Increase the volume.
Decrease the volume.
AUX
HDMI ARC
Socket
Socket
BT
Flashing slowly: not connected
Flashing quickly: pairing mode
Solid: successfully connected
Bluetooth Max. distance
26 feet (8m).
PIN
0000
If device ask you
to enter PIN,
use code 0000
