Lamptron FC5V3 Instruction Manual

Lamptron FC5V3 instruction manual
Thank you for choosing Lamptron. The Lamptron
FC5 V3 controller is optimized for air-cooled systems
but it can be used also for liquid cooling.
The following are the most worthy of your attention
FC5 V3 features:
New wide screen with 16 bright colors: you can choose the backlight
among 16 colors simply pressing the first knob on the left.
6 independent channels: 6 knobs allow the direct control of the 6
channels and the relative information is constantly displayed on the
screen as speed, voltage and temperature.
30 W per channel: every channel handles up to 30 W.
Start boost: the FC5V3 provide an initial 12 V in all the channels in
order to make the fans work even if set at the minimum working
voltage.
Alarm function: the alarm function is programmable directly from the
interface.
Sleeved cables: all the wires are wrapped with black high texture
"snakeskin" sleeving.
Cool PCB: as all the recent Lamptron products, the FC5V3 features
a black PCB for the electronic circuit.
We recommend that you read the following detailed
description of the FC5 V3 usage before putting it into
use; the instructions will introduce the new interface
and the actions for the configuration of all parameters.

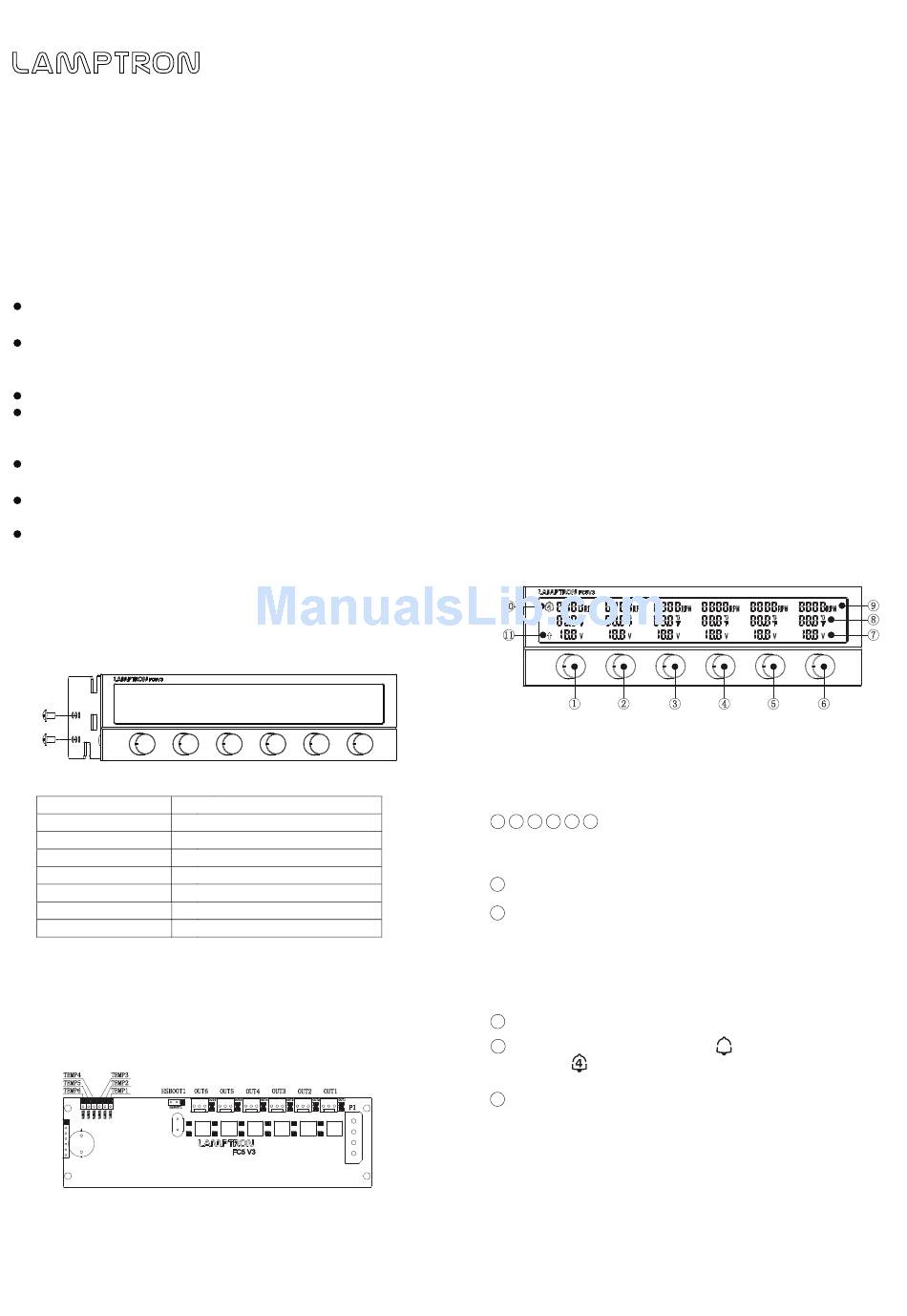

INSTALLATION:
SPECIFICATIONS:
Dimension
LCD Dimension
Power Output
Control Channel
Color Available
DC Input
DC Output
Connectors
Installation location:
For the FC5V3 drive installation you will need the screws that are
included in the bundle of the product. The FC5V3 can be easily
installed in the 5.25-inch bay of your PC case. Please, consider
setting a good cable management in order to avoid problems.
CONNECTIONS:
TEMP4 TEMP3
TEMP5 TEMP2
TEMP6 TEMP1 HSBOOT1
HSBOOT1
148.5mm * 42.5mm * 63mm
136mm * 19mm(wide screen)
Up to 30 watts per channel
6 Channels
Black Anodized/Silver
+ 12V(Standard "D" Connector）
0V - 12V DC
6pcs 3pin connectors
OUT6 OUT5 OUT4 OUT3 OUT1
OUT2
OUT6 OUT5 OUT4 OUT3 OUT2 OUT1
P1 P1
FC5 V3 FC5 V3
Instructions:
1. P1: Connect the power supply.
Tip: Be sure to use at least 18AWG wiring specifications.
2. Out1～Out6: channel 1 to channel 6 output interface for the
connected load fan. The six interfaces are standard with KF2510
3pin interfaces.
Tip: You can also smooth insertion KF2510 4pin connector.
3. TEMP1 ~ TEMP6: are respectively connected to the P1 ~ P6
corresponding to the temperature sensitive.
Tip: Automatic control of each output channel is provided according
to the temperature of the corresponding serial number sense, the
corresponding output channel and the corresponding temperature
sense connection. P3 channel automatic control will based on
Temp3 temperature sensing.
4. HSBOOT1: this jumper enables the start boost function in order
to make the fans run also at minimum working voltage.
If the mini-jumper cap is connected, the fans will be start boost mode
during the booting phase.
OPERATION:
10
11
1 2
When the power is switched on, the controller will perform a
boot animation showing a demo of the 16 available colors.
The 16 display colors will be displayed for the user selection.
The factory default color is green.
1 2 3 4 5 6 Depicted in the image represent the 6 independent
output channels; display shows the corresponding speed, temperature,
voltage and other data for each channel;
7 Represents voltage (V);
8 Indicates the temperature, in Fahrenheit degrees (°F) and Celsius
degrees (°C) two units of selection; the default parameter is set in
Celsius (°C).
Pressing the channel potentiometer longer than 2 seconds, the
temperature unit allows switching between (°C) and (°F);
9 Represents speed(RPM);
Refers to alarm option；Divided into:
10
full alarm, on behalf of the channel 1 to channel 4 alarm, and
icons do not appear on behalf of the police; Three-way display.
11 Start boost mode.
3 4 5 6
on behalf of the 6-channel
9
8
7
