Summary of Contents for Unilux VFC

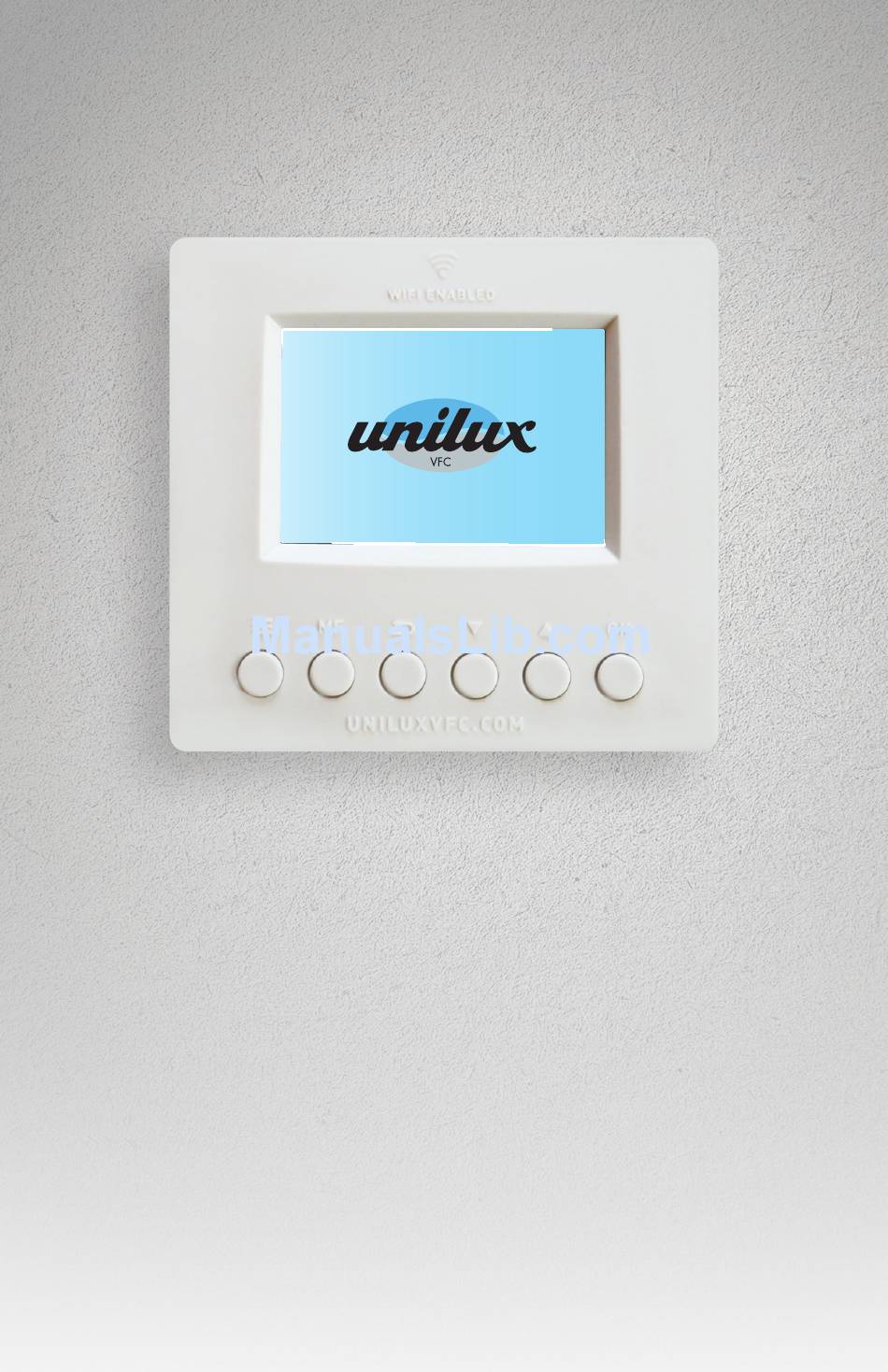

- Page 1 Welcome to Unilux VFC Wall-mount Thermostat User Guide...
- Page 2 Welcome to your new home and Unilux VFC Wall-mount Thermostat. Please refer to this user guide to help set up your thermostat.
-
Page 3: Table Of Contents
Table of Contents Unilux VFC Wall-mount Thermostat Menu Button Multi-Function (MF) Button Manual Programming Schedule Modes Fan Modes General Modes Battery Back-up Wi-Fi Technology Upgrade UniluxVFC.com... -
Page 4: Unilux Vfc Wall-Mount Thermostat
Unilux VFC Wall-mount Thermostat Buttons: Menu – Choose and select display parameters manual mode Multi-Function – Manually choose and select various operating modes Escape – Undo, exit/back to home screen Down – Scroll down through list or go to next parameter Up –... -
Page 5: Menu Button
Menu Button Press Menu to set up your thermostat preferences, which can be changed whenever you like. Press Menu once to choose Celsius or Fahrenheit temperature – use Up & Down to make your choice and press OK Select 12 or 24-hour time using Up & Down – Down is 12-hour time; Up is 24-hour time. -
Page 6: Multi-Function (Mf) Button
Multi-Function (MF) Button The MF button acts as the navigation button on your thermostat. Pressing MF will cycle through the following operating modes (from left to right, top to bottom), which light up when toggled to: • P HOLD (Permanent Hold) •... -
Page 7: Schedule Modes
Schedule Modes Press MF once, then OK for P HOLD. P Hold or Permanent Hold holds the selected settings and modes until otherwise changed. You’ll be prompted to select a temperature setpoint using Up & Down. Press MF twice, then OK for T HOLD. T Hold or Temporary Hold holds the selected settings and modes until the next scheduled program. -
Page 8: Fan Modes
Fan Modes Press MF 4 times, then OK for Auto. The thermostat automatically sets the fan to High, Med or Low speed determined by the difference between room temperature and the temperature setpoint. Press MF 5 times, then OK for Low. Manually set the fan speed to low. -
Page 9: General Modes
Press Up to select the month you return. Press OK. Use Up/Down to select your return date. Press OK. Press Up/Down to select the hour you return. Press OK. Press MF 11 times, then OK to turn off the VFC. No heating or cooling, system off. -
Page 10: Battery Back-Up
Battery Back-up Your thermostat has a CR2032 button battery installed for power back-up. The back-up battery saves all of your information in the event of power failure, including: • Date, time and temperature display, and other general settings • Your schedule and setpoints Ensure the plastic-tab insulator is removed for this to work. -
Page 11: Wi-Fi Technology Upgrade
For more information on how to add our Wi-Fi program to your vertical fan coil please contact Unilux VFC Parts & Service. Phone: 905.265.2418 Toll Free: 1.800.397.3680... - Page 12 Parts & Service 905.265.2418 1.800.397.3680 service@uniluxvfc.com uniluxvfc.com Office: 905.851.3981 info@uniluxvfc.com 7930 Huntington Rd, Unit A, Woodbridge, ON L4H 4M8...
