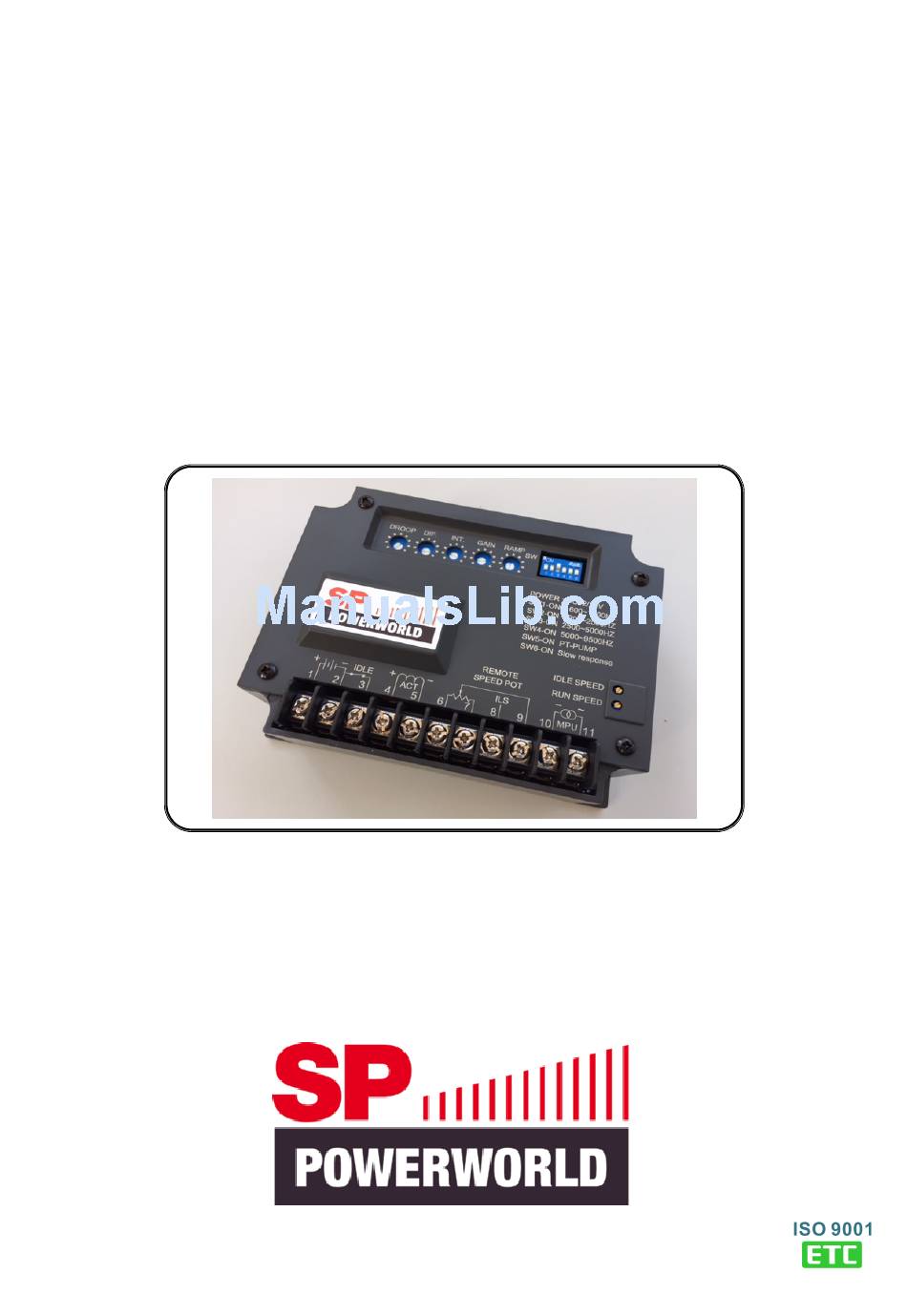

EG3000
Electronic Engine Governor Controller
Manual
User
Engine Start Smoke Limiting function & IDLE Speed Setting
For External, Built-in, PT-Pump type and hydraulic drive actuators
Newly added "extreme slow response" engine setting
SP POWERWORLD LTD
Willows, Waterside, Ryhall, Stamford, Lincs, PE9 4EY, UK Tel:
+44 (0) 115 9232568 - Email: info@sp-powerworld.com
www.sp-powerworld.com
Advertisement
Table of Contents
Related Manuals for SP POWERWORLD EG3000
Summary of Contents for SP POWERWORLD EG3000
- Page 1 Engine Start Smoke Limiting function & IDLE Speed Setting For External, Built-in, PT-Pump type and hydraulic drive actuators Newly added “extreme slow response” engine setting SP POWERWORLD LTD Willows, Waterside, Ryhall, Stamford, Lincs, PE9 4EY, UK Tel: +44 (0) 115 9232568 - Email: info@sp-powerworld.com...
- Page 2 SECTION 1 : SUMMARY The EG3000 electronic controller takes a signal from a magnetic pickup (MPU) and compares it with a preset engine speed to control drive voltage to the actuator to maintain constant engine speed. The EG3002 has engine start smoke suppression, IDLE Speed control, Ramp Time setting, applicable for MPU frequency range of 600 to 9500 Hz.
- Page 3 600~1200HZ Setting SW2-ON 1200~2500HZ SW3-ON 2500~5000HZ When Terminals 2 & 3 SW4-ON 5000~9500HZ SW5-ON PT-PUMP shorted, use this pot to EG3000 SW6-ON Slow response adjust IDLE speed. IDLE SPEED REMOTE RUN SPEED ： O perating SPEED POT RUN SPEED IDLE Speed Setting 1、2：Battery Input...
- Page 4 SECTION 5 : WIRING CONNECTIONS DROOP DIF. INT. GAIN RAMP POWER : DC12/24V SW1-ON 600~1200HZ SW2-ON 1200~2500HZ SW3-ON 2500~5000HZ SW4-ON 5000~9500HZ SW5-ON PT-PUMP EG3000 SW6-ON Slow response IDLE SPEED REMOTE SPEED POT RUN SPEED IDLE Cable A Idle switch Magnetic Pickup Analogue...
- Page 5 If an external VR is used then adjust to a middle appropriate. position. 6.3.5 Stop the engine then start again. If the engine will Open the IDLE switch between terminals 2 & 3. not start then adjust the IDLE Speed clockwise to increase the IDLE setting. ___________________________________________________________________________________________ EG3000...
- Page 6 One uses a 5 KΩ potentiometer to provide 5% speed adjustment remotely up to 60 meters. The other uses an analog input voltage that provides 1.5% speed adjustment for each 1 Vdc. For connection details see Section 5. Wiring Diagram. ___________________________________________________________________________________________ EG3000...
- Page 7 If that item is normal then manually toggle the actuator linkage during engine cranking. If the engine still does not start then check whether engine fuel supply is normal (fuel level, fuel valve closed, stop solenoid linkage, etc.) ___________________________________________________________________________________________ EG3000...
- Page 8 ※ Appearance and specifications of products are subject to change for improvement without prior notice. ※ NOTE : The shielded cable of the magnetic pick-up (MPU) cannot be spliced or it will allow electromagnetic interference to the controller. ___________________________________________________________________________________________ EG3000...
