9. Most pre-1974 GM vehicles equipped with Delcotron alternators with external regulator and most Ford vehicles with

Autolite / Motorcraft alternators with external regulator will require isolation diode installation. The isolation diode

prevents current from the regulator flowing back to the ignition power relay when the key is turned off.

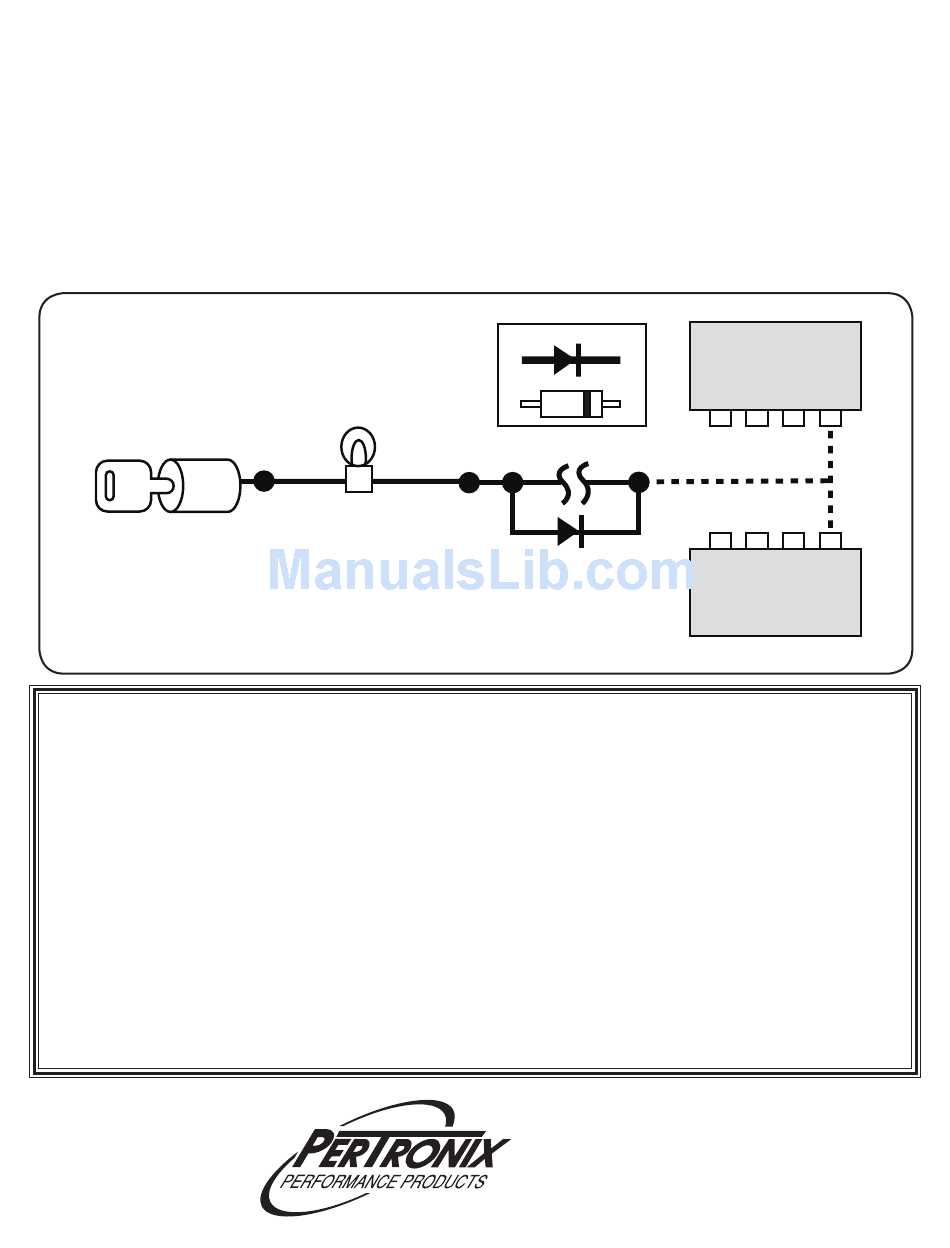

10. Locate the terminal on voltage regulator that is connected to charge indicator light. This is terminal I on most Ford

regulators and terminal 4 on most GM regulators. A top view of the regulator is shown in diagram below to help with

terminal identification. Break the wire going to this terminal and solder the diode to the wire ends. Observe diode

polarity indicated by a "band" on the diode. Wrap diode and wires with electrical tape. Make sure diode or bare wires

cannot touch any metal surface.

11. Verify proper operation of charging circuit and ignition system. If charge indicator light , does not light up when key

is turned on before engine is started, diode was probably installed backwards.

IGNITION

SWITCH

PerTronix, Inc. warrants to the original Purchaser of its power relay that the product shall be free from defects in material and work-

manship (normal wear and tear excluded) for a period of 12 months from the date of purchase.

If within the period of the foregoing warranty PerTronix finds, after inspection, that the product or any component thereof is defective,

PerTronix will, at its option, repair such products or component or replace them with identical or similar parts PROVIDED that within such

period Purchaser:

Promptly notifies PerTronix, in writing, of such defects. Delivers the defective product or component to PerTronix (Attn: Warranty)

with proof of purchase date; and Has installed and used the product in a normal and proper manner, consistent with PerTronix printed

instructions

THE FOREGOING LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER

EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE.

THE FURNISHING OF A REPAIR OR REPLACEMENT COMPONENT OR COMPONENTS SHALL CONSTITUTE THE

SOLE REMEDY OF PURCHASER AND THE SOLE LIABILITY OF PerTronix WHETHER ON WARRANTY, CONTRACT OR

FOR NEGLIGENCE, AND IN NO EVENT WILL PerTronix BE LIABLE FOR MONEY DAMAGES WHETHER DIRECT OR

CONSEQUENTIAL.
