Dishwasher
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Blomberg GSN 9580 A

Summary of Contents for Blomberg GSN 9580 A

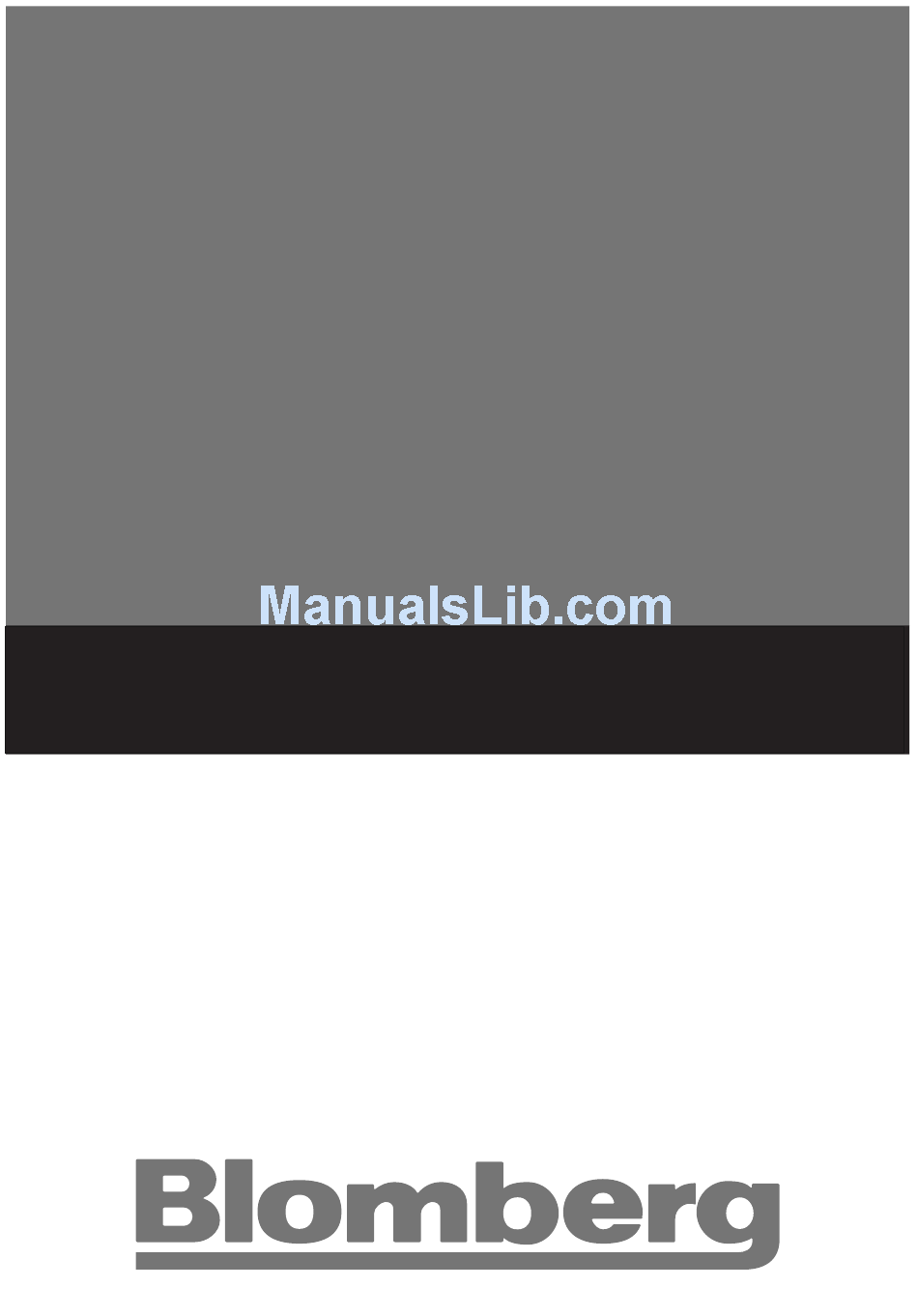

  • Page 1 Dishwasher Instruction Manual...
  • Page 2 Dear customer, Please read carefully right through this instruction booklet before installing or operating your dishwasher. The following instructions should prevent the risk of personal injury and/or damage to the appliance. Please keep these documents in a safe place for later reference. This operating manual has been written for several different machines, and some of the features mentioned here may not apply to your particular model.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 Getting To Know Your 5 Program Selection and Machine Operating Your Machine View of the Machine Buttons Technical Specifications Auxiliary Functions Starting Your Machine Program Selection 2 Safety Instructions Adding Auxiliary Functions Before Installation to the Program Before First Use Changing a Program Child Safety...

  • Page 4: Getting To Know Your Machine

    Getting To Know Your Machine View of the Machine Upper dish basket with shelf Guide rail for the upper dish basket Salt container Cutlery basket Detergent dispenser Door Control panel Filters Lower sprayer arm 10. Lower basket 11. Upper sprayer arm 12.

  • Page 5: Technical Specifications

    Technical Specifications Because we continually strive to improve our products, we may change Permitted water pressure: 0,3 –10 our specifications and designs without bar (= 3 – 100 N/cm² = 0,01-1,0Mpa) prior notice. Electrical connection: 220-240 Volts, 10 Amps (see type plate) Note for Testing Institutes Output: 1900-2200 W The necessary information for...

  • Page 6: For Daily Operation

     mouth and throat. Please note the Do not pull on the cable – pull on safety instructions provided by the the plug. Turn off the water supply manufacturers of the detergents. tap.  Never leave children unsupervised while the appliance is open, as What should not be washed in the appliance may still contain your dishwasher...

  • Page 7: Directions For Assembly

    Directions for Assembly Safety notes for installation Installing Your Dishwasher  Prior to installing and using your Choose a suitable location for your appliance, please check it for possible dishwasher. Take care to ensure transit damage. that the appliance is stable on a level surface.

  • Page 8: Water Connection

    Water connection tap with a ¾ inch external thread. If  required, use a filter insert to filter There are two different types of deposits from the pipes. water inlet hoses: - Cold water inlet hose (up to Check that the connection does not 25°C) leak.

  • Page 9: Water Drainage

    Water drainage Extension hoses If a hose extension is required, a Connecting the drainage hose. drainage hose of equal quality must be used. Take care to ensure that the drainage hose is not bent or squeezed. The maximum length must not exceed 4m.

  • Page 10: Using Your Dishwasher

    Warning the product, it’s packaging or in the Packaging materials may be manual. dangerous to children.Reusable substances may be dropped off at your Materials used are recyclable local disposal facilities. You may obtain according to their labelling. Reuse, further information from your local recycling of materials and further authorities and disposal facilities.

  • Page 11: When Operating For The First Time

    When operating for the first time: Pour 1 litre of water into the salt container (Fig. C). Pour the salt into the container with the aid of the salt funnel provided (Fig. D). Pour in enough salt to fill the container. The container holds approx.

  • Page 12: Filling The Rinse Aid Dispenser

    Filling the Rinse Aid Dispenser Rinse aids allow washing water to rinse off more cleanly and prevent watermarks or streaks on the dishes. Only use rinse aid designed for use in dishwashers. Note 1013 If you use “2 in 1” or “3 in 1“ detergents / tablets, you do not need an additional rinse aid.

  • Page 13: Detergent

    Detergent When the dishwasher is fully loaded and the dishes are very dirty, we Please use detergents produced recommend filling the detergent specially for the dishwashers in your container up to the 25 cm³ mark. When machine. the dishes are less dirty, it is generally sufficient to fill the detergent up to the Keep the opened detergent packages 15 cm³...

  • Page 14: Multipurpose Detergents

    Multipurpose Detergents Make sure that salt and rinse aid compartments are full. The best washing results in dishwashers is obtained by using Set the water hardness to its highest detergent, rinse aid and water degree and perform an empty run. softening salt individually.

  • Page 15: Suggestions For Loading The Dishwasher

    Attention 4 folding plate support rods Knives and other utensils with sharp (depending on the model) tips and edges must be placed There are four separate “folding plate horizontally into the upper basket due support rods” in the lower basket of to risk of injury.
  • Page 16 2 folding plate support rods (depending on the model) There are two separate “folding plate support rods” in the lower basket of your dishwasher designed to allow you more space to accommodate saucepans and large bowls in the lower basket. You can either fold each section (1, 2) individually or, all at once, to create a large empty space.
  • Page 17 Variable cutlery basket (depending on the model) The variable cutlery basket can be separated into 3 parts depending on the amount of cutlery and the degree of dirtiness. Small cutlery basket sections also fit into the upper basket. To do this, turn the lock on the handle to the right (A).
  • Page 18 Movable Cutlery Basket (depends on some models) Designed to allow free placement of the dishes according to their size, the movable cutlery basket can slide over the tines to the left (A) and right (B) side. 16 GB...
  • Page 19 Basket insert with variable height settings (depending on some models) You can also use this insert in the lower basket for glasses and long- handled cutlery / utensils. If you do not need the insert, fold the rack upwards at the angle shown (A). Push the entire insert upwards (B).

  • Page 20: Loading Suggestions

    Loading suggestions Load the upper basket with dessert 1027 plates, cups, glasses etc. Upper basket with variable height setting (depends on some models) The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the 1021 dishwasher, even if it is fully loaded.
  • Page 21 Upper basket with variable height setting (depends on some models) The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the dishwasher, even if it is fully loaded. The height of the upper basket was set to its lowest position at the factory.
  • Page 22 Height setting with empty basket (depends on the model) In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights. Release the latches on both the right and left tracks of the upper basket by 1022 pushing them outwards (C).

  • Page 23: Removable 3Rd Basket

    Removable 3rd basket (depends on the model) The Removable 3rd basket is designed for small dishes, or long dishes that cannot fit into the cutlery basket. Thanks to the easy take-out feature, it allows removing the dishes from the machine together with the basket after washing operation.
  • Page 24 Glass Support (depends on the model) When placing the glasses or goblets with a long grip, lean them against the glass support, the edge of the basket or the shelf but not against the other pieces. Do not lean the long glasses against each other, otherwise they do not remain stable during washing cycle 1025...

  • Page 25: Program Selection And Operating Your Machine

    Program Selection and Operating Your Machine On/Off Button Time Delay Button Display Confirmation Button Start/Pause/Cancel Button Selection Buttons ( > - < ) Function Button Handle Screen Information Line 17. Program Steps Follow-up Indicator a) Prewash Step 10. Rinse Agent Indicator 11.

  • Page 26: Buttons

    Buttons Tablet Deterg. Function (16) This feature provides better drying On / Off Button (1) performance with the multi-purpose When this button is set to on position, detergents such as 3in1, 4in1, 5in1, the display switches on with the last all in one, etc., depending on the program used, and when it is set to off hardness level of the supply water.

  • Page 27: Program Selection

    Program Selection the machine by pressing Start/Pause/ Cancel Button (3) if you have to open the You can select the desired program door. Pause ( ) Indicator will appear on after turning on the machine by the display. Then, open the door. There pressing the On/Off button.
  • Page 28 the dishes to be washed. These functions are provided in order to enable you to save time, water and energy and to obtain more comfortable washing results. For example, if you think that your dishes are lightly soiled, you can make the washing program more economical and save time and water thanks to the Quick Function (13).

  • Page 29: Changing A Program

    Quick and Silent Functions cannot operation from the step in the previous be selected concurrently. If the other program (For example, if the previous function is selected when either of program was in rinsing step, the new one these functions is already selected, will also start from the rinsing step).
  • Page 30 There are 10 different language options in the Language Selection menu. “Settings Menu...X” will appear on the display, where X indicates the time (in seconds) during which the buttons need to be kept pressed. You need to adjust the Water Hardness After entering into the Settings level to one of the following values menu, press Function Button (4) to...

  • Page 31: Scheduling The Washing Time

    Display mode menu contains Eco and starts. The selected program must not Nrmal options. If you select Eco, your be started in order to be able to set the dishwasher will decrease the screen delay time. brightness automatically after a while Press Time Delay Button (5) to enter and save energy.

  • Page 32: Canceling A Program

    After the countdown stops, you can WARNING: change the washing program and There might be residues of detergent add or remove auxiliary functions as or rinse agent in the machine and/or on described in Program Selection and the pieces already washed depending Adding Auxiliary Functions to the on the step the cancelled program was Program sections.

  • Page 33: Child (Key) Lock

    Warning Messages If you did not turn of the audio signal of your dishwasher by setting the Volume Your machine will give you some to 0, then it will warn you with the important feedbacks while it is running. melody you have selected. You may mute the audio warning by pressing any button except the “Start/Pause/ Cancel”...

  • Page 34: Salt Indicator

    Salt Indicator Please check the salt indicator on the display to see whether there is adequate amount of softening salt in the dishwasher or not. You need to refill the salt reservoir with salt whenever the no salt warning indicator appears on the display of your machine.
  • Page 35 33 GB...

  • Page 36: How To Clean Your Dishwasher

    How to clean your dishwasher Cleaning your machine at regular Warning intervals ensures longer product life Do not operate your dishwasher and reduces the risk of reccurring without a filter. Ensure that your filters problems. are correctly installed. Clean the filters regularly.

  • Page 37: Cleaning The Spray Arms

    Cleaning the filter inset in the water inlet hose (depending on the model) Dirt from deposits in the water pipes is prevented by a filter in the water inlet hose. Check the filter and the water inlet from time to time. Close the water tap and unscrew the water inlet hose.

  • Page 38: Troubleshooting

    Troubleshooting: What to do if the dishwasher will not run  Check that the mains plug is properly connected.  Are all fuses working?  Is the water supply fully turned on?  Is the dishwasher door closed firmly?  Have you pressed the On/Off button? ...
  • Page 39 Inadequate rinse aid  Increase rinse aid setting or add rinse aid into rinse aid compartment. Unsealed detergent dispenser lid  Always ensure that the detergent compartment lid is closed tightly after every detergent filling process. Drying Disorderly placement  Load your dishes as described in the manual.
  • Page 40 1035 Lime Stains, Hazy Look Inadequate rinse aid  Increase rinse aid setting or add rinse aid into rinse aid compartment. Insufficient water softening  In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.
  • Page 41 1041 Scratch / Break In Glassware Kitchenware containing Aluminum  Kitchenware that contains aluminum should not be washed in dishwashers. Salt leakage*  Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine.
  • Page 42 1038 Detergent Remains In The Detergent Dispenser Damp detergent compartment  Make sure that the detergent dispenser is well dried prior to filling it with detergent. Putting detergent in the detergent dispenser long before washing  Take care that detergent is put shortly before startup of washing. Preventing opening of detergent dispenser lid during washing ...

  • Page 43: Service

    close the door of the machine. Every other day, perform washing without detergent in the shortest program for products with program selecting feature. 1042 Foam Loading the dishes into the dishwasher without completely drying after washing them with hand-wash detergent. ...
  • Page 44 17 7111 01 00-02-C4...
