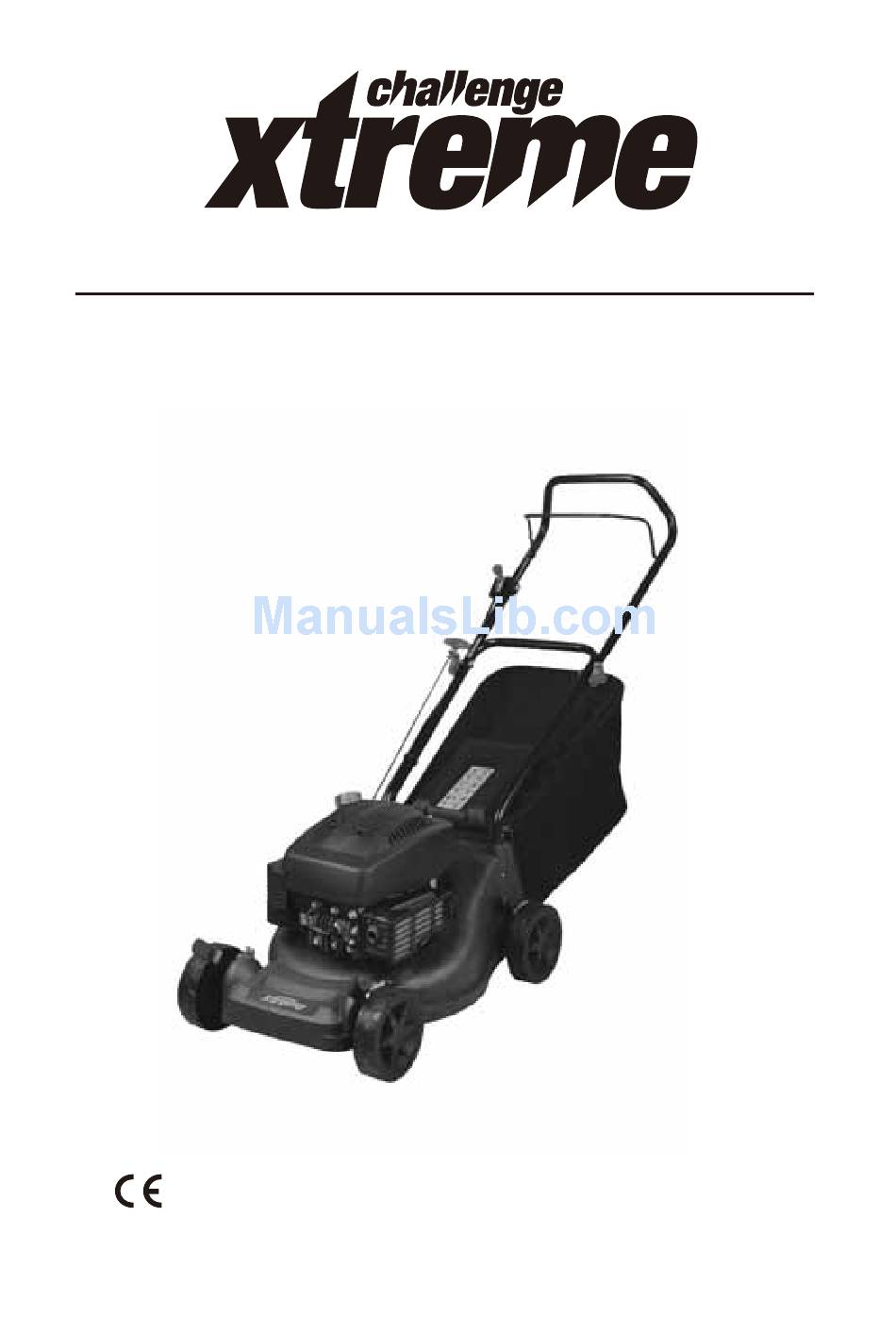

- Page 1 PETROL LAWN MOWER Cat.No.:7304778 XSS40A OPERATING INSTRUCTION HELPLINE NO 08454505299 Open 7 Days a Week Email Address: customerservices@sumec-uk.com Website: www.sumecservicecentre.co.uk...
-
Page 2: General Power Tool Safety Warnings
ORIGINAL INSTRUCTIONS GENERAL POWER TOOL c) WARNING – Petrol is highly flammable SAFETY WARNINGS - store fuel in containers specifically designed for this purpose. WARNING!Read all safety - refuel outdoors only and do not smoke warnings and all instructions. while refueling; Failure to follow the warnings and - add fuel before starting the engine. - Page 3 ORIGINAL INSTRUCTIONS defective guards, or without safety devices, for example deflectors and/or grass b) never store the equipment with fuel in catchers, in place. the petrol tank, inside a building where fumes l) do not change the engine governor can reach an open flame or spark. settings or overspeed the engine.
- Page 4 ORIGINAL INSTRUCTIONS SYMBOLS Read instruction handbook before operation this machine Keep bystanders away. Beware of sharp blades - remove spark plug lead before mainte- nance No naked flames Appropriate ear, eye, and head protection must be worn. Hot surfaces will burn fingers or palms Warning! The lawnmower exhaust gas contain toxic substances.
-
Page 5: Component List
ORIGINAL INSTRUCTIONS Component list 1. upper handle 2. stop / start bar 3. throttle lever 4. starting knob 5. Rope guide 6. lower handle 7. fuel filler cap 8. height adjustment knob 9. spark plug 10. oil dipstick 11. rear flap 12. -
Page 6: Technical Specifications
ORIGINAL INSTRUCTIONS TECHNICAL SPECIFICATIONS Engine displacement: 149.3cc Engine max. power: 2.1kW / 3600 rpm Engine speed: 2900rpm Cutting width: 40cm Grass bag capacity: 45L Ignition: T.C.I : 0.8L Fuel tank capacity : 0.6L Oil tank capacity Sound pressure level: 85dB(A) Sound power le vel: 96dB(A) Vibration: 3.7m/s Weight: 21kg... - Page 7 ORIGINAL INSTRUCTIONS ASSEMBLY 2. INSTALL THE GRASS COLLECTION (Fig. C) WARNING! Two men are required Firstly assembly the grass bag to the frame by to take the lawn mover out of fixing all plastic hooks. carton. Make sure that you have Raise the safety fl...
- Page 8 ORIGINAL INSTRUCTIONS OPERATION INSTRUCTION 1. Before starting the engine CAUTION! The following procedures and adjustments must be performed before the engine is started. Do not attempt to make any of these adjustments while the engine is running. 2. Oil Type Always use high quality detergent oil classifi...
- Page 9 ORIGINAL INSTRUCTIONS petrol before starting the engine. 4) Tighten the filler cap securely after filling. Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refueled or where petrol is stored.
- Page 10 ORIGINAL INSTRUCTIONS 9. Mowing Clear a fl ooded engine Always observe the strictest If the engine won’t start after you safety procedures when using the operated the starter several times, the lawnmower. engine may be fl ooded with excess fuel. Carefully read the safety instructions Use following procedure to clear and of this manual before using the...
-
Page 11: Maintenance
ORIGINAL INSTRUCTIONS 2). To maintain safety, the discharge 1)You will need garden gloves (not fl ap will close back to cover the rear provided) and a spanner wrench to remove the blade. discharge chute, when you release the fl ap. 2)Hold the blade and unscrew the blade 3). - Page 12 ORIGINAL INSTRUCTIONS 2. Spark plug (Fig.H) 4. Changing the oil 1) Once the engine has cooled, remove Tilt the lawnmower towards the oil filler, the spark plug using the socket spanner have a container ready to catch the oil and supplied.
- Page 13 ORIGINAL INSTRUCTIONS Fig.N A slightly worn blade may be re- Dispose of excess petrol in an environmentally sharpened. Both blade edges must be safe way. Your local recycling centre can advise sharpened equally to ensure balance. you on the best method of disposal. Make sure Sharpen the blade every 25 mowing the lawnmower has been thoroughly cleaned hours or more frequently if conditions...
-
Page 14: Troubleshooting
ORIGINAL INSTRUCTIONS TROUBLE SHOOTING PROBLEM POSSIBLE FAULT REMEDY Engine will not turn Engine stop / start bar Operate engine stop / start lever. over released. Incorrect oil level. Check oil level. Obstruction under deck. Remove obstruction. Engine smokes Excess oil level. Check oil level. - Page 15 ORIGINAL INSTRUCTIONS Engine vibrates Mounting bolts loose. Tighten bolts excessively Blade bolt loose. Tighten bolt Blade out of balance. Balance blade Bent crankshaft. Consult your dealer Uneven cut Undulating ground Change direction of travel conditions Blade worn Sharpen the blade Blade out of balance Balance the blade Wheels / roller damaged...
-
Page 16: Ec Declaration Of Conformity
HOME RETAIL GROUP EC DECLARATION OF CONFORMITY Home Retail Group, Avebury, Milton Keynes, MK9 2NW declare that the product XSS40A PETROL LAWN MOWER Function: Mowing grass Complies with the requirements of the following directives: 2006/42/EC - Machinery Directive 2004/108/EC - EMC Directive...
