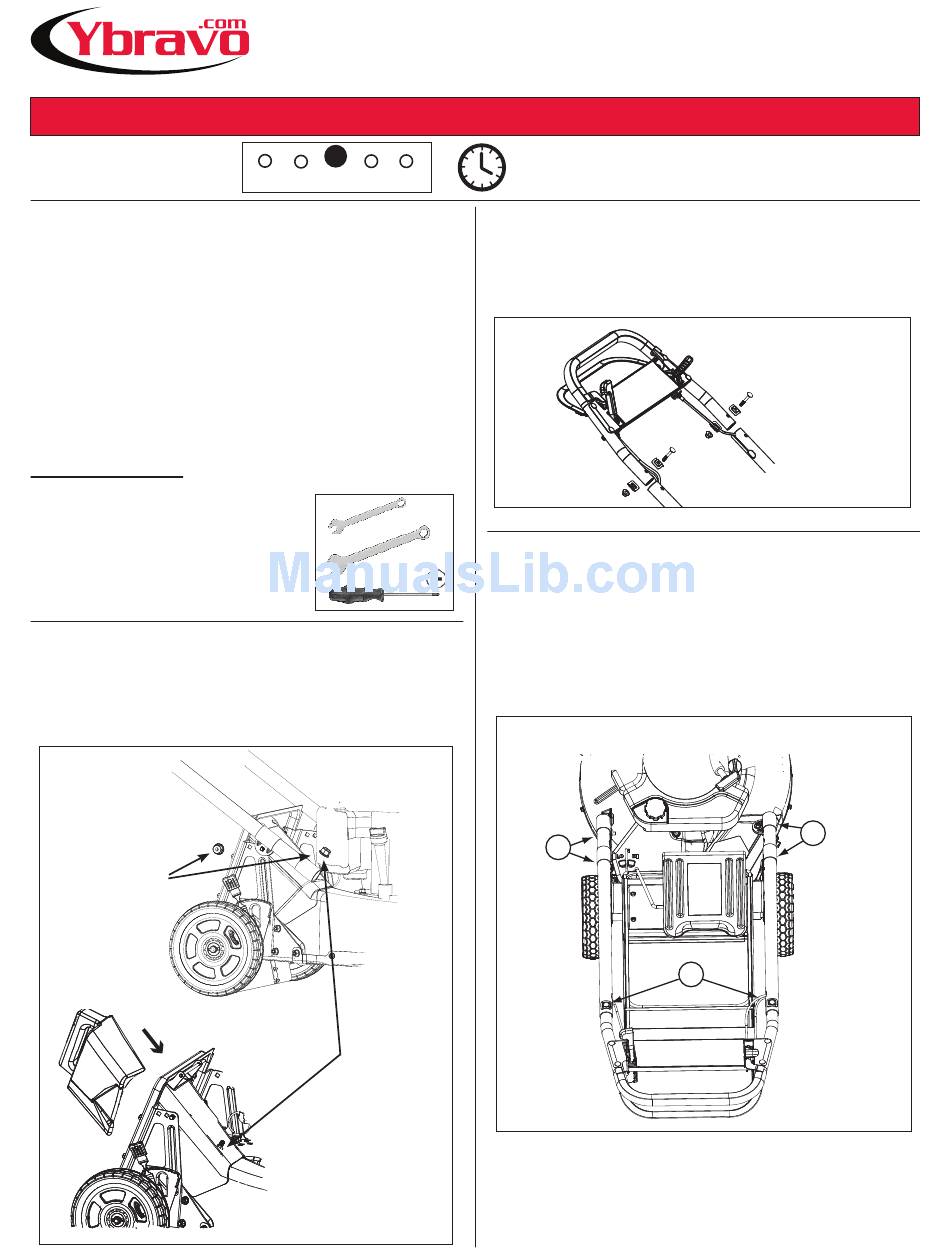

Ybravo BRAVO 21 Assembly Manual

SERVICE TIPS
DIFFICULTY LEVEL - 3
UNPACKING:
Carefully remove the machine from its packaging and check that
you have the following items:
Upper Handle complete
(2) Lower Handle tubes
Mower Bag and Mulch Plug (installed on the mower)
Tool kit
Honda engine Owner's Manual
Bravo 21 Operator's Manual.
NOTICE:
If you are missing any of these items or if you are unsure
of how to properly assemble this mower please contact:
service@ybravo.com by e-mail or by phone: 1.888.ybravo.1
(1.888.927.2861)
Tools needed for assembly:
10mm wrench
13mm wrench
Philips screwdriver
STEP 1
Install the red handle tubes to the mower with the M8 carriage
screws. Do not tighten the nuts. There are three holes for the
upper clamp to enable height adjustment. A good starting point
is the middle hole for a medium height setting.
nstall the nuts finger
I
tight. Tighten com-
pletely in step 3.
1 2 3 4 5
Journeyman
Novice
10mm
13mm
Install the right side front
screw and insert the
mulch plug to hold the
screw during installation.
BRAVO 21 ASSEMBLY
BBC version
Before working - always follow all
15 to 25 Min
instructions and warnings described in
the Operator's Manuals for this mower.
STEP 2
Slide the upper handle assembly into the two lower tubes.
Insert the two carriage screws and use one square washer on
each side of the handle tube.
STEP 3
To simplify the alignment of the handle, install the grass catcher.
Tighten the screws in the following order:
1 - Tighten the two screws on the right side tube clamps
2 - Align the left tube with the catcher (same as the right side)
and tighten the lower clamps.
3 - Tighten the upper screws that attaches the handle assembly
to the tubes.
2
Updated: 08/2009
1
3
