Rating:
Amperes:
RPM:
Collets:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665 Monday – Friday from 9am to 5pm Eastern Standard Time
Technical questions
Replacement parts
Parts missing from package
Manufactured For and Distributed By
®
True Value
Company, Chicago, IL
©2014 True Value Company
Made in China
PRODUCT SPECIFICATIONS
120 V, 60 Hz AC
1.5 A
0–35,000 RPM (no load)
1/16", 3/32" & 1/8"
1 lb 6 oz (0.62 kg)

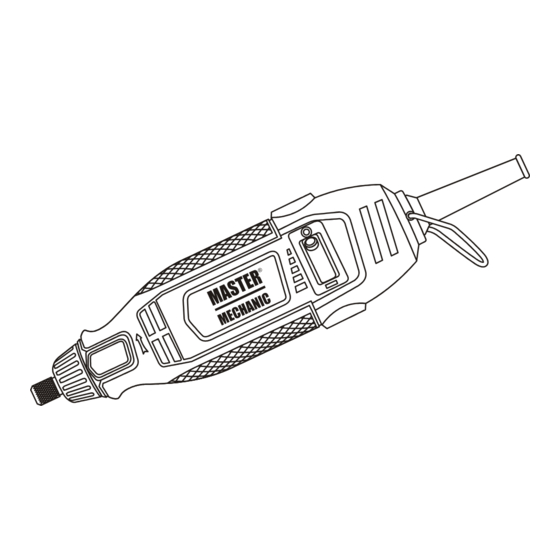

1.5 A ROTARY TOOL
Owner's Manual
181683
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for master mechanic 181683
Summary of Contents for master mechanic 181683
-
Page 1: Product Specifications
1.5 A ROTARY TOOL 181683 Owner’s Manual PRODUCT SPECIFICATIONS Rating: 120 V, 60 Hz AC Amperes: 1.5 A RPM: 0–35,000 RPM (no load) Collets: 1/16", 3/32" & 1/8" Weight: 1 lb 6 oz (0.62 kg) Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 Monday –... -
Page 2: Table Of Contents
CALIFORNIA PROP 65 WARNING Warning: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are: ... -
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product. -
Page 4: Eye, Ear, & Lung Protection
GENERAL SAFETY WARNINGS ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA REQUIREMENTS or ANSI SAFETY STANDARD Z87.1 FLYING DEBRIS can cause permanent eye damage. Prescription eyeglasses ARE NOT a replacement for proper eye protection. Non-compliant eyewear can cause serious injury if broken during the operation of a power tool. -
Page 5: Electrical Safety
POWER TOOL SAFETY When operating a power tool outdoors, use WARNING: Read all safety warnings an extension cord suitable for outdoor use. and instructions. Failure to follow the warnings Use of a cord suitable for outdoor use reduces and instructions may result in electric shock, fire the risk of electric shock. -
Page 6: Power Tools Use And Care
POWER TOOL SAFETY If devices are provided for the connection of Maintain power tools. Check for dust extraction and collection facilities, misalignment or binding of moving parts, ensure these are connected and properly breakage of parts and any other condition that may affect the power tool’s operation. - Page 7 SPECIFIC SAFETY RULES WARNING: Always wear safety goggles and dust mask. Know your rotary tool. Do Use only in well-ventilated area. Using not plug the tool into the power source until personal safety devices and working in a safe you have read and understand this Instruction Manual.
-
Page 8: Extension Cord Safety
EXTENSION CORD SAFETY WARNING: Keep the extension cord MINIMUM GAUGE (AWG) clear of the working area. Position the cord EXTENSION CORDS (120 V use only) so it will not get caught on the workpiece, Amperage tools or any other obstructions while you are rating Total length working with the power tool. -
Page 9: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the impact driver. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes No load speed Hertz Alternating or direct... -
Page 10: Know Your Rotary Tool
KNOW YOUR ROTARY TOOL ON/OFF switch & speed control Spindle lock button Hanging loop Collet nut Air vents Umbrella ACCESSORIES Illustration Description Shape Cut-off wheel 15/16" Sanding disc 3/4" Round 1/2" Diameter Drum sander 1/8" Shank 1/2” Sanding band Felt polishing wheel 1"... -
Page 11: Accessories
ACCESSORIES Illustration Description Shape Assorted Grinding stones Assorted Brass brush 1/4" Axial Brass brush 7/8" Radial Bristle brush 1/4" Axial Bristle brush 7/8" Radial Diamond bit 5/64" Taper Diamond bit 5/64" Ball Diamond bit Cylinder Multi-purpose bit 1/8" Cylinder Screw mandrel 1/8"... -
Page 12: Accessory Description & Use
ACCESSORY DESCRIPTION & USE There are many different types of accessories that can be used with this rotary tool. The following charts identify the most popular accessories and their uses. NOTE: Please see the accessory case contents on Pages 12 & 13 to identify the accessories that are included with this rotary tool. -
Page 13: Accessory Description & Use
ACCESSORY DESCRIPTION & USE Accessory Description Accessory Use Optional rotary accessories – Not Included Multi-purpose drill bit Cuts wood, plastic, fiberglass, drywall, laminate and aluminum and vinyl siding. Diamond point Great for cutting, sawing and carving of hard materials such as marble, concrete, brick, porcelain, ceramics, hard epoxy and soft and hard wood. -
Page 14: Assembly And Operating
ASSEMBLY AND OPERATING ON/OFF & SPEED CONTROL SWITCH While holding the spindle lock button down, turn the collet nut counter clockwise until it Both the ON/OFF and speed control functions is removed. are controlled by one switch (1) located on the top of the tool (Fig. -
Page 15: Selecting Proper Speeds
ASSEMBLY AND OPERATING INSTALLING ACCESSORIES – cont`d SELECTING PROPER SPEEDS Different speeds are required depending upon Press the spindle lock button and engage it the type of operation being performed. The in the spindle. While holding the spindle following chart outlines those basic speeds: lock button down, hand-tighten the collet by turning it clockwise. -
Page 16: Maintenance
MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. Use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 17: Exploded View
EXPLODED VIEW... -
Page 18: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the rotary tool. Any attempt to repair or replace electrical parts on this rotary tool may create a safety hazard unless repairs are performed by a qualified technician. -
Page 19: Warranty
3-Year Limited Warranty: This product is warranted for 3 years against any defects in material and workmanship. If defective the product will be repaired or replaced free of charge. Simply provide proof of purchase and return the tool to your place of purchase.
