Imagine 920
DALI, S-Dim, DMX Network Router

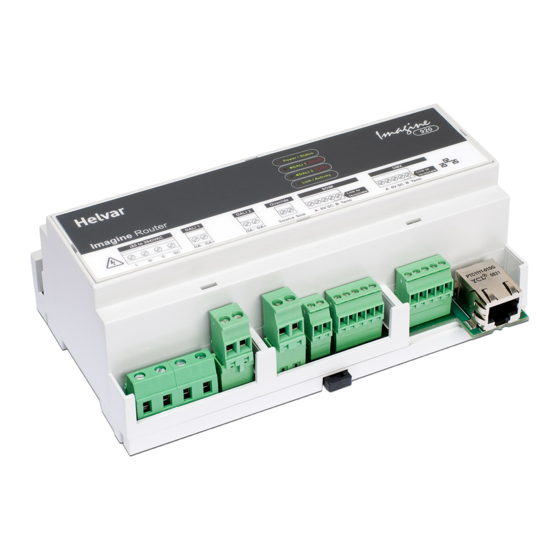

The 920 Imagine Router uses an Ethernet connection
(10/100 Mbps) as a network backbone, to combine Digidim/DALI
and S-DIM networks seamlessly together. Basic functionality is
available 'out-of-box' without any programming.
Helvar's Designer software allows for advanced configuration
and functional programming of the router. The system provides
energy saving features via presence detection and constant
light functionality. Further automation can be achieved through
scheduled events. OPC server software enables interfacing to
Building Management Systems (BMS).
A PC can be connected to the system for diagnostics and logging
purposes, if required, but all data is stored within the system itself
so there is no need for PC control in daily operation. The elimination
of a central controller ensures no single point of failure can cause a
total system shutdown.

Key Features

Each router supports a total of 128 DALI devices
(64 devices on each subnet)
250 mA power supply for each DALI subnet
Up to 100 routers may be networked together
Up to 12,800 DALI devices (16,000 groups) on a router system
Industry standard protocols (TCP/IP and DALI)
Built-in real-time clock
Universal supply input
Up to 252 S-DIM addresses
Up to 252 DMX addresses 'In' or 'Out'

Installation Notes

For installation in a restricted access location only
Isolate the mains supply before installation
The external mains supply must be protected.
External protection must not exceed 6 A MCB
All DALI and Mains cabling must be 230 V mains rated
Keep Mains and DALI wiring separate from Ethernet, SDIM and
DMX cables
Install the unit horizontally to allow for heat dissipation
Any enclosure must provide adequate cooling ventilation
Please refer to the 920 Imagine Router Installation Guide
Helvar Imagine Router 920: Datasheet
Imagine Router
(85 to 264 VAC)
Dali 1
Dali 2
Override
L
L
N
N
E
E
SC
SC
DA- DA+
DA- DA+
Source Sink

Installation

AC
DALI 1
DMX
Imagine
Imagine
Power / Status
920
920
DALI 2
DMX
Link / Activity
SDIM
DMX
Link to
Link to
terminate
terminate
A 0V SC B Term
A 0V SC B Term
