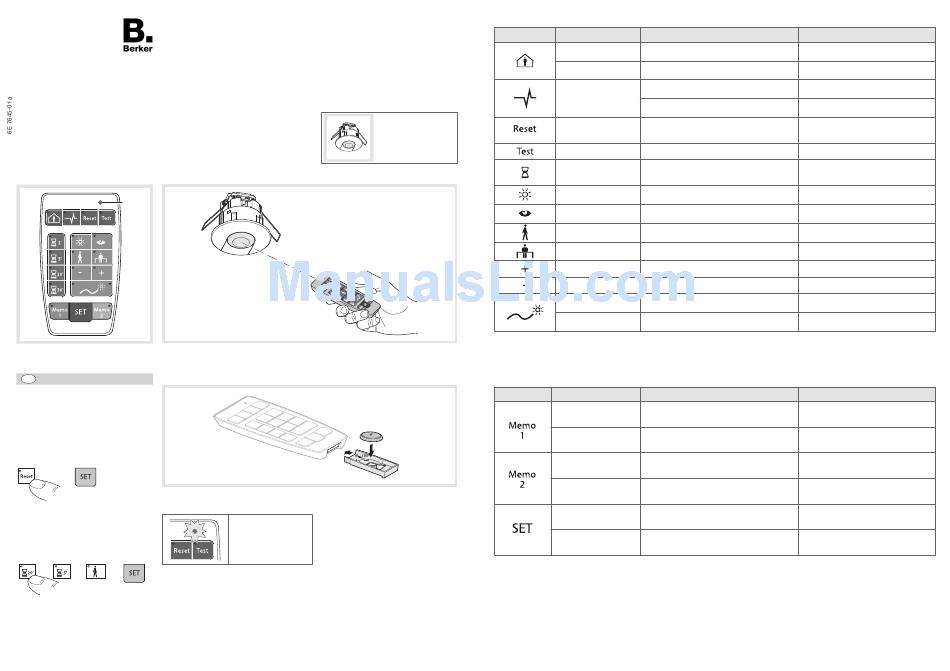

Berker 7590 40 02 Operating Instructions

Operation instructions
IR configuration hand-held
transmitter for presence
detector
Order no. 7590 40 02
§ Æ
Description Use
LED
Battery replacement
GB
The remote control allows the user to set or
modify settings on the presence detectors
1701 06, 1701 07, 7524 10 01, 7524 10 02.
when the potentiometer is on "auto test". It
allows single and multiple settings.
The SET key is used to send the IR messages
to the occupancy sensors. Multiple settings
can be stored in Memo 1 and Memo 2 and
recalled to set several devices.
Single setting
Example:
do a reset.
+
Multiple settings
Define the parameters to be changed and
press SET to send.
Example: for 25 minutes and corridor use,
press 20', 5' and corridor.
+ + +
In the case of 2 opposite states the green LED
denotes ON and the red LED denotes OFF
(except Presence/ Absence).
When no function is selected all LED's are
OFF.
1
Berker GmbH & Co. KG
Klagebach 38
58579 Schalksmühle/Germany
Telefon: + 49 (0) 23 55/90 5-0
Telefax: + 49 (0) 23 55/90 5-111
www.berker.com
Presence detectors
09/2011
97-75904-002
Technical specifications
The acknowledgment LED
Power supply : 1x 3V CR2032
blinks during the sending
Shelf life of battery : 2,5 years
of the IR message.
Protection index : IP 30
Settings available
Key Meaning
Presence
Absence
Power Up
Reset
1701 06
1701 07
7524 10 01
Test
7524 10 02
Time
Day level
1000 Lux
Learn
Corridor
200 Lux
Office
400 Lux
Lux +
Lux –
Active cell
Passive cell
Memo and SET keys
Key Meaning
Press
Long press
Press
Long press
Short press (<5s)
Long press (>5s but <10s)
only available if no setting
active.
Indication Function
Green LED on Presence on (automatic mode).
Red LED on Absence on (semi automatic mode).
Green LED on The light is automatically switched ON for
30 s after power up.
Red LED on During warm up phase, the light output is off.
LED on To return to factory settings
(Lux = 400, time = 20min., presence on,
power up off and cell active).
LED on To validate the detection area
LED on To set the time.
It is possible to add times
Ex.: press 2' and 5', time value is 7'.
LED on To set the value on 1000 Lux
LED on To learn the current Lux level
LED on To set the value on 200 Lux
LED on To set the value on 400 Lux
LED on To increase the Lux level (+100)
LED on To decrease the Lux level (-100)
Green LED on The light is continuously measured.
Red LED on The product doesn't switch the light off even
if the ambient luminosity is sufficient.
Indication Function
LED is on until a setting is changed. To load/unload Memo 1.
LED is on during 5s., then blinks until release press. To save the current setting as Memo 1.
After release, the LED goes off in case of setting
change.
LED is on until a setting is changed. To load/unload Memo 2.
LED is on during 5s., then blinks until release press. To save the current setting as Memo 2.
After release, the LED goes off in case of setting
change.
LED flashes. To send an IR message of the current setting.
LED blinks until release press. To toggle addressing mode on DALI/DSI
detectors (1701 07, 7524 10 02).
Warranty
We reserve the right to make technical and
formal changes to the product in the interest of
technical progress.
Our products are under guarantee within the
scope of the statutory provisions.
If you have a warranty claim, please contact
the point of sale or ship the device postage
free with a description of the fault to the
appropriate regional representative.
