Summary of Contents for Tutti Bambini ARLO

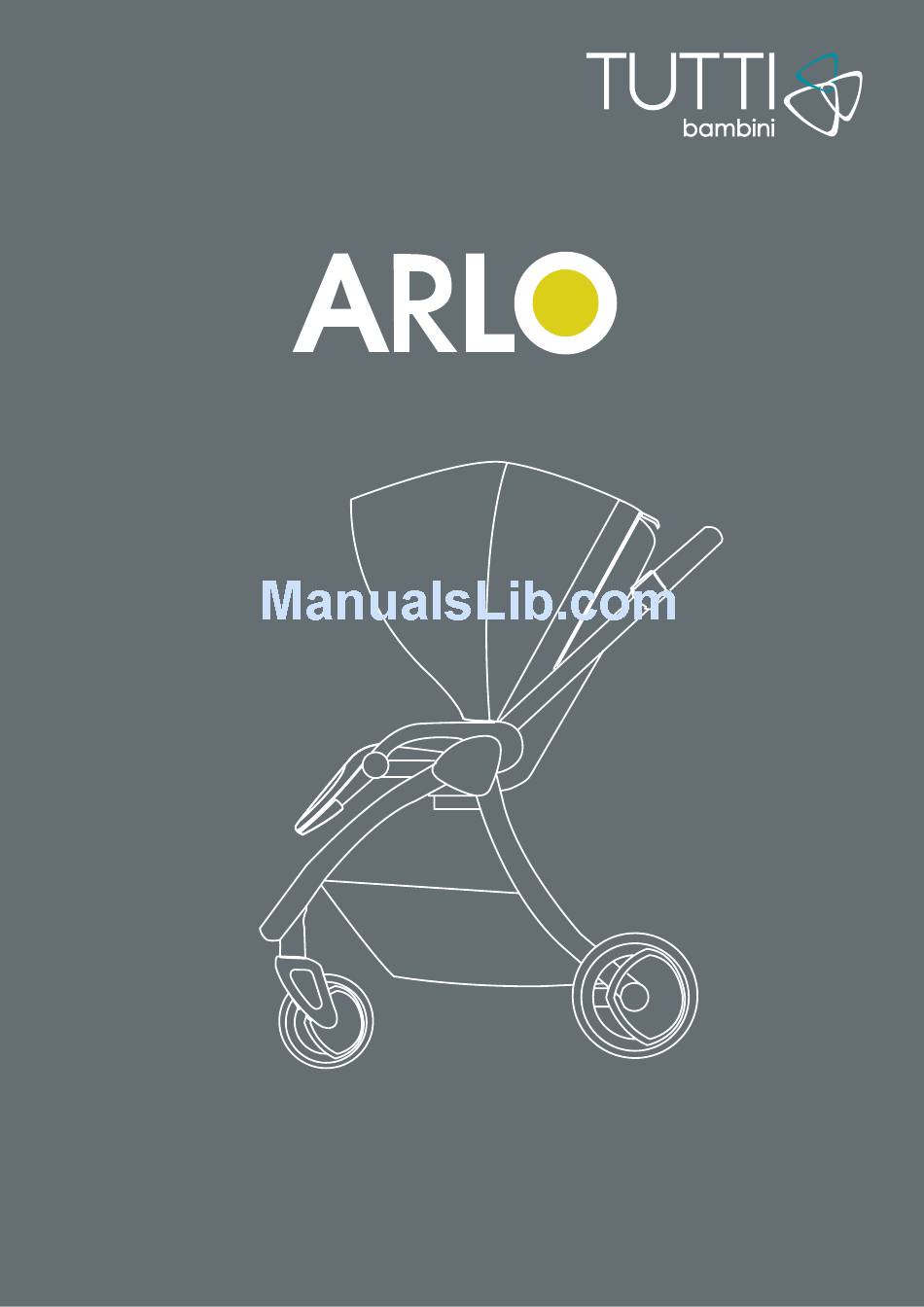

- Page 1 ® Assembly Instructions...
- Page 2 WARNING: A child’s safety is your responsibility. for your baby. WARNING: Ensure that all locking devices are engaged before use. Please take a few moments to read this guide on how to use the ARLO correctly so you ® WARNING: Children should be harnessed in at all times.
-
Page 3: Table Of Contents
Parts List Contents Chassis Fitting/removing the front wheels Opening the chassis Operating the parking brake Operating the front swivel wheel Adjusting the handle height Chassis Folding the chassis • 2 x Front swivel wheels Seat Unit • 2 x Rear wheels •... -
Page 4: Chassis
Chassis Chassis 1. Fitting/removing the front wheels Pull the release catch outwards to release the handle. Press the metal pins of the front wheels into the designated holes at the front of the chassis until they click into place. There is no left and right. Check the wheels are secure by pulling down on them. -
Page 5: Operating The Parking Brake
7. Folding the chassis Press downwards on the parking brake pedal with Note: The Arlo chassis can fold with the seat in a forward and rear facing position, but it is your foot to activate the parking brake. Flick the pedal... - Page 6 Chassis Chassis Pull the handle forwards until it sits on the front half The release catch will lock into place. of the chassis. Hold the twisting handle in your right hand and pull the secondary lock inwards with your thumb. Then twist the handle forwards.
-
Page 7: Seat Unit
Seat Unit Seat Unit 1. Fitting the seat unit to the chassis 4. Using the 5 point safety harness Insert the seat unit connectors into the main To release the 5 point safety harness, press the housing on the chassis, until it clicks into place. central button on the buckle housing. -
Page 8: Fitting The Seat Unit Hood (Sold Separately)
Seat Unit Seat Unit 6. Fitting the seat unit hood Secure the seat liner to the seat unit by fastening the (sold separately) press studs at the top of the seat liner, and to the back rest and seat (via the gap between the two). Align the back of the pushchair hood to the back of the seat unit, and push the seat adjustment handle through the hole in the hood. -
Page 9: Carrycot (Sold Separately)
Carrycot (Sold Separately) Carrycot (Sold Separately) 1. Assembling the carrycot 3. Fitting the carrycot apron (sold separately) Remove the mattress and lining to gain access to the assembly bars at the bottom of the carrycot. Zip the carrycot apron onto the zip on the Using the tabs provided, pull the bars until they carrycot and pull all the way around. -
Page 10: Removing The Carrycot From The Chassis
Carrycot (Sold Separately) Car Seat (Sold Separately) 5. Removing the carrycot from 1. Fitting the car seat to the chassis the chassis First place the car seat adapters (supplied with the car seat) onto the chassis, with the arrows facing Press the two buttons on the carrycot the direction that you want to place the car seat. -
Page 11: Tandem Mode
Tandem Mode 1. Tandem Modes Lift the car seat upwards from the handle. WARNING: Only ever use the ARLO in the combinations shown. Squeeze the grey handles on the car seat adapt- ers and lift the car seat upwards. Note: the car seat adapters will need to be removed to lay the car seat on a flat surface. -
Page 12: Fitting/Removing Tandem Seat Unit (Sold Separately)
The second seat fits in the lower position • DO NOT USE any abrasive substances. of the ARLO pushchair. Lower the seat onto • From time to time, check your pushchair for loose screws, the adapters until it locks into place with a click. -
Page 13: Www.tuttibambini.com
Join Us Follow us on Facebook TuttiBambiniUK Follow us on Twitter TuttiBambiniUK Follow us on Instagram TuttiBambiniUK www.tuttibambini.com...
