Summary of Contents for SMAR IS400P

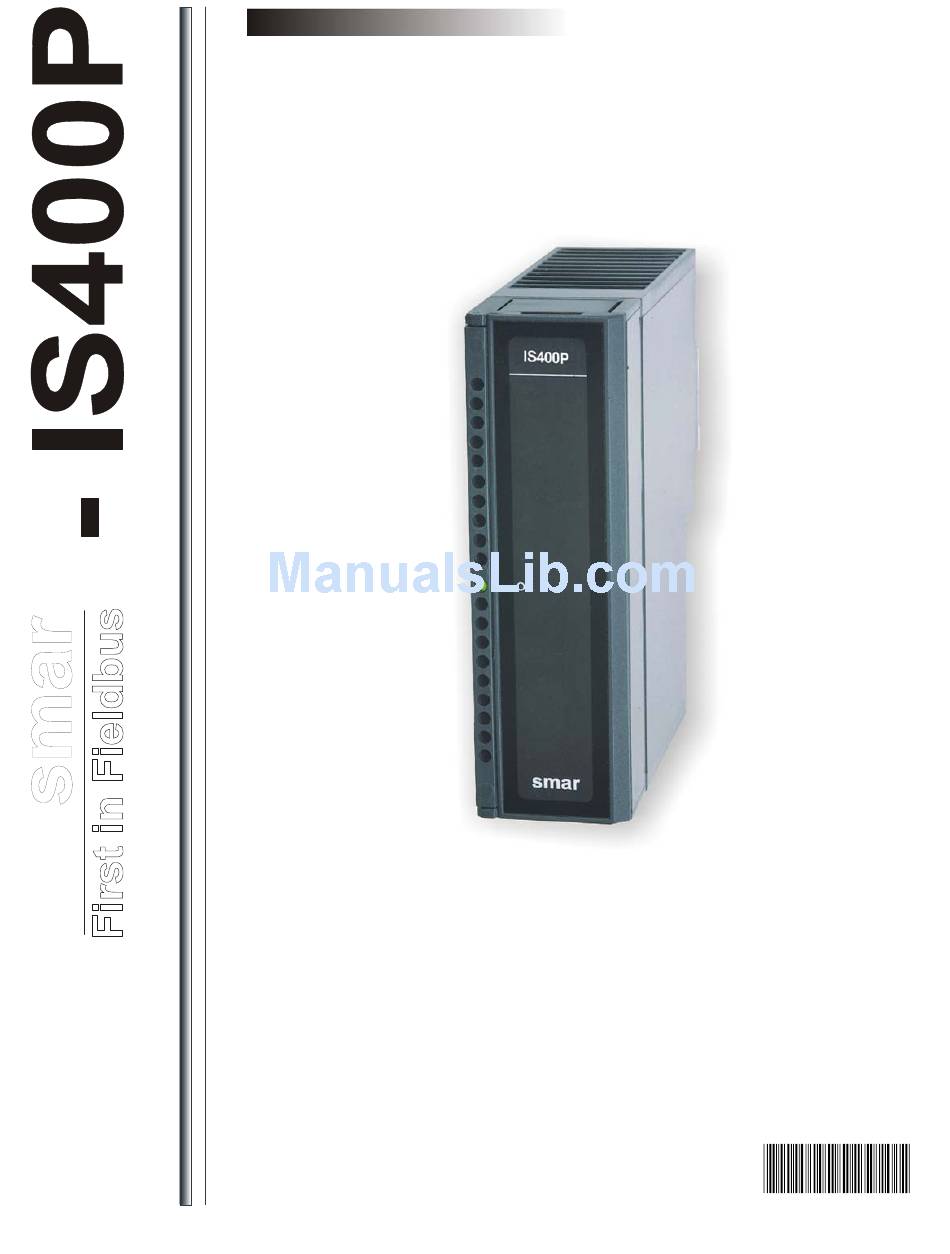

- Page 1 INSTALLATION MANUAL Power Distributor and Isolator DEC / 03 IS400P I S 4 0 0 P M E...
- Page 2 Specifications and information are subject to change without notice. Up-to-date address information is available on our website. web: www.smar.com/contactus.asp...
-
Page 3: Is400P- Power Distributor And Isolator
(current or voltage) of a receiver device, typically a register or controller. Besides, the power supply of the module is isolated from the input and output. The signal Isolator Distributor Module - IS400P - solves the problem of the distortion in the signal transfer due to potentials of different ground. -
Page 4: General Characteristics
IS400 – Installation Manual General Characteristics The Power Distributor and Isolator, model IS400P, can be used in two ways: • Power supply for two-wire transmitters, providing isolation between input and outputs. • Isolate a 4-20 mA or 1-5 Vdc signal between the input and outputs. -
Page 5: Technical Specifications
IS400P – Power Distributor and Isolator Technical Specifications General • Power supply: 24 Vdc ±10% • Accuracy: 0.15% of span • Maximum current consumption: 120 mA • Insulation resistance from power supply to input and outputs: 1000 MΩ (minimum) at 500 Vdc. - Page 6 IS400 – Installation Manual Dimensions Fig 4 – Dimensions...
- Page 7 Appendix A FSR – Service Request Form smar Proposal Nº: IS400P – Power Distributor and Isolator COMPANY INFORMATION Company: _____________________________________________________________________________________________________ Unit: ________________________________________________________________________________________________________ Invoice: _______________________________________________________________________________________________________ COMMERCIAL CONTACT Full Name: ____________________________________________________________________________________________________ Phone: _________ _________________________ _________ _________________________ Fax: _______________________ E-mail: _______________________________________________________________________________________________________ TECHNICAL CONTACT...
- Page 8 IS400P – Installation Manual...
-
Page 9: Smar Warranty Certificate
Appendix B SMAR WARRANTY CERTIFICATE SMAR guarantees its products for a period of 24 (twenty four) months, starting on the day of issuance of the invoice. The guarantee is valid regardless of the day that the product was installed. SMAR products are guaranteed against any defect originating from manufacturing, mounting,... - Page 10 13. It is the customer’s responsibility to clean and decontaminate products and accessories prior to shipping them for repair, and SMAR and its dealer reserve themselves the right to refuse the service in cases not compliant to those conditions. It is the customer’s responsibility to tell SMAR and its dealer when the product was utilized in applications that contaminate the equipment with harmful products during its handling and repair.
