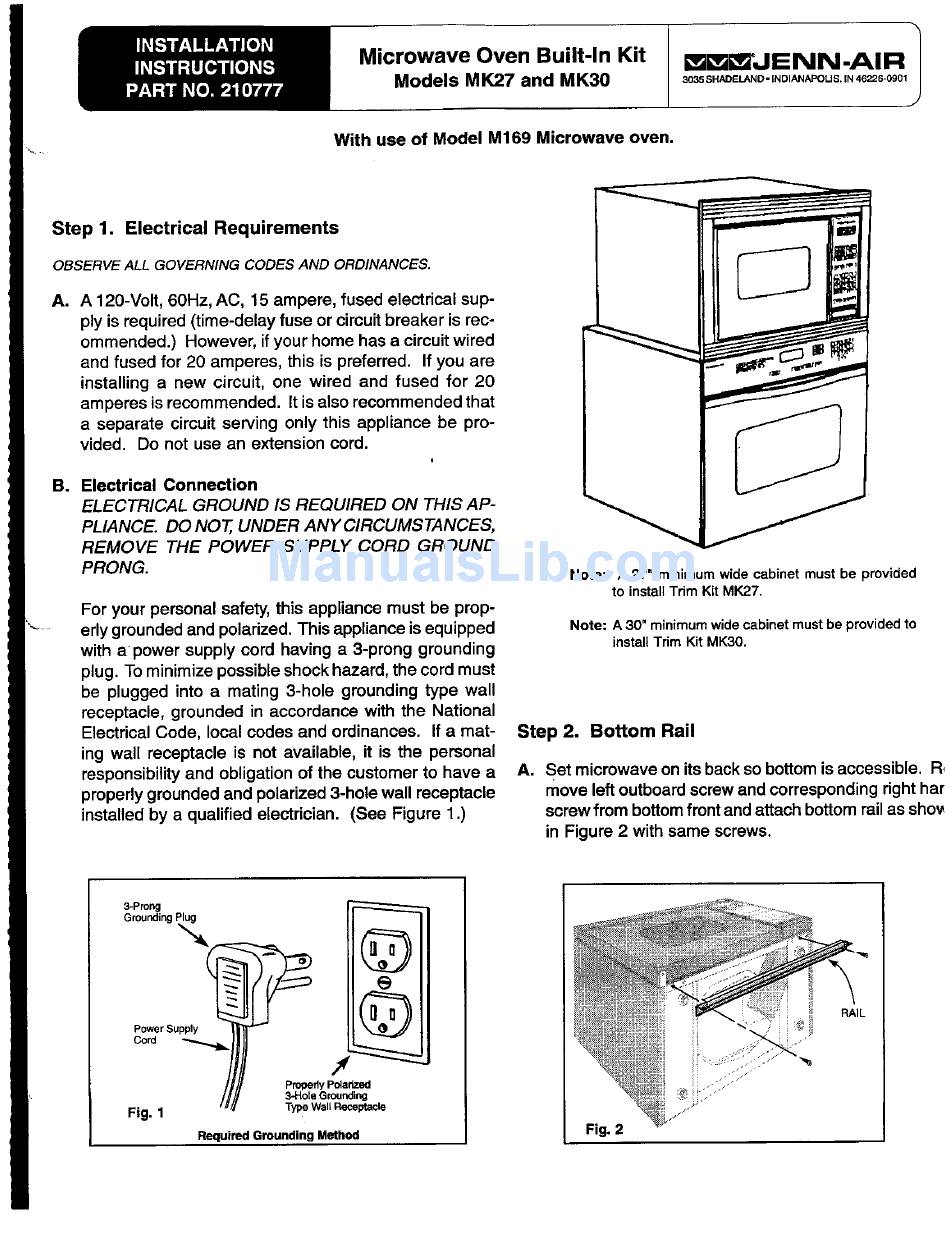

Microwave Oven Built-In Kit
i [] 'JENN-AIR
Models
MK27 and MK30
3035SHADELAND-tNDIANAPOLIS.
tN46226-0901
J
With use of Model M16g Microwave oven.
p.-
INSTALLATION
INSTRUCTIONS
PART NO. 21 0777
Step 1. Electrical
Requirements
OBSERVE
ALL GOVERNING
CODES
AND
ORDINANCES.
A. A 120-Volt, 60Hz, AC, 15 ampere, fused electrical sup-
ply is required (time-delay fuse or circuitbreaker is rec-
ommended.) However, if your home has a circuit wired
and fused for 20 amperes, this is preferred. If you are
installing a new circuit, one wired and fused for 20
amperes is recommended. It is also recommended that
a separate circuit serving only this appliance be pro-
vided. Do not use an extension cord.
B. Electrical Connection
ELECTRICAL GROUND IS REQUIRED ON THIS AP-
PLIANCE. DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE
THE POWER SUPPLY CORD GROUND
PRONG.
Note: A 27" minimum widecabinetmustbe provided
to install TrimKitMK27.
For your personal safety, this appliance must be prep-
_
erly grounded and polarized. This appliance is equipped
Note: A30" minimum widecabinet m ust b e provided t o
with a power supply cord having a 3-prong grounding
install T rimKitMK30.
plug. To minimize possible shock hazard, the cord must
be plugged into a mating 3-hole grounding type wall
receptacle, grounded in accordance with the National
Electrical Code, local codes and ordinances. If a mat-
Step 2. Bottom
Rail
ing wall receptacle is not available, it is the personal
responsibility and obligation of the customer to have a
A. Set microwave on its back so bottom is accessible. R,
properly grounded and polarized 3-hole wall receptacle
move left outboard screw and corresponding righthar
installed by a qualified electrician. (See Figure 1.)
screw from bottom front and attach bottom rail as shov
in Figure 2 with same screws.
3-Prong
Grounding Plug
PowerSupply1
i
"
'_'_
Propedy PolarJz_l
• :_"
3-HoteGrounding
Fig.
1
Type WaltReceptacle
Required Grounding Method
Fig. 2
