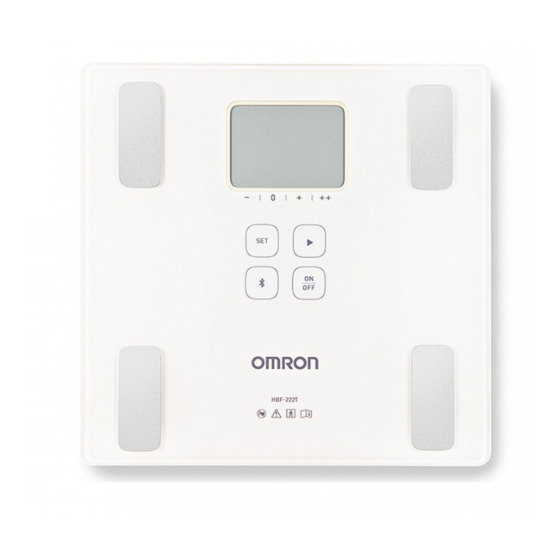

Omron HBF-222T Instruction Manual

Omron HBF-222T Instruction Manual

Body composition monitor

Advertisement

Body Composition Monitor
HBF-222T
Thank you for purchasing the OMRON Body Composition Monitor.
Before using this unit, please be sure to read this Instruction Manual carefully to
understand the safe and proper use.
Please store this Instruction Manual carefully for future reference.
6601970-0A
IM-01-05/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBF-222T and is the answer not in the manual?

Questions and answers

Naredh
May 16, 2025

How to connect bluetooth

Barry
March 28, 2025

How to change from kgm to pounds

Summary of Contents for Omron HBF-222T

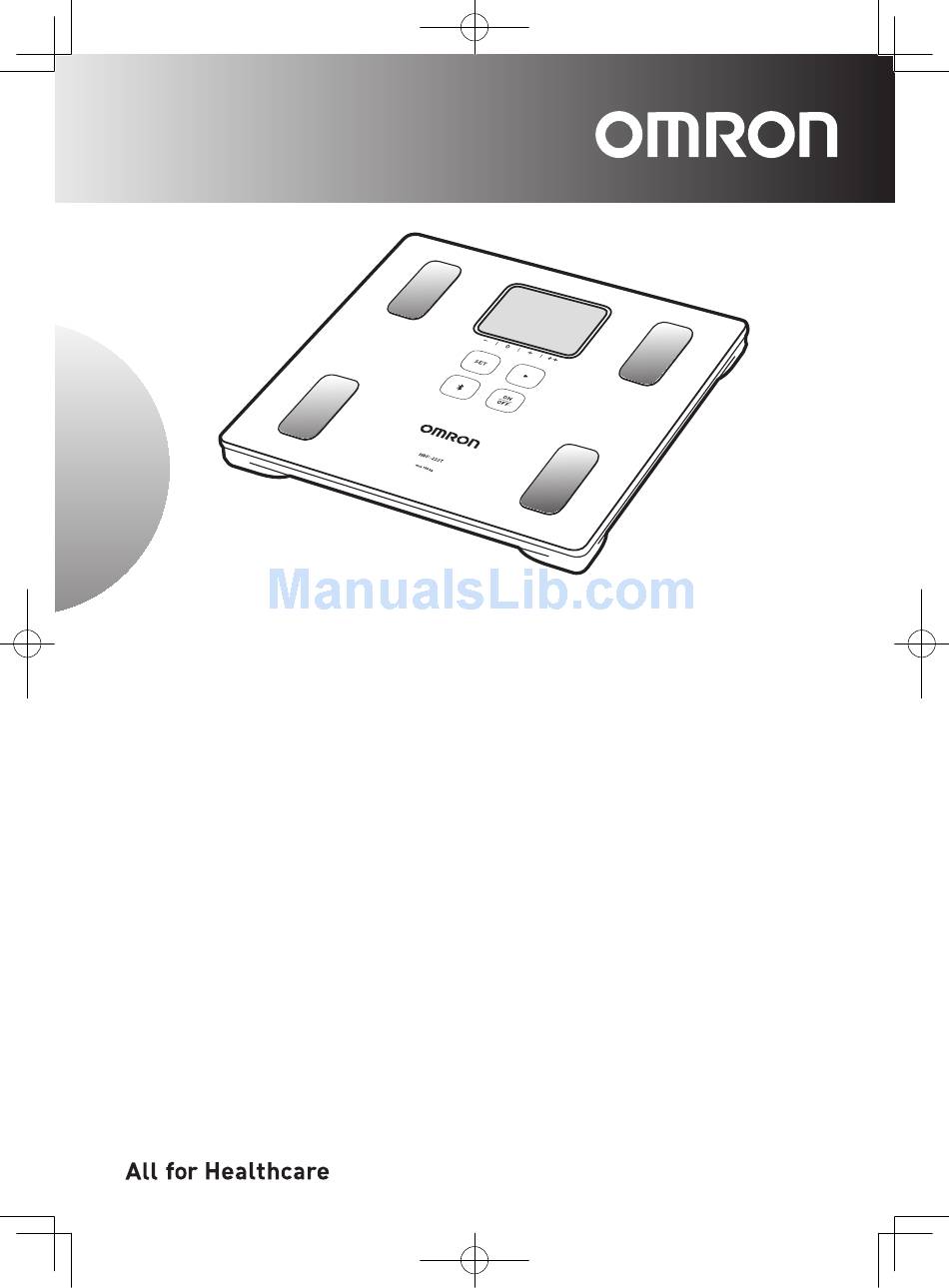

  • Page 1 Body Composition Monitor HBF-222T Thank you for purchasing the OMRON Body Composition Monitor. Before using this unit, please be sure to read this Instruction Manual carefully to understand the safe and proper use. Please store this Instruction Manual carefully for future reference.
  • Page 2: Table Of Contents

    HBF-222T Body Composition Monitor Intended Use Thank you for purchasing this OMRON Body Composition Monitor. This unit is intended for measuring and displaying the following body composition parameters. - Body Weight - Body Fat (in %) - Visceral Fat (up to 30 levels)
  • Page 3: Before Using The Unit

    Before using the unit Notes on Safety Symbols and definitions are as follows: Danger: Improper use may cause danger resulting in death or serious injury. Warning: Improper use may result in possible death or serious injury. Caution: Improper use may result in injury or property damage. Danger: •...
  • Page 4 • If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water. • Remove the batteries from this unit when you are not going to use it for a long period of time (approximately three months or more). •...
  • Page 5: Know Your Unit

    Before using the unit 1. Know Your Unit Main Unit Display Foot Electrodes Foot Electrodes HBF-222T Feet (×4) ON/OFF Button  • Press this button to turn on the power. • Press this button (2 seconds or longer) to turn off the power.
  • Page 6: Insert And Replace The Batteries

    ■ When the batteries are replaced, you need to reset the date and time. (Refer to Section 4.) • If you have already paired with the "OMRON connect" app, press the button to communicate with this app, then the date and time and personal data will be set automatically.
  • Page 7: Pair The Unit With Your Smart Device

    • One smart device manages the data of one user. • If an app other than "OMRON connect" is used, data might not be transferred correctly. • Please read the utilization method and usage instruction within the app for details.
  • Page 8: Set The Date And Time

    Setting the date and time is necessary before taking a measurement for the first time or after replacing the batteries. • Date and time can be set from "OMRON connect" app as well. Press the button to turn on the power The year blinks on the display.
  • Page 9: Register The Personal Data

    For the measurement of body composition, it is necessary to register your personal data (birth date, gender, height). The registered data can be stored for up to 4 persons. • The personal data can be registered from "OMRON connect" app as well. Press the button to turn on the power.
  • Page 10: Operating Instructions

    Step onto the unit to take a measurement when "0.0 kg" is displayed. The data of body weight and body composition are recorded in the unit to support automatic recognition. After a while, the measurement results are indicated as follows. Step off the unit after the measurement results are displayed.
  • Page 11: About The "0 Kg Correction" (Caution For Storing)

    6.2 About the "0 kg correction" (Caution for storing) The unit regularly corrects accuracy automatically when it is not in use. • If the unit is placed as shown below this accuracy correction function does not work, implement the "0 kg correction" before taking the measurement. The unit is leaning against the The unit is placed upside The unit is placed on an...
  • Page 12 Take a measurement when the power of the unit is off. When you step onto the unit, the power automatically turns on. When personal number and measurement results are displayed, the measurement is completed. Step off the unit. Confirm your personal number. ■...
  • Page 13: Use The Memory Function

    Follow the instructions from the "OMRON connect" app to view your measurement results. Then you can confirm the variation of your weight and body composition parameters on your smart device. Note • The "OMRON connect" app must be installed on your smart device.(Refer to Section 3.)
  • Page 14: When Necessary

    When necessary 9. Select Your Personal Number and Take a Measurement If your personal number is not recognized frequently, you can select your personal number and take the measurement as follows. Press the button to turn on the power. The power turns on. Personal number "1" blinks. Select your personal number.
  • Page 15: Guest Mode (Unrecorded Mode)

    When necessary 10. Guest Mode (Unrecorded Mode) When this mode is used, your measurement results will not be recorded. Press the button to turn on the power. The power turns on. Personal number "1" blinks. Select and confirm " ". Select "GUEST"...
  • Page 16: Measure Weight Only

    Start Measurement when "0.0 kg" is displayed. Step onto the unit. Check the measurement results. The results display rotates automatically. Press the button (2 seconds or longer) to turn off the power. The power turns off if the unit is not used for 3 minutes. When necessary 11.
  • Page 17: Change Or Delete Your Personal Data

    When necessary 12. Change or Delete Your Personal Data Press the button to turn on the power. The power turns on. Personal number "1" blinks. Select your personal number Press the button to select the personal number. When the birth date ( ) is displayed, Your personal data is not registered in your personal number.
  • Page 18: Delete The Communication Setting

    When necessary 13. Delete the Communication Setting If you want to stop the use of the "OMRON connect" app or delete the communication settings from your smart device, please operate as follows. All the communication settings recorded in the unit will be deleted.
  • Page 19: Troubleshooting

    Turn on the power again and then take a measurement. Device error. If this error continues to display, consult the OMRON service representative. Turn off the power and try to communicate again. If this Communication failure. error is displayed again, contact the OMRON service representative.
  • Page 20 Problem Cause Correction Transfer the measurement results to 24-29 sets of measurements "OMRON connect" app, then the symbol results have been stored. will disappear. blinks If the number exceeds 30, the oldest results are deleted.Transfer the 30 sets of measurements measurement results to "OMRON...
  • Page 21 You pressed two or more Press one button at a time. buttons simultaneously. Even if you do nothing, Refer to "About the Power OFF Function". (Refer to Section 2.) the power turns off. Failure to send data Refer to "Help" in "OMRON connect" app.
  • Page 22: Technical Data

    16. Technical Data Product Category Body Composition Analyzers Product Description Body Composition Monitor Model (code) HBF-222T (HBF-222T-APW/HBF-222T-INW) Display* Body Weight: 2.0 to 150.0 kg with an increment of 0.1 kg Body Fat 5.0 to 50.0% with an increment of 0.1%...
  • Page 23 Bluetooth SIG, Inc. and any use of such marks by OMRON HEALTHCARE Co., Ltd. is under license. Hereby, OMRON HEALTHCARE Co., Ltd., declares that the radio equipment type is in compliance with Directive 2014/53/EU. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Page 24 Correct Disposal of this Product (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 25: Information On Body Composition

    In order for the scale to determine your body composition, it uses the electrical impedance, along with your height, weight, age and gender information to generate results based on OMRON’s data of body composition.
  • Page 26 Body fat percentage (%) = {Body fat mass (kg) / Body weight (kg)} × 100 HBF-222T uses the BI method to estimate your body fat percentage. Depending on where the fat is distributed in the body, it is classified as visceral fat or subcutaneous fat.
  • Page 27: Measurement Results Interpretation Diagrams

    + (High) 25 - 29.9 + (Overweight) 15 - 30 ++ (Very High) 30.0 - 90.0 ++ (Obese) According to OMRON HEALTHCARE figures Interpreting the Skeletal Muscle Percentage Result Gender – (Low) 0 (Normal) + (High) ++ (Very High) Female 5.0-25.8...
  • Page 28 Manufacturer 53, Kunotsubo, Terado-cho, Muko, KYOTO, 617-0002 JAPAN EU-representative OMRON HEALTHCARE EUROPE B.V. Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS OMRON HEALTHCARE SINGAPORE PTE LTD. 438A Alexandra Road, #05-05/08, Alexandra Technopark Asia Pacific HQ Singapore 119967 www.omronhealthcare-ap.com Made in China...
