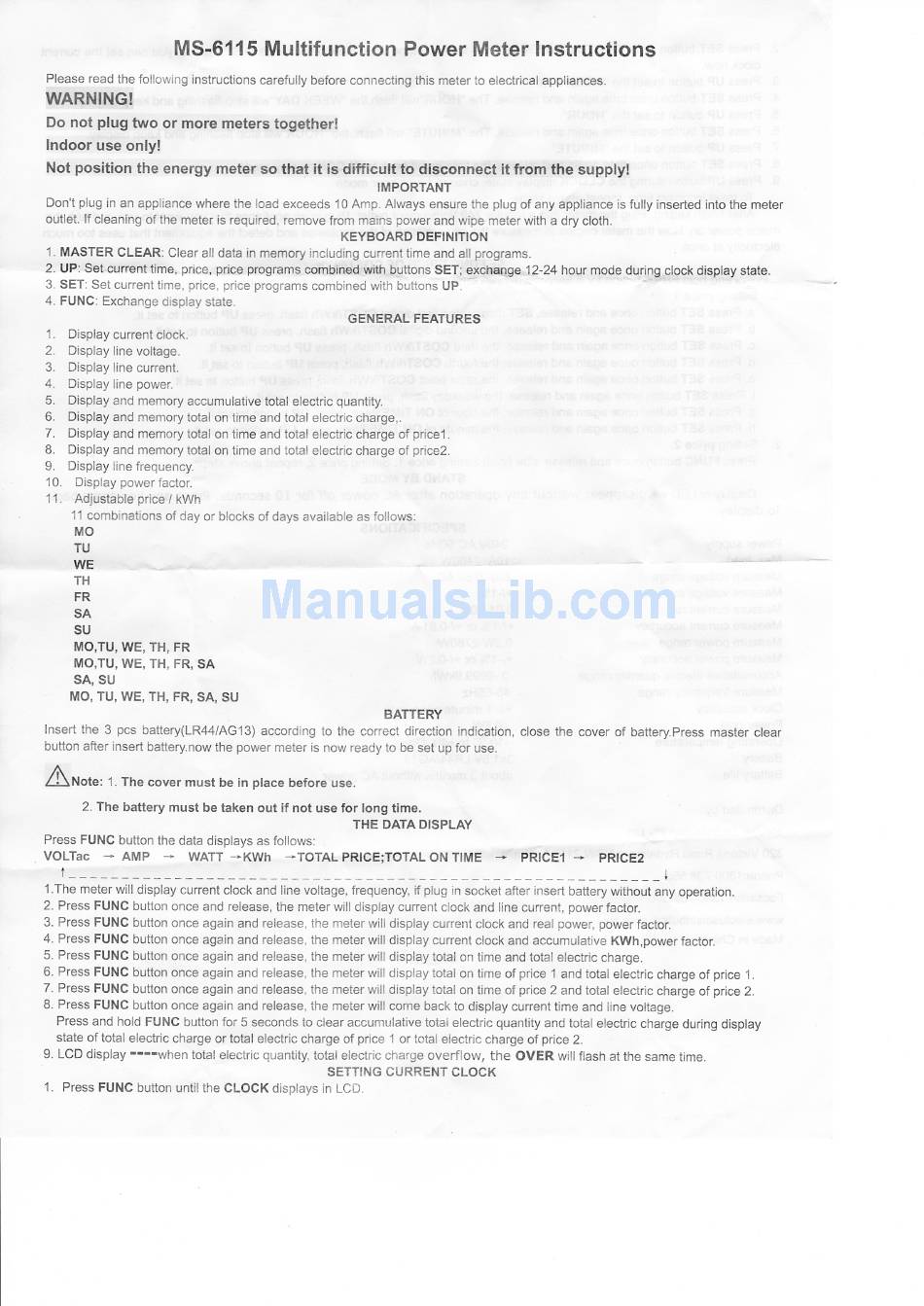

Electus Distrubution MS-6115 Instructions

MS-611
5
Multifunction
Power Meter
lnstructions
Please read the following instructions carefully before connecting this
meter
to electrical appliances.
WARNING!
Do
not plug
two or more meters together!
Indoor use only!
Not
position the energy
meter so that it
is
difficult to disconnect
it
from the supply!
IMPORTANT
Don't plug
in
an appliance where the
load
exceeds
10
Amp. Always
ensure the
plug of
any appliance
is
fully inserted
into
the meter
outlet. lf cleaning
of
the meter
is required. remove from mains power and wipe
meter
with a dry
cloth.
KEYBOARD DEFINITION
1. MASTER CLEAR:
Clear all data in memory including current time and all programs.
2. UP: Set current time, price, price programs combined with buttons SET; exchaqge
12-24
hour mode during clock display
state.
3.
SET:
Set
current time. price. price programs combined with buitons
UP.
4. FUNC: Exchange display
state.
GENERAL FEATURES
1.
Display current
clock.
2.
Display
line voltage.
3.
Display
line current.
4.
Display line power.
5.
Display and memory accumulative total electric
quantity.
6.
Display and memory total
on time and total electric
charge,.
7.
Display and memory total
on time
and
total electric charge
of
pricel.
8.
Display and memory total
on time and tota! electric charge of
price2.
9.
Display
line frequency.
10.
Display power
factor.
11.
Adjustable price
i
k$/h
11
combinations
of day or blocks of days available
as follows:
MO
TU
WE
TH
FR
SA
SU
MO,TU, WE, TH,
FR
MO,TU, WE, TH,
FR, SA
SA,
SU
MO,
TU, WE, TH, FR, SA,
SU
BATTERY
lnsert
the 3 pcs battery(LR44/Ac13)
according
to the
correct direction indication, close the
cover
of batteryPress
master clear
button after insert batterynow the power meter
is now ready to be set
up
for
use.
A*or",
1.
The cover must
be
in place before
use.
2.
The batiery must
be
taken out if not
use
for long time.
THE
DATA
DISPLAY
Press FUNC button the data displays
as follows:
VOLTac
* AMP
WATT
*KWh
*TOTAL
PRICE;TOTAL
ON
TIME
PRICE'I
*
PR|CE2
1.The meter will display current clock and
line
voltage, frequency,
if
plug
in socket after insert
battery without
any operation.
2. Press FUNC
button once and release, the meter
will
display current
clock and
Iine
current, power factor.
3. Press FUNC
button once again and release, the
meter
will display current clock and real
power, power factor.
4. Press FUNC
button once again and release, the
meter
will display current clock and accumulative KWh,power
factor.
5. Press FUNC button once again and release, the
meter will display total
on
time
and
total electric
charge.
6. Press FUNC button once again and release, the
meter
will display total
on time of
price
1
and total electric charge of price
1.
7. Press FUNC button once again and release, the
meter
will display total
on
time of price
2 and total electric charge of
price
2.
B.
Press FUNC button once again and release, the
meter
will come
back to display current time and
line voltage.
Press and hold FUNC
button for 5 seconds
to
clear accumulative totai electric quantity and total electric charge during display
state
of total electric charge
or total electric charge of
price
1
or tctal electric charge of price
2.
9. LCD display
-rrrwhen
total electric
quantity, total electric charge
overflow, the
OVER
will flash at the same
time.
SETTING CURRENT CLOCK
1.
Press FUNC button
until
the CLOCK disptays
in LCD.
