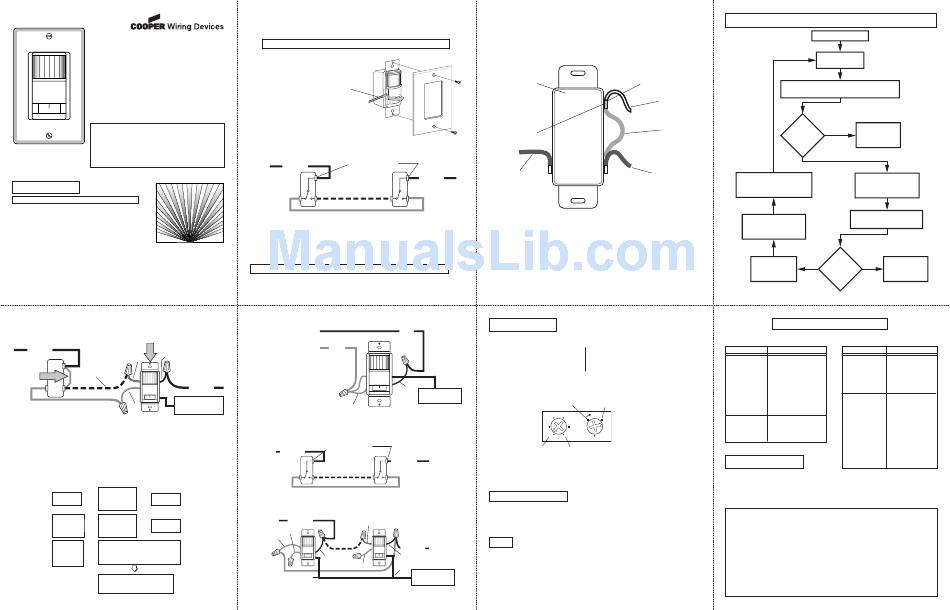

Cooper Wiring Devices 6107 Installation

6107
Motion Sensing
3-Way Wall Switch

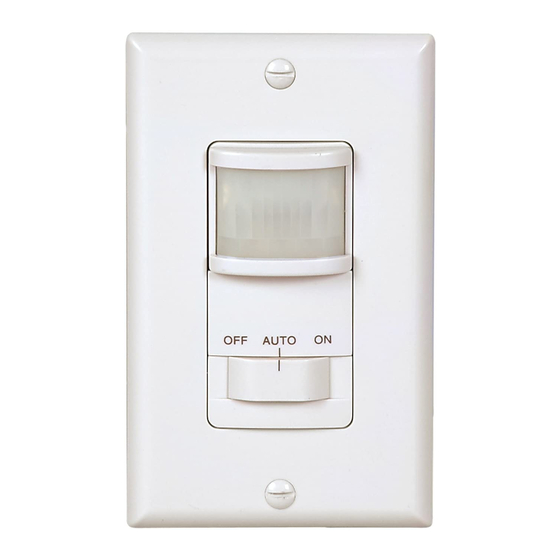

The 6107 Motion Sensing Wall Switch dectects motion to turn on
lights for an adjustable amount of time. A built-in photo cell can be set
to keep lights off when the lights aren't needed. The unit has excel-
lent sensitivity and a wide 150° detection range. It can be used with
incandescent lighting as well as rapid start fluorescent lighting. (Not
for use with electronic ballasts).
OFF AUTO ON
The 6107 can be used to replace either a 3-way wall switch or a
single pole switch. Some codes require installation by a qualified
electrician.
Features include:
• 150° motion detection angle
• Adjustable on-time from 5 sec. to 20 min.
• Adjustable photocell
• Works with incandescent and rapid start fluorescent lighting (Not
for use with electronic ballasts
• Works with motors up to 1/8 hp.
• Slide switch selectable OFF, ON AND AUTO modes.
Included are: • The sensor switch • Cover plate • 4 wire connectors • 2 large screws • 2 small screws.
INSTALLATION 30'
WARNING: For indoor use only.
SELECT A LOCATION
NEW APPLICATION
Choose a location where the motion sensor has a clear view of
the entire area where occupant motion may occur. 15'
RETROFIT APPLICATION
0'
Motion sensing switch will replace existing wall switch. Use only
where the existing switch location provides a clear view of the
Typical Plan View of Coverage
occupied area.
GENERAL APPLICATION INFORMATION
The detector is more sensitive to motion across the front of the sensor than to motion towards the sensor.
The detector senses heat in motion and possible heat sources that change temperature quickly. Therefore, to
avoid false triggering, avoid placing the sensor where it will be aimed at air conditioners, heaters, and other
sources of heat or cold.
• Connect the 6107 Motion Sensing Switch as shown in the diagram below:
② Replace
switch with 6107
Common
Black
Brown
①
Add
Traveller
Jumper
Wire
Common
OFF AUTO ON
Green ground wire to
junction box screw or
Traveller Red
grounding wire
3-Way Motion Sensor Wiring Diagram
• Mount the 6107 into the junction box with the two junction box screws.
• Turn the circuit breaker back on.
• Preset the controls: Time to minutes, Light level adjustment fully clockwise. Cover the lens with masking tape.
• With the motion sensor in the "ON" position, turn the remote switch on and off several times. Go to step 1, 2,
or 3, depending on results.
WARNING: Turn power off at circuit breaker prior to making any wiring changes.
Exchange
1. Test again.
If light does
➮ Red & Black ➮
not turn on: Go to 2 or 3.
wires on
6107 Control
If light turns Exchange
2.
➮ Test again.
on in only one Red & Brown ➮
position of wires on Go to 1 or 3.
remote switch:
6107 Control
If light turns
Set sensor to "AUTO". Wait for the
3.
on with
unit to warm up (up to 1 min.). If the
➮
remote switch
remote switch can turn the lights on,
in either
it's OK. Otherwise:
position:
Exchange Red & Brown wires
on 6107 Control. Remove the
tape. Go to the next page.
- 5 -
INSTALLING THE SWITCH
3-Way With One Motion Sensing Switch
WARNING: Turn power off at the circuit breaker before wiring.
Note: a "3-way" circuit controls lights from two separate
switches. If you want to use this product in a single
switch circuit or if you want to install more than one
motion sensing wall switch, see page 6
• Remove the decorative coverplate (secured by two
screws).
• Remove Control Cover. (Press in with screwdriver.
Swing out cover to remove to access adjustable
screws.)
• Choose which switch will be replaced and remove it.
• For easier re-wiring later, mark the house wiring with
tape indicating where the wire had been connected.
• Do not connect to neutral wire or damage to unit will
occur and warranty will be void.
Common Switch Lug
Common
Travellers
Travellers
3-Way Switch Wiring Diagram
Questions? Call 1-866-853-4293 8:00 AM to 7:00 PM Eastern Time, weekdays
OFF ON
AUTO
469MT-PT
- 2 -
Single Switch Installation
• For single switch installations,
connect the wall switch as shown
here.
Load
OFF AUTO
Red & Brown
3-Way with Two Motion Sensors
If you want to have motion sensors at both 3-way switches, connect them as shown below. The minumum
wattage may increase to 100 W for fluorescent and 50 W for incandescent lighting.
Common Switch Lug
Common
Travellers
3-Way
3-Way
Switch
Switch
Existing Wiring Diagram
Common
Brown
Red
Brown
Travellers
OFF AUTO ON OFF AUTO
Black
Red
Travellers
Green
Dual 3-Way Motion Sensor Wiring Diagram
- 6 -
• Remove remaining 3-way switch from the junction box.
• Add the jumper wire to the common lug and to either one of the two switched lugs. Ifyou're not sure which
lug is common, install the jumper on any two of the three wires, and test the jumper as explained on the next
page.
Note: After jumper is installed, this switch
will turn lights on only.
The switch may
indicate the
common
OR
Color of screw
may be different
for the common
To Red wire
Common
of 6107
(note color)
OFF ON
AUTO
ADJUSTMENTS
Line
TIME
There are 6 preset selections for the amount
of time the lights stay on: Test (5 seconds), 1,
5, 10, 15, and 20 minutes. Use a small, phil-
lips screw driver to adjust the TIME control.
Turn the TIME control until it "snaps" into the
desired time position.
Green
ON
Green ground wire to
Black
junction box screw or
grounding wire
Any Light
Level
5
1
Test
T I M E
5 Seconds
Common
Note: Adjustment screws
found under (off-auto-on)
face plate.
Complete Installation
• Replace control panel cover and install the decorative wall plate. In installations where the Cooper motion
sensor switch is combined with other switches or outlets on an expanded box, a combination wall plate will
need to be purchased. Various combination wall plates are available at Home Centers and Electrical Supply
Stores.
• Slide the switch a couple of times to make sure it operates freely.
USE
Common
MODE Selection Switch
ON
Black
Moving the switch selects one of three modes of operation: OFF, AUTO, ON
Green
OFF: Lights stay off.
Green ground wire to
junction box screw or
AUTO: Lights come on for time set when motion is detected and the light level is below the set level or when
grounding wire
3-way switch is manually switched.
ON: Lights stay on continuously. Flipping 3-way switch has no effect.
Common
Switch Lug
COMMON
Hot Wire
Jumper
To Brown wire
of 6107
Move one end of the jumper
(note Color)
- 3 -
If you have a problem with your Wall Switch, first follow this guide. If the problem persists, call the
LIGHT LEVEL
customer service hotline at 1-866-853-4293 between 8:00 AM and 700 PM ET weekdays.
SYMPTOM
The sensor can be prevented from turning on lights
when there is already enough light in the room. Use
Light does not come
a small screw driver to set the light level using this
on in the AUTO
diagram as a guide. In the fully clockwise position,
mode.
the sensor turns on lights even in full daylight. In the
fully counter-clockwise poition, the sensor only turns
on lights when the surrounding light level is very low.
Dark (low
To adjust the photocell:
light level)
• When the light in the room is at the
+ level you want the lights to turn on,
10 set the switch to the AUTO position.
Put the TIME control to the 5 sec-
15 Lights do not stay
ond position.
on in the Auto mode.
• Put the LIGHT control to the mini-
20
mum dark (fully counter-clockwise)
L I G H T
position.
20 Minutes
• Wait for the lights to turn off.
• Turn the LIGHT adjustment clock-
wise in very small steps and wait 2 SPECIFICATIONS
seconds before moving your hand in
front of the sensor. Repeat until the
Electrical input................................................................................................................................120V, 60 Hz
lights controlled by the sensor come
Fluorescent Load - Not for electronic ballasts....................(2) 30 Watt minimum 400 Watt maximum Rapid Start
on. The light will now come on when
Motor Load.............................................................................................................................1/8 HP maximum
the light level is at or below the pres-
Incandescent.........................................................................................................................500W at 120V AC
ent level and motion is detected.
On-Time..........................................................................................Adjustable approximately 5 sec. to 20 min.
Photocell Sensor.......................................................................................From dull daylight to less than 1 FC.
Coverage...............................................................................up to 15 ft. at 150°, up to 30 ft. in front of the sensor
YOUR COOEPRWIRING DEVICES ELECTRIC ASSEMBLED PRODUCT TWO YEAR LIMITED WARRANTY
For a period of 2 years from the date of purchase, Cooper Wiring Devices will replace or repair the motion
sensing switch provided that it has not been subject to abuse, improper installation or improper use, and is
returned prepaid to Cooper Wiring Devices Quality Control Department at 203 Cooper Circle, Peachtree
City, GA 30269. If the product has been discontinued, replacement will be made with the nearest available
equivalent model. This warranty does not cover consumables (such as fuses). Proof of purchase in the form
of a bill of sale or receipted invoice that shows that the item is within the applicable warranty period must be
presented to obtain the repair or replacement provided by the warranty. Repair or replacement as provided
under this warranty is the exclusive remedy of the customer. Cooper Wiring Devices shall not be liable for
any incidental or consequential damages for breach of any express or implied warranty on any of its prod-
ucts. Except to the extent limited or prohibited by applicable law, any implied warranty of merchantability or
fitness for a particular purpose on this product is limited in duration to the duration of this warranty. Some
states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on
how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
- 7 -
Test for correct common wire connection:
Re-install the switch.
Turn the circuit
breaker back on.
Leaving the jumpered switch in one position,
flip the other 3-way switch on and off.
Lights Jumper is
Yes
turn on correct. Go
and off. to next page.
No
Flip the switch with the
wire to the previously jumper wire to the
unconnected terminal. other position.
Flip the unjumpered switch
Remove the jumpered
on and off.
switch from the
junction box.
Turn the power Lights Jumper is
No Yes
off at the turn on correct. Go
circuit breaker. and off. to next page.
- 4 -
TROUBLESHOOTING
POSSIBLE CAUSE SYMPTOM POSSIBLE CAUSE
1. Circuit breaker or fuse is Light does not 1. Incorrect wiring.
turned off. turn off. 2. MODE switch is set to
2. If the lamp being controlled ON instead of AUTO.
has another switch, it may 3. Motion is still present.
be turned off. 4. Delay set by TIME con-
3. Bulb is defective. trol has not expired.
4. LIGHT control is set too far
Heating or cooling ob-
toward the DARK position.
Light comes on for 1. jects (such as air
5. MODE switch is set to OFF
no reason in the Auto vents, appliances, or
instead of AUTO.
drafts through the wall
mode.
6. Poor connection.
box) are causing false
triggering.
1. Motion has stopped in the
Switch on the sensor
room.
2. has been turned off
2. TIME control is set for too
and back on.
short a delay.
There was a momen-
3. tary power interrup-
tion. The light will turn
off automatically when
the "on" time expires.
- 8 - 598-1180-04 E
