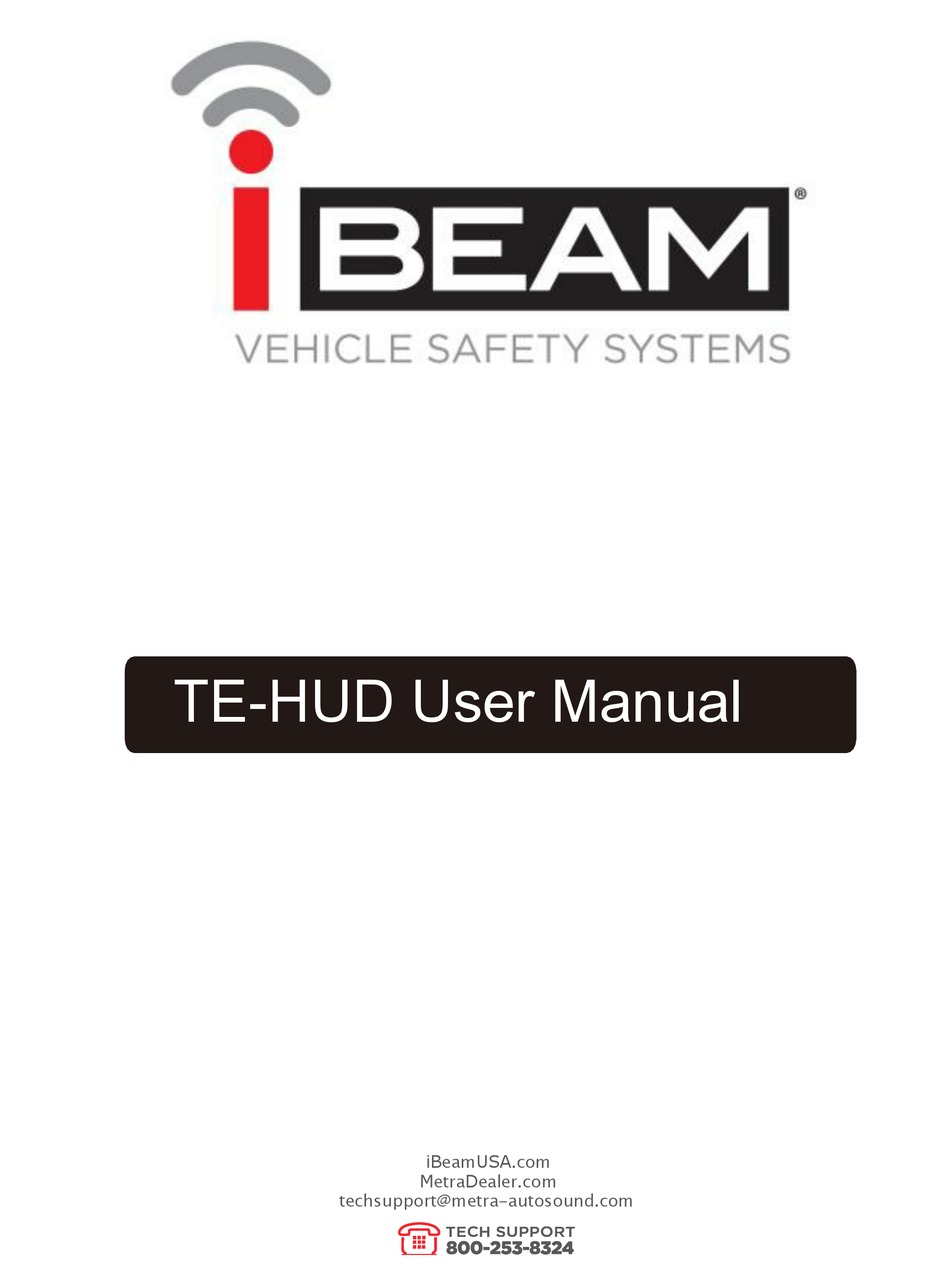

- Page 1 TE-HUD User Manual iBeamUSA.com MetraDealer.com techsupport@metra-autosound.com � TECH SUPPORT 800-253-8324...
- Page 2 6. Auto on/off along with car. (Manual on/off is also available ) 7. Equipped with Auto brightness sensor. (manual adjustment is also available ) TE-HUD screen function: 1. Brightness sensor (please don’t cover by article) 2. Engine RPM 3. RPM unit (1,000 turn/min) 4.
- Page 3 (as picture 1) showing OBD II certified, if not, consult the vehicle's owner's manual). 2. Connect the OBD II cable (included in package) to your Car OBD II jack. Connector other end of cable (mini USB connector) to TE-HUD device.
- Page 4 The first use of TE-HUD Start engine and power on TE-HUD, showing the current vehicle voltage and then begins to search ECU state, if the TE-HUD shows speed, rotating speed, indicating that TE-HUD has been installed successfully. (After 1 minute, if only display the voltage, please check whether TE- HUD, OBD interface, and OBD data cable are correctly connected and the cable plug is fully seated into the vehicle OBD interface.
- Page 5 We have adjusted the TE-HUD according to the general test values at the factory, if you find TE-HUD display information is different from dashboard, then make the following adjustments: 1. Long press the wave button vertically for 5s Entering into the setting mode, there are three button for wave...
- Page 6 ℃ ℉...
- Page 7 Alarm function off, again push it 5 sec, Alarm function on. 4. Restore the factory Settings: try to reset the TE-HUD, slide setting scroll to "L" for 5 seconds, all the LED lights will be turned on, repeat the action for 5 seconds again, all setting will be reset to factory default setting and the TE-HUD should be good.
-
Page 8: Troubleshooting
Speed is inaccurate KM/H 1. Nothing on screen: Make sure the TE-HUD power button is on, make sure OBD II is securely connected, start car again. 2. Power on, but screen only show car battery voltage, and off after 30 sec: Car might not use OBDII or EU OBD protocol, consult vehicles owner’s manual. - Page 9 4.TE-HUD crash: Try to reset the TE-HUD, slide setting scroll to "L" for 5 seconds, all the LED lights will be turned on, repeat the action for 5 seconds again, all setting will be reset to factory default setting and the TE-HUD should be good.
- Page 10 Notes: _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________...
- Page 11 _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________...
- Page 12 IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
