SatKing DVBS2-980CA User Manual

SatKing DVBS2-980CA User Manual

High definition twin tuner satellite receiver

Advertisement

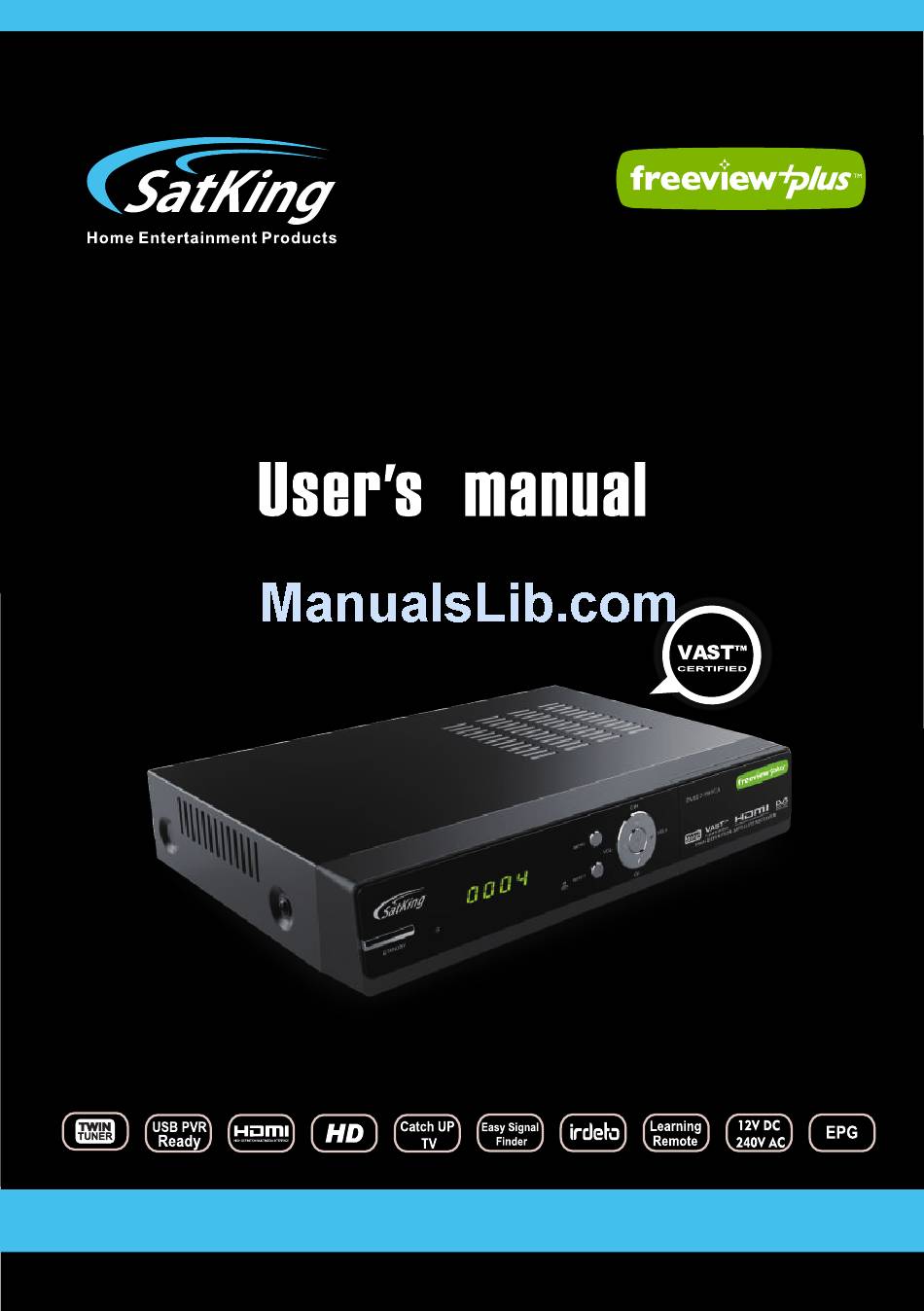

DVBS2-980CA
High Definition Twin Tuner Satellite Receiver
Australian VAST Certified

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVBS2-980CA and is the answer not in the manual?

Questions and answers

Geoffrey Prior
January 23, 2025

Model DVBS2-980ca menu button doesn't work. Have done a reboot. Turned on and off. Does show channels

1 comments:
Mr. Anderson
February 10, 2025

The menu button on the SatKing DVBS2-980CA model may not be working because the receiver is stuck on the update screen. If the box tries to update and no update is available, it will remain on the update screen until it is manually reset by unplugging the power. This prevents access to the menu until the issue is resolved.

This answer is automatically generated

Summary of Contents for SatKing DVBS2-980CA

  • Page 1 DVBS2-980CA High Definition Twin Tuner Satellite Receiver Australian VAST Certified...
  • Page 2 Thank you for purchasing DVBS2 980CA Digital Satellite Receiver. This manual will help you to install, use and maintain the receiver. Please read this manual carefully before operating your unit and keep it for future reference. Warning & Note In this manual, pay special attention to the following marks that indicate hazardous situations. ...
  • Page 3 User’s Manual Safety Instruction Read following items carefully before operating your new VAST receiver. Installation  This receiver should be installed horizontally. Unbalanced installation may cause damage.  Install the receiver in a place with: Good ventilation (leave space not less than 10cm around this receiver) No heat source (radiator, heater, fireplace, amplifier, etc) Low humidity (especially not bathroom, kitchen, etc) No direct sunlight...
  • Page 4: Table Of Contents

    User’s Manual Contents 1. Before Using the Receiver ....................4 1.1 Main Features ....................... 4 1.2 Front Panel ........................5 1.3 Conditional Access (CA) ....................5 1.4 Rear Panel ........................6 1.5 Remote Control Unit (RCU) ..................7 1.6 Learning Instructions ..................... 8 2.
  • Page 5 User’s Manual 9.2 AV Setting ........................26 9.3 Factory Default ......................27 9.4 Modify System Password .................... 27 9.5 Parental Control ......................27 10. USB Upgrade ........................28 11. Over the Air (OTA) Upgrade .................... 28 12. Information........................28 12.1 Smart Card Status ....................
  • Page 6: Before Using The Receiver

    User’s Manual 1. Before Using the Receiver 1.1 Main Features VAST Certified  Freeview Certified  12V/240V Operation, for Home or RV use  High Definition MPEG2/4 Compliant  USB PVR Ready 3 TB Maximum External Drive  STiH-239 650MHz Main Processor ...
  • Page 7: Front Panel

    User’s Manual 1.2 Front Panel 9 Smart Card 4 5 7 8 Rec/Play Name Function 1. STANDBY Switch between operation and standby modes 2.IR Infrared remote sensor 3. MENU Display/exit from main menu 4.RESET Press the reset button in the event the unit freezes 5/8.
  • Page 8: Rear Panel

    User’s Manual • Use a dry soft cloth too clean the surface of the smart card gently. • Do not place into liquid or cleaning agent. • If the smart card does not work properly, please contact your local dealer. 1.4 Rear Panel Name Function...
  • Page 9: Remote Control Unit (Rcu)

    User’s Manual 1.5 Remote Control Unit (RCU) Name Function 1. Learning buttons To program learning remote function TV/AV Change TV source Turn TV On/Off VOL+/- Turn TV volume up/down CH+/- Change channel on TV 2. Buttons on the Remote Control Unit Switch between operation and standby modes MUTE...
  • Page 10: Learning Instructions

    User’s Manual 3. Buttons for PVR functions Display playback progress bar or time INFO shift progress bar Skip backward when playback or T/S  Skip forward when playback or T/S  Display short cut window Pause playback or pause playing to PLAY/PAUSE start time shift STOP...
  • Page 11: Installation

    User’s Manual 2. Installation Connect TV and other devices, then you can power on the receiver and search channels. 2.1 Connect TV Please choose one of following ways to connect TV. Connect TV Using HDMI Cable 1. Connect LNB IN port on the receiver to an aligned satellite dish with an RF cable. 2.
  • Page 12 User’s Manual R-AUDIO L-AUDIO Connect TV Using RCA Cable (included in package) 1. Connect LNB IN port on the receiver to an aligned satellite dish with an RF cable. 2. Connect VIDEO (yellow) port on the receiver to corresponding port on TV. 3.
  • Page 13: Connect Optional Ir Target

    User’s Manual 2.2 Connect Optional IR Target Connect Optional IR Target to IR port and then you can place the receiver out of sight. 2.3 Connection of other Devices For connection of other devices, please refer to following details:  Connect LOOP OUT 2 port on the receiver to LNB IN port on 2 receiver with an RF cable.
  • Page 14: Power On

    User’s Manual Note: If you encounter any problem during the connections, please contact your local Dealer. 2.4 Power on 1. Connect one end of power adapter to power input port on the receiver. 2. Connect the other end of power adapter to the mains power socket. 3.
  • Page 15: Basic Operation

    User’s Manual 3. Basic Operation This section describes operations such as channel change, volume control and other basic operations when playing program. 3.1 Channel Change You can change channels using following methods: Select Next/Previous Channel Press or CH+/- keys to select next/previous channel. Select Channel by Channel Number 1.
  • Page 16: Channel List

    User’s Manual 7. Freeview Plus Availability 8. Resolution 9. Current time 10. Si gnal strength and quality 3.4 Channel List Channel list is available for you to browse channels easily and quickly. Press OK key to display channel list of current service mode.
  • Page 17: Pvr Hotkey Menu

    User’s Manual 3.7 PVR Hotkey Menu This menu provides some hotkey PVR functions. Press PVR key to display hotkey key menu. Notes: • Time shift can be started in this menu. For more details about PVR functions, please • refer to 4. Personal Video Recording (PVR). 4.
  • Page 18: Quick Recording

    User’s Manual  Divide Record by EPG Event You can record programs in several files according to EPG events when you set a record that runs across multiple programs, such as news, movies, sporting events, etc. Select “OFF” to record programs in one file, or select “ON” to record programs in several files according to EPG events.
  • Page 19: Operation While Recording

    User’s Manual Wakeup Mode: Press keys to select Rec or Play. Schedule Start Time/Date: Press arrow key to display date window and select date. To set the time use the remote number keys directly. Duration: Press number keys to input the length of the timer you want to do.
  • Page 20: Playback Recorded File

    User’s Manual Channel Name: Display channel name. File Name: You can rename the file if needed. Press OK key to pop up a keyboard. For de- tailed operations, please refer to 4.7.3 Rename Recorded File. Valid Record Time: Display valid recording time. Past Time: Display past time.
  • Page 21: Edit Recorded File

    User’s Manual 1. Info banner 5. Standard/high definition mode icon 2. File name 6. Watching point time (hh:mm:ss)/total time (hh:mm:ss) 3. File Type 7. Playback progress bar 4. Audio Type 8. Playback functions Skip Forward/Backward 1. Press INFO key to display playback progress bar. 2.
  • Page 22 User’s Manual Group Recorded File 1. Press  keys to select a file. 2. Press Green key to pop up group edit window. 3. Select a group and press OK key to add the se- lected file to this group. 4.
  • Page 23: Time Shift

    User’s Manual 4.8 Pause & Rewind Live TV Press PAUSE , or highlight “Start Time Shift” in PVR hotkey menu and press OK key. The receiver will pause and be able to FF/Rewind. The pause live TV function will buffer up to 1 hour. When you change channels the time shift will be dumped. Time Shift Operation You can perform pause/play, fast backward/forward, etc.
  • Page 24: Digital Photo

    User’s Manual 5.2 Digital Photo Select Main Menu → Multimedia → and press OK. 1. Select Photo key using the up/down arrows 2. Press keys to select a photo file. 3. Press OK key to display it in full screen, or press Blue key for slide show.
  • Page 25: Schedule Program

    User’s Manual 1. Current date and time 2. Detailed information of the selected program 3. Channel list 4. Time slice bar 5. Program list 6. Operation information keys: Select channel keys: Select program OK key: Play current program in full screen or schedule future program Yellow/Green keys: Switch to next/previous day Red Key: Blue Key: Booked list 7.2 Schedule Program...
  • Page 26: Installation

    User’s Manual Press keys to move the cursor to your location and press OK key (Approximate is fine) you can see the technical details for manual positioning of your dish. 4. If you have green solid bars at the bottom of the are ready to go.
  • Page 27: Settings

    User’s Manual 2. Modify TP 1. Press Yellow key to move cursor to parameter list. 2. Press and the number keys to set proper values. 3. Press EXIT key to save the new TP. 3. TP Search Search channels according to the selected TP. 1.
  • Page 28: Factory Default

    User’s Manual 2. Press EXIT key to save and exit. 9.3 Factory Default Warning: This function will restore system settings factory defaults erase schedules. Select Main Menu → Settings → Advance Settings → Factory Default and press OK key, a warning box pops up for confirmation.
  • Page 29: Usb Upgrade

    User’s Manual 10. USB Upgrade Warning: Don’t turn off the receiver during Software upgrade. Notes: • Before operation, please download new version software to root directory of the USB device. USB device should be connected to USB port on rear panel before operation. •...
  • Page 30: Loader Status

    This window displays information about loader, in- cluding Irdeto access loader status and manufacturer loader status in chip ID. Select Main Menu → Settings → Information → Loader Status and press key to enter. All mails received from VAST are displayed in mail information window. Select Main Menu → key to enter.
  • Page 31: Freeview Plus

    User’s Manual 13 Freeview Plus up on missed programs that are shown by Australian search for program functions. Freeview Plus has no subscription charges. 13.1 Green Key Green program recommend and detailed program up/down 13.2 Red Key service when you land on the channel the red the enhanced simply press the Red...
  • Page 32: Network Setup

    User’s Manual 14 Network Setup Wired or Wireless Note for wireless connection you will need the optional SatKing WL-85 wireless dongle. 14.1 Wired LAN Connection 1. Connect your router to the ethernet connection on the rear of the receiver. 2. Press OK on the wired option, if the LAN...
  • Page 33: Appendix

    User’s Manual 15. Appendix 15.1 Troubleshooting/Help No signal E50-32 or E48-32 1. Satellite cable may not be connected. Make sure the satellite cable is connected into the “Sat In 1” port on the rear of the receiver. 2. The wrong LNB setting may be being used. Check your LNB type on the LNB sticker. Normally the LNB will be a wideband 10700, if this is the case no need to change this set- ting and proceed to point 3 below.
  • Page 34 User’s Manual Picture Breaks up 1. The satellite dish needs to be aligned more accurately. Heavy clouds or a rain event will make this worse, this is normally short term. If only some channels break up this also means you need to re-align your dish. 2.The satellite dish size is too small, consult your local dealer on advice on the correct dish size for your area.
  • Page 35 For the receiver to connect to the internet you either need to plug in a network cable to the Ethernet port on the rear of the receiver or use the optional SatKIng USB dongle WL-85. Note: you cant use 3rd party dongles. To set up the internet connection enter the "Settings"...
  • Page 36: Specifications

    User’s Manual Freeview Plus SatKing TV App's Portal Auto Power Saving Twin Tuner Loop Cable Note: If you can’t solve the problems after referring to this trouble shooting section, please contact your local dealer.
  • Page 37 Frequency 950 ~ 2150MHz Symbol Rates 2~45,000 (DVB-S) 2~45,000 (DVB-S2) Level -65 ~ -25dBm Impedance 75Ω Connector IEC 169-24 Female LNB Supply 13V/18V/OFF, 400mA max. LNB Switch 22KHz DiSEqC 1.0,1.1,1.2, USALS Compatible Standard DVB-S EN300421 DVB-S2 EN302307 Demodulation QPSK, 8PSK FEC Mode QPSK-1/2,2/3,3/4,5/6,7/8.
  • Page 38: Acronym

    User’s Manual Data Output IP Data EN-301 192-7 Supported Via RJ-45 Low Speed Data Supported Via RS-232 Conditional Access System Irdeto Secure Silicon 3. HL Version 3 Version USB 2.0 Supply 5Volts, 500mA Max Power Adaptor Input Voltage 100-240V~ 50/60Hz Output Voltage Output Current 2.0A...
  • Page 39 Closed Caption (Subtitles) CVBS Composite Video Broadcast Signal DVBS-2 Digital Video Broadcasting Satellite MPEG4 H.264 DVB-S Digital Video Broadcasting Satellite Electronic Program Guide Free to Air Hard Disk Drive HDMI High Definition Multimedia Interface HDTV High Definition Television Set top Box Remote Control Unit Low Noise Block Television...
