Summary of Contents for Intellijel Audio Interface II

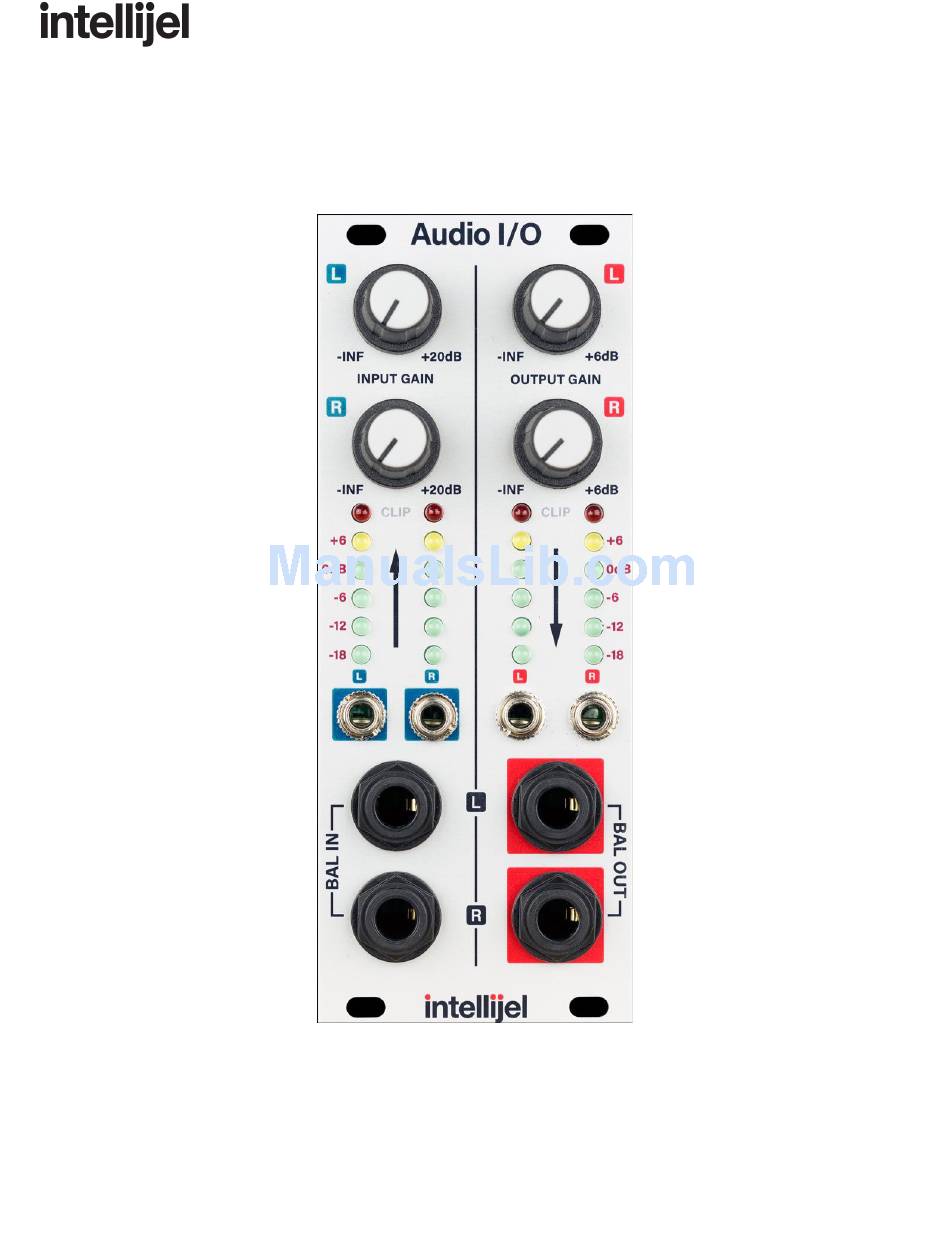

- Page 1 Audio Interface II Manual Audio Interface II Eurorack <-> Line Level Audio Interface Manual Revision: 1.0...
- Page 2 Overview The Audio Interface II allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line level instruments like synths and drum machines, interface to a DAW and much more.
-
Page 3: Table Of Contents
Audio Interface II Manual Table of Contents Overview Features Table of Contents Installation Before Your Start Installing Your Module Front Panel Controls Inputs & Outputs Instruction Input From an External Source Technical Specifications Page 2... -
Page 4: Installation
Audio Interface II Manual Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. Before Your Start Before installing a new module in your case you must ensure your case’s power supply has sufficient available capacity to power the module: ●... - Page 5 The other end of the cable, with a 16-pin connector, connects to the power bus board of your Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: Page 4...
- Page 6 Audio Interface II Manual If you are using another manufacturer’s power supply, check their documentation for instructions. Once connected, the cabling between a module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on both ends and that all the pins are correctly aligned.
-
Page 7: Front Panel
Audio Interface II Manual Front Panel Page 6... -
Page 8: Controls
Audio Interface II Manual Controls 1. INPUT GAIN L/R These knobs set the gain of the signal coming in to the modular via the B AL IN L/R jacks. The knob range is from -∞ (no signal) to +6 dB. The signal levels are indicated on the meters above the ... -
Page 9: Instruction
Instruction The Audio Interface II is divided into two halves that function independently. The left side is the Input side which takes signals from line level sources such as sound cards, synthesizers, or mixers, and converts them to modular level. The right side is the O utput side and takes signals from modular level sources and converts them to line level for sending to a sound card, mixer, or other outboard processor. -
Page 10: Technical Specifications
Audio Interface II Manual Technical Specifications Width 10 hp Maximum Depth 44 mm Current Draw 50 mA @ +12V 50 mA @ -12V NOTE: Nominal current draw is 50mA @ +12V, but the current draw with all 24 LEDs lit is...
