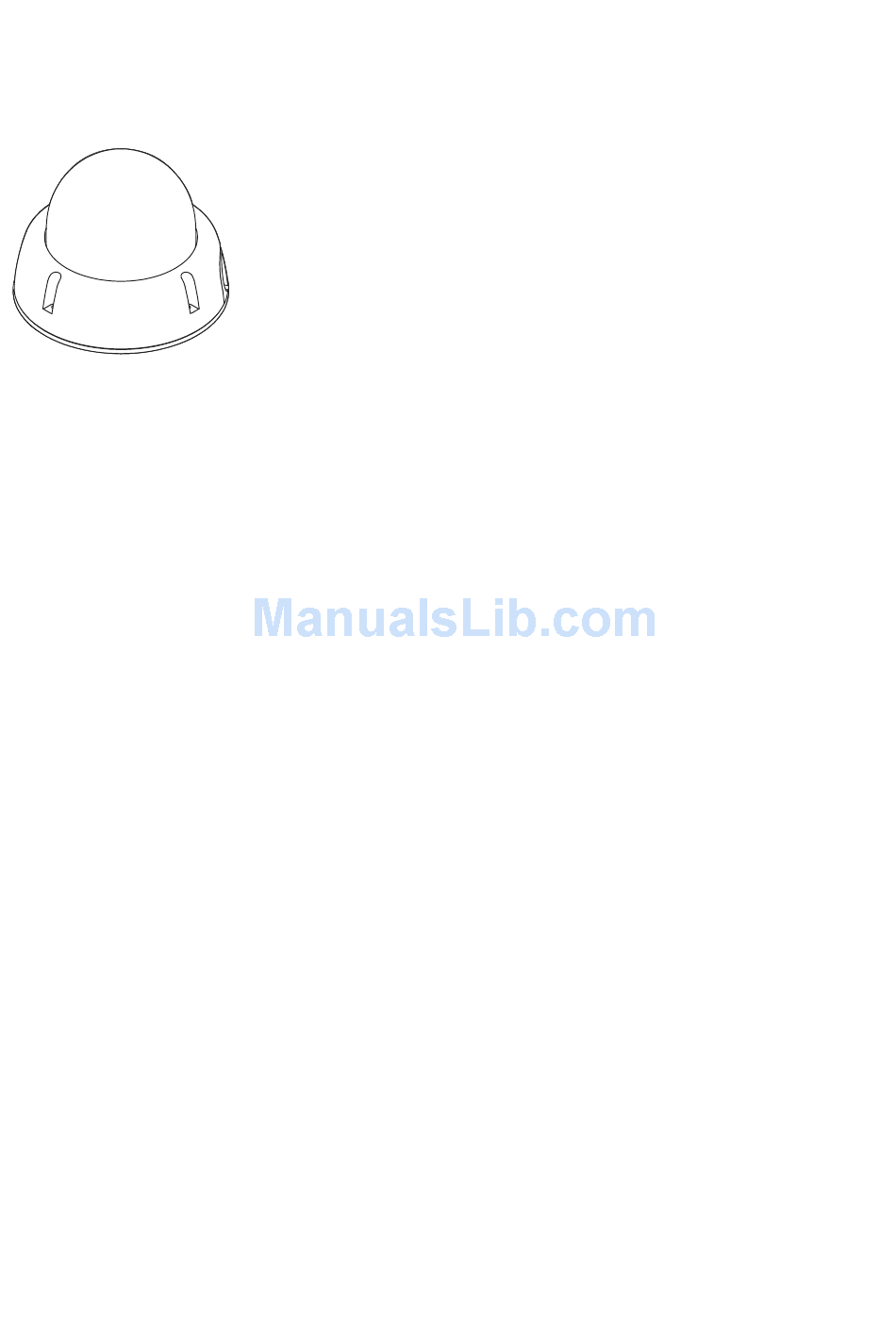

- Page 1 1M HD IP Fixed Outdoor IR Dome Camer a User’s Manual Ver. 1.0 / 2015.08 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 2: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and... -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions. - Page 4 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
-
Page 5: Product And Accessories
Introduction - Product & Accessories Camera Cables Template Sheet Torx Wrench for Installing by Bolt & Nut Screw & Plastic Anchor-4pcs Manual CD Quick Manual... -
Page 6: Part Name
Introduction - Part Name Dome Cover Gimbal Lens NPT Plug Tilt Stopper Screw Bottom Case Reset Button DC Power Cable RJ-45 Cable... -
Page 7: Disassemble The Camera
Installation - Disassemble the camera Before installing your camera, you have to read the following cautions. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise 3. When installing your camera, don’t allow any person to approach the installation site. If you have any valuable things under the place, move them away. -
Page 8: Installation
Installation - Installation Disassemble the camera. See the section ‘Installation - Template Sheet Disassemble the camera’ for details. Using the template sheet, make the cabling hole on the wall/ceiling. Connect the network cable and power cable respectively. See the section 'Installation - Cabling' for details. - Page 9 Installation - Cabling Two Options Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2.
-
Page 10: Network Setup
Network Setup - IP Installer 1. Run IP Installer Run the manual CD and IP installer in S/W folder. Change the port as necessary when the network type is set to STATIC. Click on Network Adaptor selection Menu (NIC) after run A ‘Port Forwarding’... -
Page 11: Quick Start Of Network Connection
Network Setup - Quick Start of Network Connection Please follow the steps below to complete Access your IP Camera via the Internet : the initial setup of the network function. If you use a static IP address assigned by your ISP 1) Open Internet Explorer. -
Page 12: Ddns Registration
Network Setup - DDNS Registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. t, you have to check if you are using dynamic addressing. -
Page 13: Guide To Network Environment
Network Setup - Guide to Network Environment Please configure the IP Camera at the 5. The following descriptions are several basic network scenarios. Determine which scenario describes your network. installation site. You must determine your If your network does not match one of the scenarios below network scenario in order to configure the IP and you are unsure how to setup your IP Camera, contact Camera with the proper TCP/IP settings. - Page 14 Network Setup - Setup Case A, B Case A: as follows : Dynamic IP + Personal Router [Most SOHO] Network Type : STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Camera Internet Address : A private IP address such as 192.168.0.200 (Example) You need to assign an IP address to the IP Camera just as you do...
- Page 15 Network Setup - Setup Case C, D Case C: Case D: Static(Fixed) IP [Dedicated line directly Dynamic IP + DSL/Cable Modem [Connected to the IP Camera] directly to the IP Camera] Camera Camera Phone Line or CATV Cable/xDSL Modem (ISP Provided) Public Line Gateway or Router at ISP...
-
Page 16: Port Forwarding
Network Setup - Port Forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’(Cases A, B). Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP IP Camera TCP/IP Settings IP Address Subnet Mask... -
Page 17: Starting Ip Camera
Network Setup - Starting IP Camera After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration. -
Page 18: Basic Screen
Web Viewer Screen - Basic Screen Web viewer is optimized with explorer10 or above version Video stream button. Select a stream produced from the and Chrome. camera between Stream 1 ~ 3 to display it in the live view screen. Live video display. - Page 19 Setup - Video Detail Page If Bitrate Control is set to be CBR, you can set the Target Bitrate. Setup Constitution Basic [ VIDEO / OSD / MOTION ] Camera [ IMAGE SETTINGS / DAY&NIGHT SETTINGS / COLOR SETTINGS ] Network [ STATUS / NETWORK SETTINGS / RTSP SETTINGS / DDNS ] System...
- Page 20 Setup - Video Live Video Channel Setup Resolution Select the video resolution. combination of codec and resolution. Available resolution can be depends on the codec setup between The camera performance has to be considered when setting the channels. NTSC camera. 720p 1280 x 720 1280 x 720...
- Page 21 Setup - Video Bitrate Mode GOP(Group of Pictures) Size Select the bit rate control scheme of video compression Set up the number of frames (P-frame) which contain only from CBR (Constant Bit Rate) or VBR (Variable Bit Rate). changed information based on basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size bigger, only the number of P-frames is bigger.
- Page 22 Setup - OSD Con guration Date/Time Display the current time. When Date/Time is displayed, deletion of the motion detection mask on the area of Date/Time display are strongly recommended to prevent misdetection on changing numbers. User Text Output the TEXT entered by the user. Support a maximum of 16 characters.
-
Page 23: Motion Detection
Setup - Motion Detection If you using IE, you can’t change the motion area. High value is selected, it will detect very small motion while Motion Detection. It shows the Motion event status. it becomes relatively insensitive when Low value is selected. Event Alert Icon( ) appears on the screen if ‘Motion Detection’... - Page 24 Setup - Motion Detection Area Setup. Setup the target area of motion detection. <How To Setup> 1) If ‘Set’ button is clicked, Live screen shows grids to help area setup. 2) By clicking or dragging mouse on the grids, create or erase the masks on the main view.
-
Page 25: Camera Image Settings
Setup - Camera Image Settings IRIS Mode Contrast ESC (Electronics Shutter Control): The shutter speed is Using this control, contrast of image can be adjusted to controlled automatically according to the brightness of the scene. DC (Auto Iris): If the lighting conditions are very bright BLC (Back Light Compensation) the lens will close the iris to reduce the amount of light When the background is too bright or the object is too... - Page 26 Setup - Camera Day & Night Settings Day & Night B/W Level Auto: It is a level to change Day mode into Night mode when depending on the light condition around. Day & Night mode is Auto. Day: Transition Time sensor all the time.
- Page 27 Setup - Camera Color Settings White Balance RGB Gain Auto: The camera performs white balance automatically. White Balance can be set only when the White Balance Outdoor: WB will be done under the assumption of the Sun light. for White Balance. Indoor: WB will be done under the assumption of the Click ‘Save’...
-
Page 28: Network Status
Setup - Network Status This menu will show you all the information of Network setting in the camera. However, you cannot change those here. -
Page 29: Network Settings
Setup - Network Settings Network Type Preferred DNS Server De ne network IP address type from the Static Mode for the De ne the DNS server IP address. Format is same as the IP xed IP or the Dynamic Mode by the dynamic IP address. address. -
Page 30: Rtsp Settings
Setup - RTSP Settings RTSP Session TimeOut Click ‘Apply’ to make above setting e ective. Check on the check box to enable ‘RTSP Settion Timeout’ function. You can check the connection status of RTSP. RTSP Setup The RTSP port can be set to 554 which default or in between 1025 to 60000. - Page 31 Setup - DDNS Con guration DDNS Disable If it is selected, DDNS service does not work. Public DDNS To use public DDNS service, select a site address listed in the list. After lling out the Host Name of the site, the setup is completed by entering User Name and Password registered in that DDNS site.
-
Page 32: System Information
Setup - System Information System Capability information. -
Page 33: Firmware Update
Setup - Firmware Update Firmware Version Warning: It shows the current Firmware Version in the system. 1. Do not turn o the power of camera during the Firmware update. Otherwise, the system can be stuck to be unstable. Firmware Filename If updating is nished, the system will be rebooted Designate the Firmware le name in your computer by automatically. -
Page 34: Date And Time Settings
Setup - Date & Time Settings Timezone Setup Synchronize with the time server Choose Timezone for camera. It will be activated after Choose time server available to connect to current camera. clicking ‘Apply’ button. Date & Time will be updated automatically every hour Prior to setting below ‘New Camera Date &... -
Page 35: Users Management
Setup - Users Management ID / Password Change The ID and Password are limited to 16 Click ‘Save’ to save the current settings. Click 'cancel' to return to the previous setting. -
Page 36: Factory Reset
Setup - Factory Reset Reset to the factory defaults Return the setup to the factory default. Reset all Settings to the factory defaults. Except Network Settings Except Network related settings , reset all others to the factory default. Only camera settings Reset only camera related settings to the factory defaults. - Page 37 Setup - Restart If you click the ‘RESTART’ menu, a message box will be shown to con rm. Click the ‘Ok’ button to restart.
- Page 38 Appendix A : Current TCP/IP Settings If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address. For information on how to do this, please read the FAQ. 1. Windows 2000 or XP Users 2.
-
Page 39: B : Changing Ip Address And Subnet Mask
Appendix - B : Changing IP address and subnet mask 1. Windows 2000 or XP Users 2. Windows Vista or 7 Users Start Start Control Panel Control Panel Network and Network and Dial-up sharing center Connection or Network Connection Manage network connections Right-click Local Area Connection... -
Page 40: C : Port Forwarding
Appendix - C : Port Forwarding After assigning the IP Camera a web server For Linksys BEFSR41 Cable/DSL routers: port and video server port you must use Port 1) Open a web browser and type http://192.168.1.1 into you Forwarding. (for cases A, B) Address bar. - Page 41 Appendix - C : Port Forwarding For Netgear RP614 routers: 1) Input http://192.168.0.1 in address bar of web browser. http://192.168.0.1 is the default IP address. 2) If it asks ID and password, input admin as ID and password as password. 3) Click “Port Forwarding”...
- Page 42 Appendix - My POWER light is not on? How do I “PING” an IP address? Power is not being supplied to the unit. Please use the power 1) Open an MS-DOS (or Command) prompt supply shipped with the unit and verify that a power source 2) At the prompt type - “ping xxx.xxx.xxx.xxx”...
- Page 43 ations - Dimension Unit: mm 61.8 108.8 ø145...
