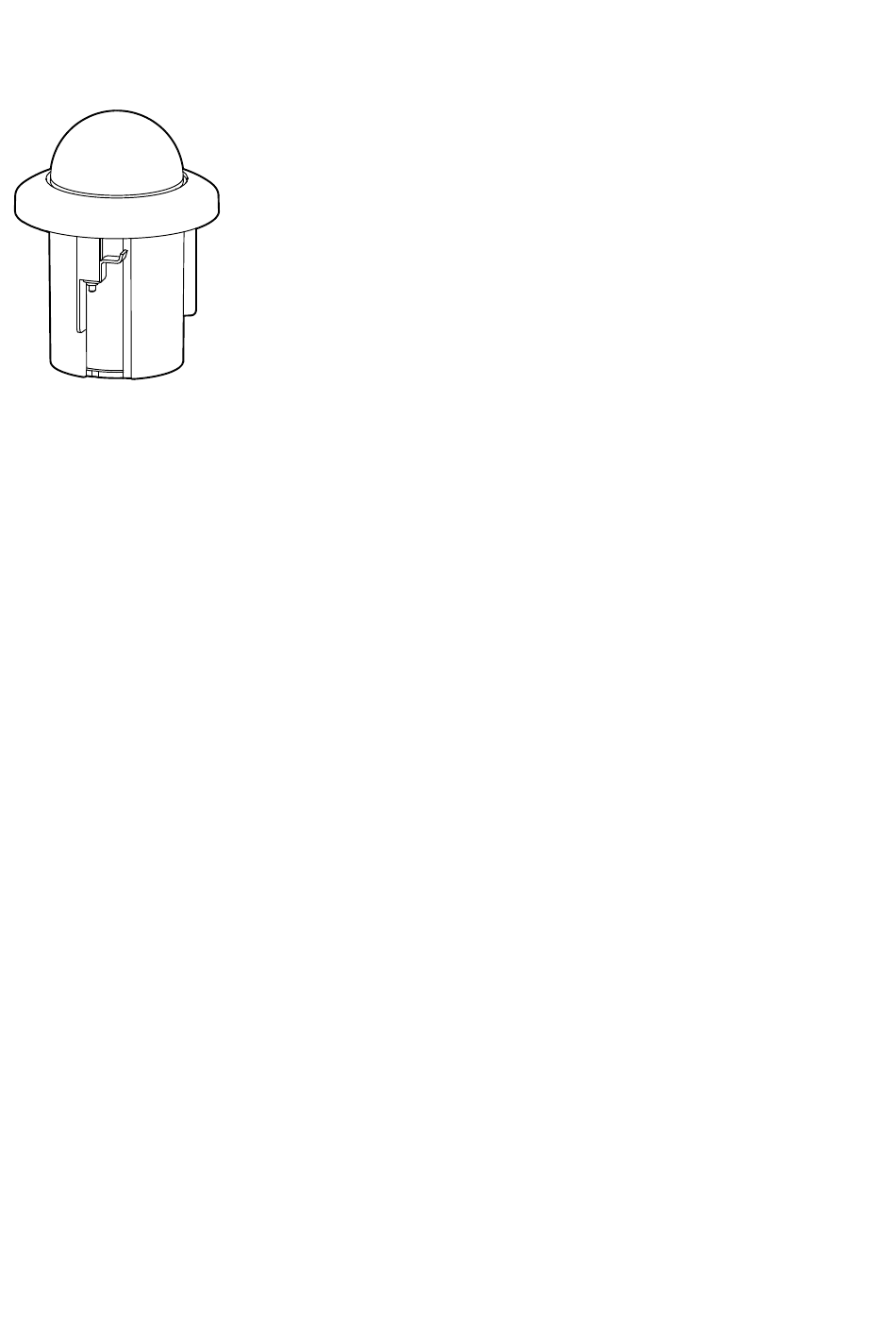

- Page 1 2.0M HD SDI Fixed Indoor Drop Ceiling Camera User’s Manual Ver. / 2014.0 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 2: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and... -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions. - Page 4 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
-
Page 5: Product And Accessories
Introduction - Product & Accessories Screw & Plastic Anchor-2pcs Template Sheet Dome Cover Terminal Block Manual CD Quick Manual Camera Deco-rings (White & Black) OSD Joy (Option) - Page 6 Introduction - Part Name Dome Deco-ring Tilt Stopper Screw Gimbal Lens Handle Body Hook Head Screw Flush Mount Bracket...
-
Page 7: Before Installation
Installation - Before Installation Before installing your camera, you have to read the following cautions. 1. You have to check whether the location can bear ve times of the weight of your camera. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or re. - Page 8 Installation - Installation Using Screw Disassemble the camera. See the section ‘Disassemble the Camera’ for details. Using the template sheet, make the ush mount bracket hole on the ceiling. Template Sheet After inserting the cables through ush mount bracket into the ceiling hole and fox the ush mount bracket on the ceiling using the screws provided.
- Page 9 Installation - Installation Using Hooks Disassemble the camera. See the section ‘Disassemble the Camera’ for details. Using the template sheet, make the hole on the ceiling. Template Sheet After inserting the cables through ush mount bracket, insert the ush mount bracket into the ceiling hole. To hook the ush mount bracket, push and turn head screw clockwise using the +driver.
- Page 10 Installation - Cabling Terminal HD-SDI Block Power RS-485 HD-SDI RS-485 Communication Connects to video output device such as a monitor using a Connects to device such as DVR or Keyboard Controller. BNC coaxial cable. Power Power Connection - DC 12V.
-
Page 11: Check Points Before Operation
OSD - Check Points before Operation Check Points before Operation 1. Before power is applied, please check the cables carefully. 2. The camera ID of the controller must be identical to that of the camera to be controlled. The camera ID can be check in the system information of OSD menu. -
Page 12: General Rules Of Menu Operation
OSD - General Rules of Menu Operation This page explains how to operate the OSD menu using MENU keyboard controller. If there are no keys or functions described below, refer the manual of the keyboard SYSTEM INFO DISPLAY SETUP controller. MOTION SETUP FUNCTION SETUP Move the Cursor Up/Down to Choose Menu... - Page 13 OSD - MENU MENU MENU Setup the general functions of camera module. EXPOSURE EXPOSURE WDR/BLC DAY&NIGHT Start ‘EXPOSURE’ setup screen. WHITE BAL AUTO IMAGE WDR / BLC MOTION OFF : HLC / BLC / WDR OFF. SETUP HLC : High Lux Masking masks areas in the image that are overly RETURN exposed to light.
- Page 14 OSD - MENU > EXPOSURE EXPOSURE MENU SHUTTER EXPOSURE SHUTTER AUTO : The shutter’s speed adjusts automatically based on WDR/BLC the light available. DAY&NIGHT WHITE BAL AUTO SHUTTER MANUAL : The shutter speed can be adjusted between IMAGE 1/30~1/60000. MOTION SETUP SENS-UP RETURN...
- Page 15 OSD - MENU > DAY&NIGHT DAY&NIGHT MENU MODE EXPOSURE AUTO : The camera switches between day and night automatically WDR/BLC depending on the level of light. DAY&NIGHT WHITE BAL AUTO COLOR : The camera always stays in day mode (Color). IMAGE B&W : The camera always stays in night mode (B/W).
- Page 16 OSD - MENU > IMAGE IMAGE MENU C-ABERR EXPOSURE It adjusts chromatic aberration. WDR/BLC DAY&NIGHT MIRROR WHITE BAL AUTO IMAGE Flip the image horizontally. MOTION SETUP FLIP RETURN Flip the image vertically. D-ZOOM It controls Digital Zoom. Select ‘IMAGE’ GAMMA WDR and press the ‘NEAR’...
- Page 17 OSD - MENU > SETUP SETUP MENU COM. EXPOSURE Start COM. WDR/BLC DAY&NIGHT OUTPUT MODE WHITE BAL AUTO IMAGE Select output resolution. MOTION SETUP FREQUNCY RETURN Select 60Hz for NTSC, or 50Hz for PAL. CAMERA SETUP Start CAMERA SETUP. Select ‘SETUP’ RESET and press the ‘NEAR’...
- Page 18 Specifications - Dimension Unit: mm ø90 114.5...
