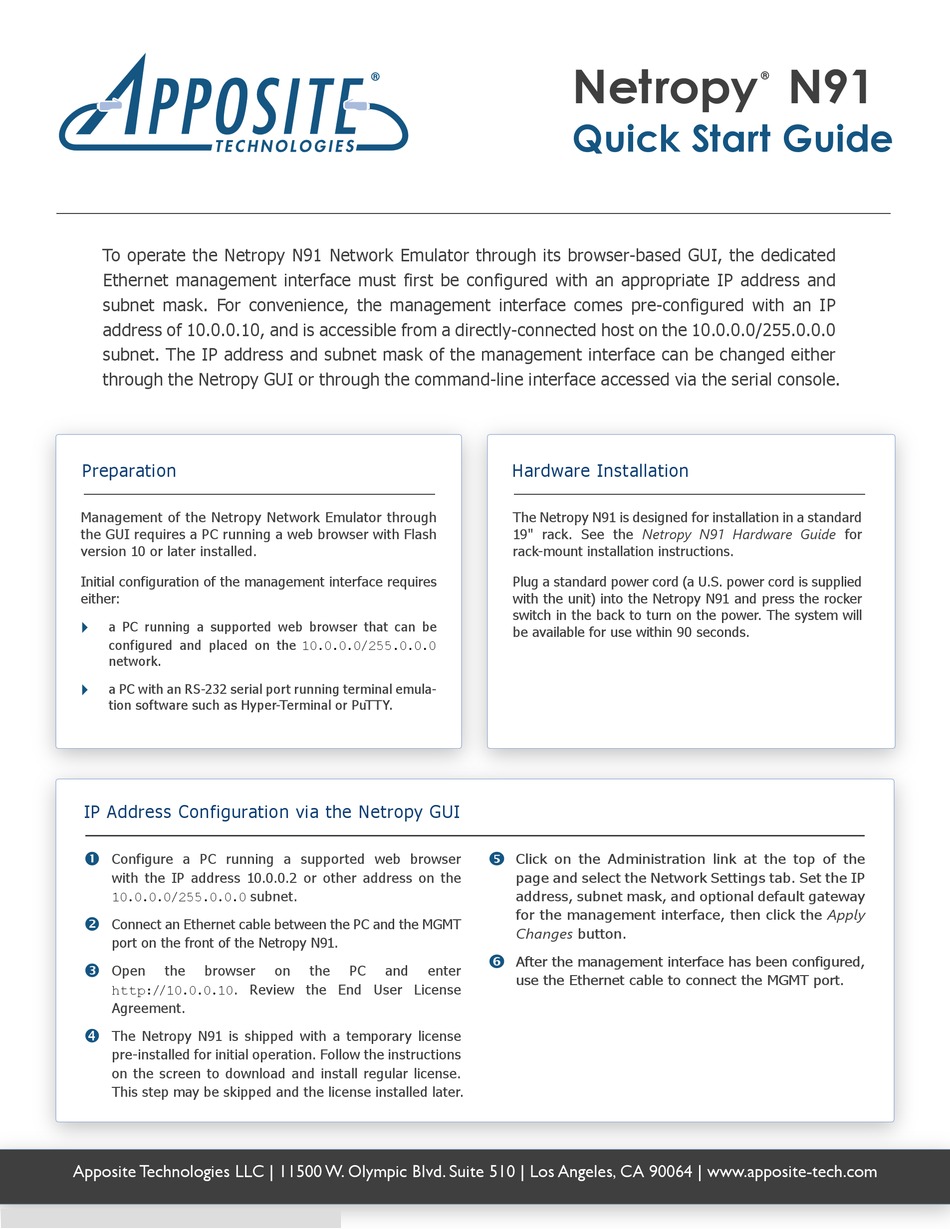

Apposite Netropy N91 Quick Start Manual

To operate the Netropy N91 Network Emulator through its browser-based GUI, the dedicated
Ethernet management interface must first be configured with an appropriate IP address and
subnet mask. For convenience, the management interface comes pre-configured with an IP
address of 10.0.0.10, and is accessible from a directly-connected host on the 10.0.0.0/255.0.0.0
subnet. The IP address and subnet mask of the management interface can be changed either
through the Netropy GUI or through the command-line interface accessed via the serial console.
Preparation
Management of the Netropy Network Emulator through
the GUI requires a PC running a web browser with Flash
version 10 or later installed.
Initial configuration of the management interface requires
either:
 a PC running a supported web browser that can be
configured and placed on the
network.
a PC with an RS-232 serial port running terminal emula-

tion software such as Hyper-Terminal or PuTTY.
IP Address Configuration via the Netropy GUI

Configure a PC running a supported web browser
with the IP address 10.0.0.2 or other address on the
10.0.0.0/255.0.0.0 subnet.

Connect an Ethernet cable between the PC and the MGMT
port on the front of the Netropy N91.
 Open the browser
http://10.0.0.10. Review the End User License
Agreement.

The Netropy N91 is shipped with a temporary license
pre-installed for initial operation. Follow the instructions
on the screen to download and install regular license.
This step may be skipped and the license installed later.
Apposite Technologies LLC | 11500 W. Olympic Blvd. Suite 510 | Los Angeles, CA 90064 | www.apposite-tech.com
10.0.0.0/255.0.0.0
on the PC and enter
Netropy N91

Quick Start Guide

Hardware Installation

The Netropy N91 is designed for installation in a standard
19" rack. See the Netropy N91 Hardware Guide for
rack-mount installation instructions.
Plug a standard power cord (a U.S. power cord is supplied
with the unit) into the Netropy N91 and press the rocker
switch in the back to turn on the power. The system will
be available for use within 90 seconds.

Click on the Administration link at the top of the
page and select the Network Settings tab. Set the IP
address, subnet mask, and optional default gateway
for the management interface, then click the Apply
Changes button.

After the management interface has been configured,
use the Ethernet cable to connect the MGMT port.
