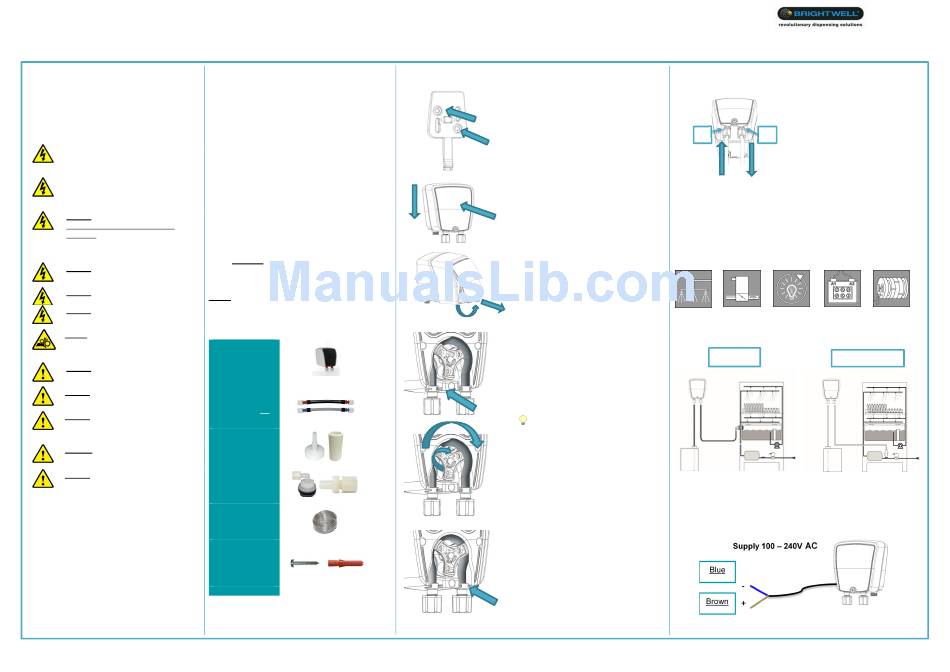

Brightwell Quantura Q10 Quick Start Manual

Quick Start Guide for Q10 & Q10+ English
Safety Notes
This appliance can be used by children age from 8
years and above and persons with reduced
physical, sensory or mental capabilities or lack of
IMPORTANT:
experience and knowledge if they have been given
supervision or instruction concerning use of the
Please read the following precautions
appliance in a safe way and understand the
carefully before using this equipment.
hazards involved. Children shall not play with the
appliance. Cleaning and user maintanence shall
This unit contains high voltage
not be made by children without supervision.
circuits that may expose you to the
danger of electric shock.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
Means for disconnection must be
qualified persons in order to avoid hazard.
incorporated in accordance with the
wiring rules.
Before Installation
Do not open the enclosure without
isolating the signal and supply
Ensure you have checked all parts required are
sources. Ensure that these sources
present and inspect for any damage before
have been isolated for at least 5
installation. In the unlikely event your items are
minutes before entering the enclosure.
faulty, DO NOT install faulty or damaged parts as
Do not power the unit outside of the
this unsafe and will void any warranty. Please
values stated on the rating label.
return to your distributor in the original delivery
condition including any packaging. This unit is
Do not use damaged or frayed cables.
ONLY to be installed by a suitably qualified person
complying with local regulations.
Do not dismantle or modify this
equipment.
Never insert fingers into mechanisms
without turning the power supply off
first.
Do not mount the unit to unstable,
irregular or non-vertical surfaces.
Do not place heavy objects on top of
the unit.
Do not attempt to place items (such as
screwdrivers) into the moving parts of
the pump head.
Always ensure that care is taken when
handling chemicals.
Do not discard of the manual, this
must be retained.
This unit must be installed by suitably qualified
personnel in accordance with local regulations,
or in the absence of local regulations, installed
in accordance with the applicable requirements
in the National Electrical Code, NFPA 70,
Canadian Electrical Code (CEC), Part 1, CSA
C22.1, and Standard for Ventilation Control
and Fire Protection of Commercial Cooking
Operations, NFPA 96.
Quantura Q10 & Q10+ Dishwash Dosing System
Quantura
Q10 & Q10+
Peristaltic
tubing
× 1
(Silicone 5mm OR
Norprene 3mm)
Ceramic weight
and foot filter
× 1
Rinse or
Detergent
Injector
× 1
Polyethylene
Tubing
3000mm × 1
Fixings Pack:
Screws × 2
Wall plugs ×2
Installation
Mounting and connection
Step 1:
Using the wall plugs and screws
specified for this unit, fix the mounting
bracket to the wall. There is an embedded
spirit level to aid with this part of the
installation.
Step 2:
Mount the unit to the wall by
hooking it onto the wall bracket. As you push
the unit down you should hear a click sound.
Step 3:
Ensure there is no power to the
unit Remove front cover by turning thumb
screw anti-clockwise and pulling the front
cover towards you as shown.
Step 4:
Insert one end of the tube ensuring
that it is slotted into the body of the
enclosure as shown.
Step 5:
Now by manually rotating the pump
head, feed the tube into the unit as shown.
TIP use some HT5 Silicone grease on the
outer of the tube to help ease the tube in and
prevent any snagging.
Step 6:
Now insert the other end of the
tube ensuring that it is slotted into the body
of the enclosure as shown.
IMPORTANT INFORMATION:
Dispensers Ltd (manufacturer) accepts no
responsibility and/or damages caused to
either the product or premises if the
installation process is not complied with in
full.
.
Connecting Chemicals
A B
Installation connection
Should the supply cord be damaged, it should be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
SPEED
Rinse Rake Solenoid Wash Cycle
Valve Run Lamp
Detergent
Power Supply
Should the supply cord be damaged, it should be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
Brightwell
Step 1:
Ensure there is no
power to the unit, connect the
suction tube from the detergent
or rinse container to (A). Now
connect the delivery tube from
(B) to the injection point.
TIMED
Coil of Wash Cam Timer
Contactor
Rinse Aid Dosing
M00015-EN-22/03/17-V1.1
