Summary of Contents for Schumacher SPI1024

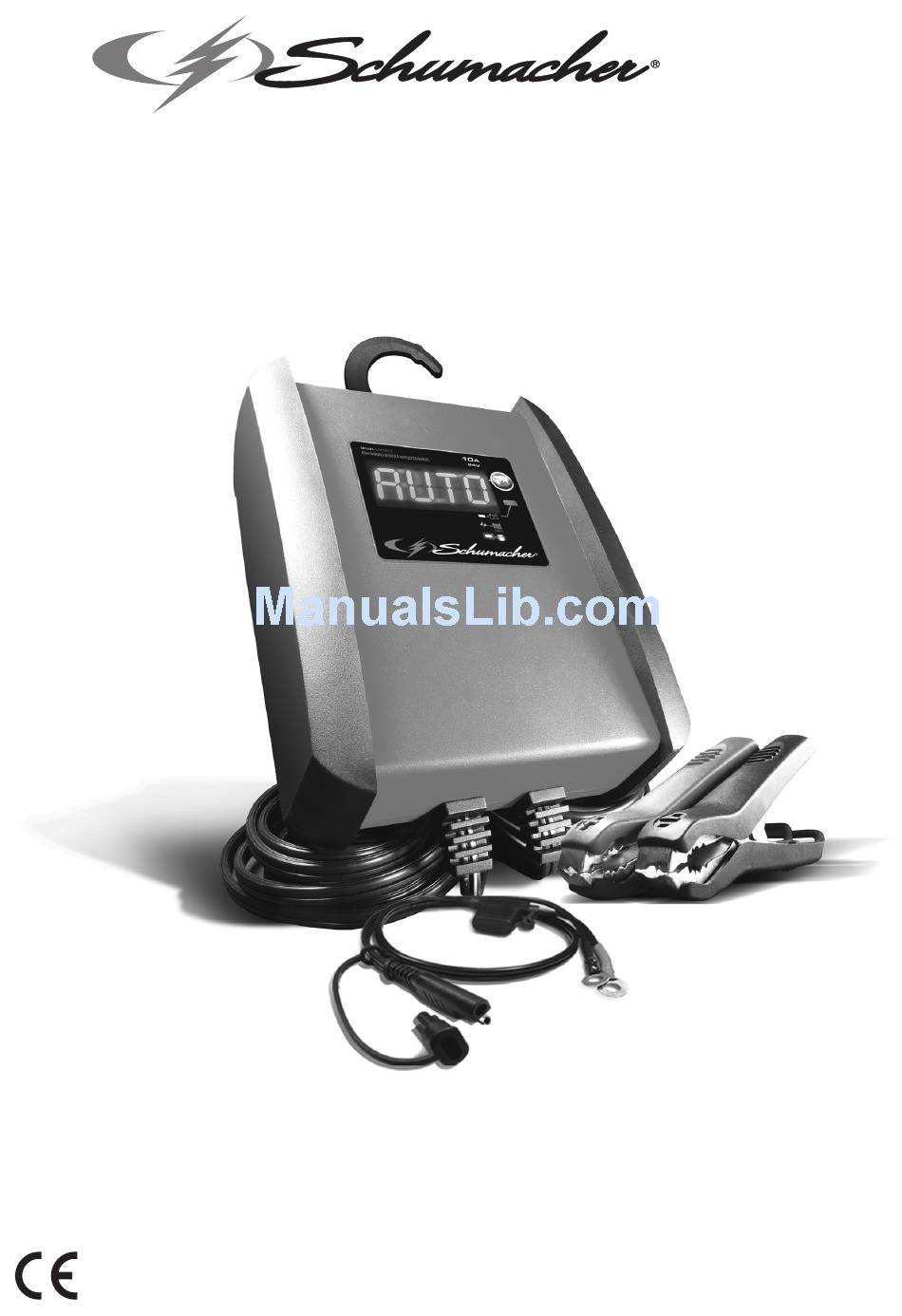

- Page 1 MODEL SPI1024 Automatic Battery Charger OWNERS MANUAL PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the battery charger safely and effectively. Please read and follow these instructions and precautions carefully. 0099002045-00...
-
Page 2: Table Of Contents
CONTENTS MARKINGS AND SYMBOLS ....................3 IMPORTANT SAFETY INSTRUCTIONS ................4 PERSONAL PRECAUTIONS ....................5 PREPARING TO CHARGE....................5 CHARGER LOCATION ......................6 DC CONNECTION PRECAUTIONS ..................6 FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN THE VEHICLE....6 FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE OF THE VEHICLE. -
Page 3: Markings And Symbols
Markings and symbols Read manual Caution, Do not For indoor Warning Class II before using. risk of electric expose use only. Charger shock. to rain. Contact the equipment supplier for details on how to properly dispose Use in a Keep away from of this product within well-ventilated sparks and flame –... -
Page 4: Important Safety Instructions
1.4 Do not expose the charger to rain or snow. 1.5 Use only recommended attachments. Use of an attachment not recommended or sold by Schumacher Electric Corporation may result in a risk of fire, electric shock or injury to ®... -
Page 5: Personal Precautions
2. PERSONAL PRECAUTIONS RISK OF EXPLOSIVE GASES. WARNING 2.1 NEVER smoke or allow a spark or flame in the vicinity of a battery or engine. 2.2 Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid or lithium ion battery. These batteries can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn. -
Page 6: Charger Location
4. CHARGER LOCATION WARNING WARNING WARNING RISK OF EXPLOSION AND CONTACT WITH BATTERY ACID. 4.1 Locate the charger as far away from the battery as the DC cables permit. 4.2 Never place the charger directly above the battery being charged; gases from the battery will corrode and damage the charger. 4.3 Do not set the battery on top of the charger. -
Page 7: Follow These Steps When Battery Is Outside Of The Vehicle
FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE OF THE VEHICLE. WARNING WARNING WARNING A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY: 7.1 Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually has a larger diameter than the NEGATIVE (NEG, N, -) post. -
Page 8: Features
The charger does not have an ON/OFF switch. The On and Off commands are controlled by plugging the SPI1024 into an AC electrical wall outlet only after the battery connections have been made. Do not start the vehicle with the charger connected to the AC outlet, or it IMPORTANT may damage the charger and your vehicle. - Page 9 USING THE QUICK-CONNECT CABLE CONNECTORS Connect any of the output cable assemblies to the charger in seconds. Never connect the clip and ring terminal connectors together for use in other IMPORTANT applications, such as external battery or other power source charging, or to extend the output cable length, as reverse polarity and/or overcharge conditions will occur.
-
Page 10: Display Messages
MAINTAINING A BATTERY The SPI1024 maintains 24 volt batteries, keeping them at full charge. It is not recommended for industrial applications. NOTE: The maintain mode technology allows you to safely charge and maintain a healthy battery for extended periods of time. - Page 11 NOTE: To change the language on the display, press and hold the Language button for 5 seconds. (EN→ DE→ FR→ NL→ ES→ IT). GERMAN (DE) KLEMMEN VERBINDEN WARNUNG - KLEMMEN VERKEHRT VERBUNDEN BATTERIE WIRD ANALYSIERT LADUNG BEI - XX% VOLLGELADEN - AUTOM. ERHALTUNGSLADUNG LADUNG ABGEBROCHEN - BATTERIE DEFEKT BATTERIE NICHT VERBUNDEN FRENCH (FR)
-
Page 12: Maintenance Instructions
ITALIAN (IT) COLLEGARE MORSETTI AVVISO - MORSETTI INVERTITI ANALISI BATTERIA IN CARICA - XX% CARICA COMPLETATA - AUTO MANTENIMENTO CARICA INTERROTTA - BATTERIA NON IN BUONO STATO BATTERIA SCOLLEGATA 14. MAINTENANCE INSTRUCTIONS 14.1 Cleaning and user maintenance should not be done by children without supervision. 14.2 After use and before performing maintenance, unplug and disconnect the battery charger (see sections 6, 7 and 8). -
Page 13: Troubleshooting
17. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE REASON/SOLUTION Battery connectors do not The charger is equipped with an No problem; this is a normal spark when touched together. auto-start feature. It will not supply condition. current to the battery connectors until a battery is properly connected. The connectors will not spark if touched together. -
Page 14: Limited Warranty
20. LIMITED WARRANTY WARRANTY TERMS AND CONDITIONS Schumacher Electric Corporation (the “Manufacturer”) or the resellers authorized by the Manufacturer (the “Reseller”) warrant this Charger (the “Product”) for two (2) years, according to the following stipulations. Any and all warranties, other than the warranty included herein, are hereby expressly disclaimed and excluded to the fullest extent permissible under applicable law. -
Page 15: Declaration Of Conformity
Cory Watkins, President March 31, 2016 Hereby declares that the equipment Model SPI1024 is compliant to the DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 (RoHS) on the restriction of the use of certain hazardous substances in electrical and electronic equipment while: The parts do not exceed the maximum concentrations of 0.1% by weight in homogenous...
