Description :

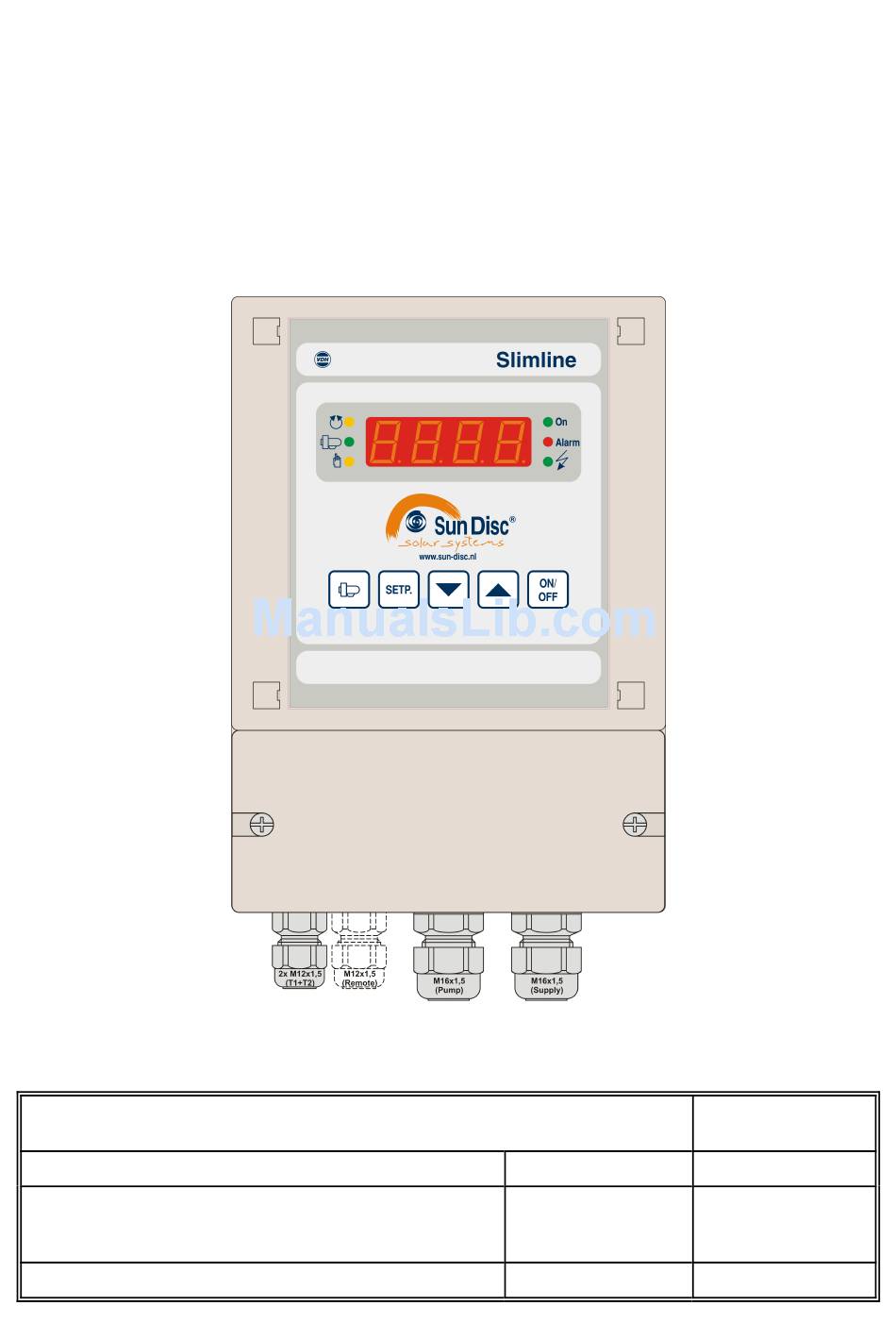

Slimline, thermostat for swimming pool heating.
Wall mounting, terminals below.
Type:
INSTALLATION INSTRUCTIONS
File:
Do081215 Slimline v1.2 EN.wpd
Software:
MC385 SunDisc Slimline Version:
V2.05
VDH Products BV - Roden - Holland
®
SunDisc
Solar Systems BV
Slimline
wall mounting
Installation instructions/user manual
Number of pages: 10
By:
HN
Initials:
Doc. no.:
081215
Version:
V1.2
Date:
31-10-2011
File:
Doc'07
Advertisement
Table of Contents
Related Manuals for SunDisc Slimline
Summary of Contents for SunDisc Slimline
- Page 1 ® SunDisc Solar Systems BV Slimline wall mounting Installation instructions/user manual Description : Slimline, thermostat for swimming pool heating. Doc. no.: 081215 Wall mounting, terminals below. Type: INSTALLATION INSTRUCTIONS Number of pages: 10 Version: V1.2 File: Do081215 Slimline v1.2 EN.wpd...
-
Page 2: Table Of Contents
Document no. : 081215 Version : V1.2 ® Slimline Client : SunDisc Solar Systems BV Page : 2 of 10 Contents Technical specifications ............3 Functional specifications . -
Page 3: Technical Specifications
Slimline Client : SunDisc Solar Systems BV Page : 3 of 10 Technical specifications General Type : Slimline (MC 385) Housing : Grey plastic Connections : Terminals underneath Material : ABS Dimensions : 131 x 185 x 92,5 mm (whd) -
Page 4: Functional Specifications
Installation. On the connection diagram for the Slimline specifies how the power supply, the pump, the sensors and an optional Remote Display have to be connected. Make sure that the controller can be disconnected from the power supply, by a maintenance switch or by connecting the power supply of the controller by a cable with a plug for an wall outlet. -
Page 5: Operation
After activating the controller it will show, within several seconds, the measured pool temperature (Sensor-1) in the display. Control elements. The Slimline can be operated via 5 buttons on the front panel. These buttons are: ON/OFF - To switch the controller on/off, indicated by the On LED. -
Page 6: Operating The Pump Control
Installation instructions Document no. : 081215 Version : V1.2 ® Slimline Client : SunDisc Solar Systems BV Page : 6 of 10 3.5 Operating the pump control. The PUMP button is used for switching between pump modi. The following pump modes are possible;... -
Page 7: Programming Internal Settings
SETP. button. To change the value, the SETP. button must be pressed simultaneously with the UP and/or DOWN button. ® If, after 20 seconds, no button is pressed, the Sundisc Slimline will return to its normal operating mode. 4.1 Parameter table. -
Page 8: Operating Principle
To put to use, both sensor deviations only ® have to be set on the regulator by the Dealer if this has not already been done by SunDisc The offset for the collector sensor (T1) must be corrected under parameter 01. -
Page 9: Alarms
Client : SunDisc Solar Systems BV Page : 9 of 10 Alarms Error messages. The following error messages may appear in the Slimline display: Code Alarm Action Pool temperature The pump is turned off in automatic pump operation mode, only sensor defect manual pump operation is still possible. -
Page 10: Connections Diagram
Installation instructions Document no. : 081215 Version : V1.2 ® Slimline Client : SunDisc Solar Systems BV Page : 10 of 10 Connections diagram Connections of the SLIMLINE wall mounting model drawing 072421w6 -.-.-.-.-.-.-.-.-.-...
