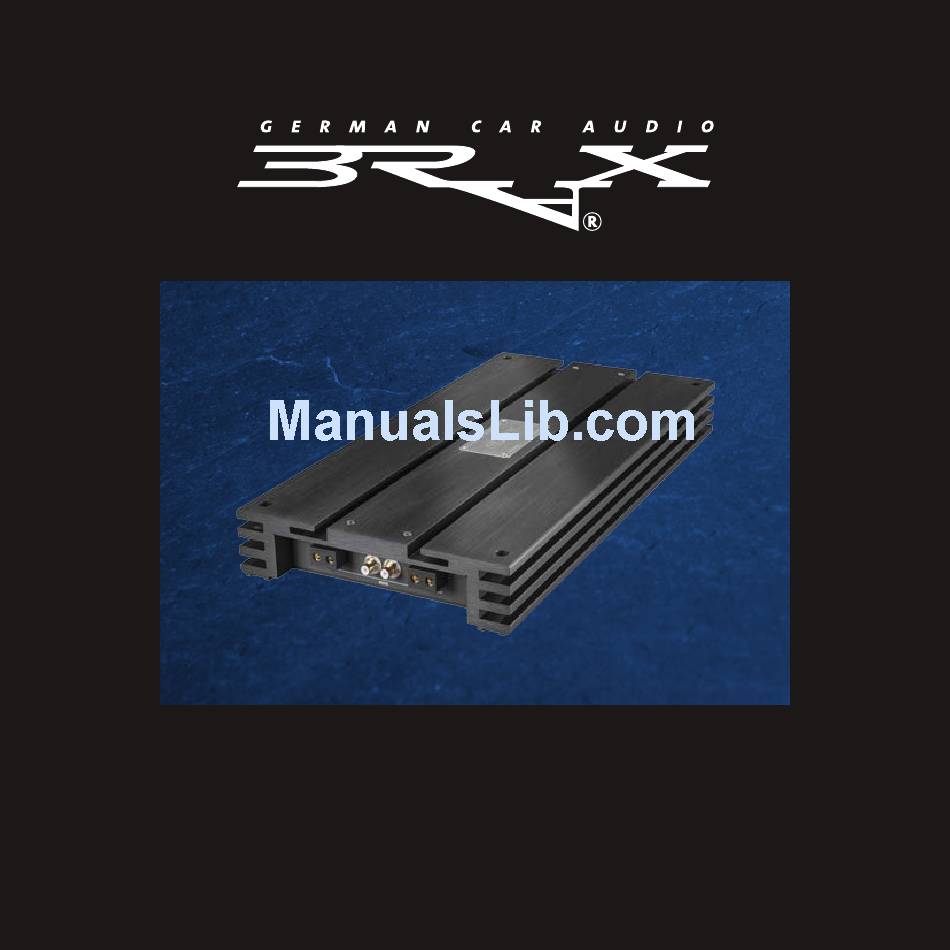

- Page 1 GX2000 Instruction Manual...
-
Page 2: Dear Customer
We have provided the amplifier BRAX GX2000 with everything it requires in order to set new standards concerning sound quality, manufacturing, and longevity. We are very proud to offer you this high-end product MADE IN GERMANY. - Page 3 BRAX GX2000 doubtlessly to one of the most powerful and best sounding 2-channel amplifiers.
-
Page 4: Connection And Control Elements
CONNECTION AND CONTROL ELEMENTS Connection remote lead CPS LED Connection +12 V battery cable Connection BRAX Power Stabilizer (plus) Connection ground cable Connection BRAX Power Stabilizer (minus) Loudspeaker terminals Signal inputs... - Page 6 6 mm². Best signal processing due to a newly developed designed driver. External connection for BRAX-Power-Stabilizers, directly connected to the switching transistors, guarantee exceptional high efficiency and optimum 32 hand-selected high-end MOS-FET transistors power stabilization.
-
Page 7: General Instructions
General instructions: Installation of BRAX amplifiers To find out how BRAX GX2000 works best for you, read this manual carefully and follow the instructions for installation. We guarantee that this product has been checked for proper functioning before shipping. Before you start installation, discon- nect the car battery at the minus pole. - Page 8 As an aid to calculating the cross-sectional requirements of power cables which are not longer than 5 m, we recommend max. 5 A per mm². For the amplifier BRAX GX2000 we suggest a minimum cross section of 35 mm² for the positive 12 Volt supply lead and for the ground (chassis) cable.
- Page 9 (depending on the outside temperature) until it switches on again. 5 - 6 Connectors for a BRAX Power Stabilizer By connecting a BRAX Power Stabilizer peak loads in the power supply will be eliminated. Thus, the amplifier has always enough power for a perfect performance. Loudspeaker terminals To connect the speaker cables.
- Page 10 The control range extends from 1.0 V (maximum CW) to 8.0 V (maximum CCW). Operation mode switch Operation mode switch for channels A/B MONO BRIDGED STEREO BRIDGED STEREO CHANNEL A/B To select the mode of the amplifier. This switch is located on the bottom of the amplifier. Stereo: Select the STEREO MODE for using the channels A/B in a 2-channel mode.
-
Page 11: Technical Data
Weight net version “Short” ............................8.1 kg Weight net version “Long” ............................8.5 kg TROUBLE-SHOOTING The BRAX GX2000 is in protection mode and the Status-LED lights up yellow. Cause: The speaker wiring is faulty (short circuit between the wires or to the chassis of the vehicle). -
Page 12: Warranty Regulations
2 years. Additionally, we provide an extended warranty on all electronic components to each original owner who can verify a professional installation of BRAX GX2000. Mechanical parts are excluded. The products are checked and tested carefully during the entire production process. In the case of service, please note the following: The 2 years warranty period begins with the purchase of the product and is applicable only to the original owner. - Page 13 Audiotec Fischer GmbH Hünegräben 26 · D-57392 Schmallenberg Tel.: +49 (0) 2972-97880 · Fax: +49 (0) 2972-978888 E-mail: brax@audiotec-fischer.com · Internet: www.audiotec-fischer.com...
