Summary of Contents for Synapse D16Mio

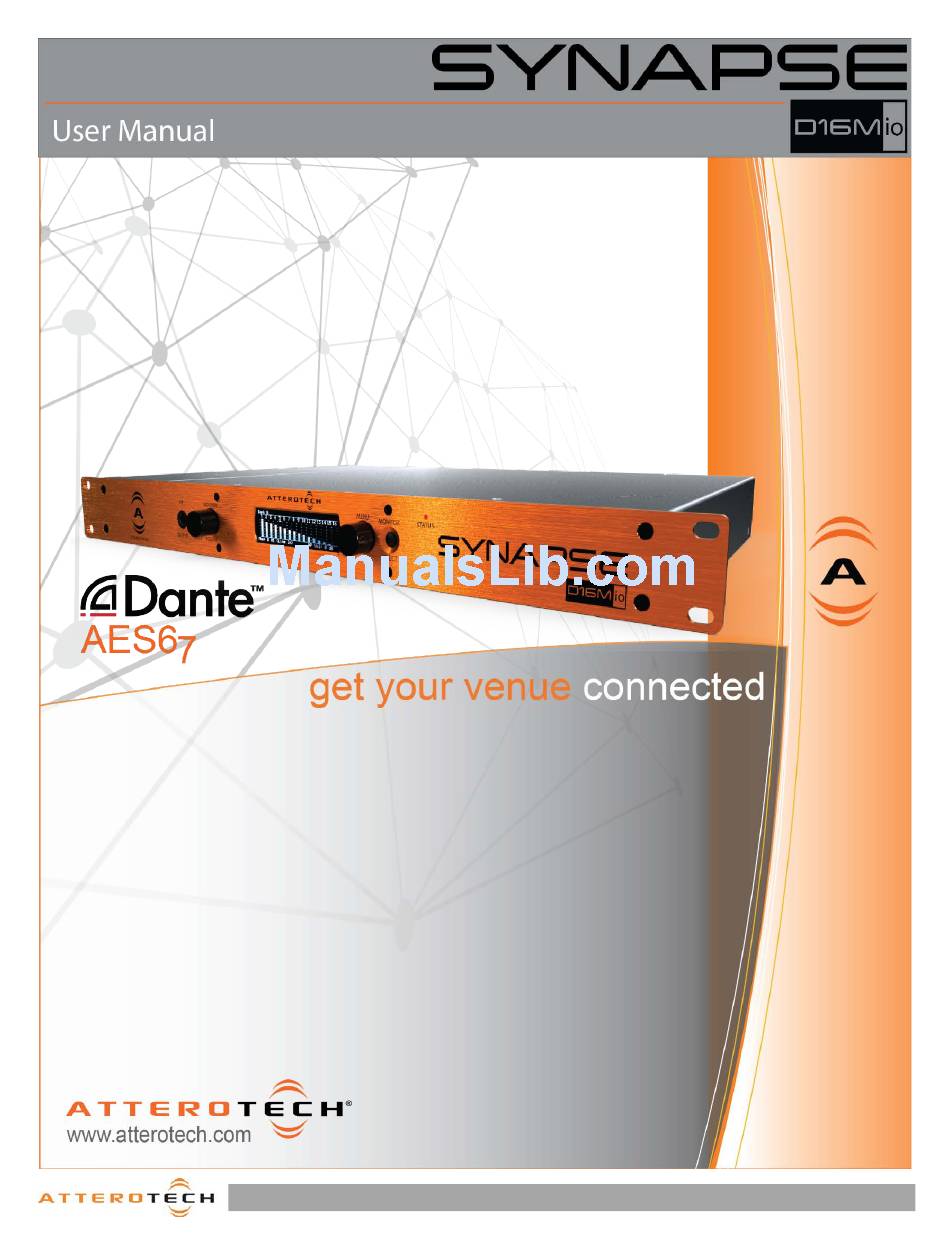

- Page 1 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞ (260) 496-9668 ⁞ www.atterotech.com Page i...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS The symbols below are internationally accepted symbols that warn of potential hazards with electrical products. This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure -- voltage that may be sufficient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature.
- Page 3 LIMITED FIVE YEAR WARRANTY The equipment is warranted for five years from date of purchase from Attero Tech, LLC against defects in materials or workmanship. This warranty does not cover equipment which has been abused or damaged by careless handling or shipping. This warranty does not apply to used or demonstrator equipment.
-
Page 4: Table Of Contents
Contents 1 – Overview ..................................................5 1.1 – What’s in the Box ....................................5 1.2 – Optional Extras ...................................... 5 2 – Device Installation ...............................................7 2.1 – Mounting ........................................ 7 2.2 – Audio Connections ....................................7 2.2.1 – Balanced to Balanced Wiring ................................7 2.2.2 –... -
Page 5: Overview
The front panel features an accessible integrated headphone amp and a high contrast OLED display to provide quick and detailed The following are available as options for the Synapse D16Mio and feedback for audio confidence monitoring and diagnostics. may be ordered separately:... - Page 6 17 – Primary Power Supply *Note: The Synapse D16Mio has a label on the base of the unit that shows the device’s MAC address. This is important for initial device identification as the last six digits make up part of the device’s default network name that is shown when the device is detected by Dante™...
-
Page 7: Device Installation
2 – Device Installation 2.1 – Mounting The case for the D16Mio is designed ready to fit in a standard 19” rack. The rack mount tabs are built in to the front panel of the unit (rack screws are not supplied). Use four screws to secure the unit to the rack. -
Page 8: Power Supply
Controller. *Note: The connections to the primary and secondary Dante™ networks don’t have to use the same type of port on the D16Mio. 2.4.1 – AES67 Audio Network Note They may be mixed so using a primary SFP connection and an RJ45 secondary connection or vice versa are both perfectly For successful deployment of Attero Tech’s AES67 enabled... -
Page 9: Using On Standalone Network
*Note: Connecting either secondary port to a standalone Dante™ other devices connected to the DM16Mio must then count the network while the D16Mio is still set in “Redundant” mode will DM16Mio as a switch hop. cause problems due to the IP address setup of the secondary ports having completely different IP addresses. -
Page 10: Device Operation
3.1.2 – Channel Metering Views 3 – Device Operation Chan nel Name (Dante Tx Name) Certain features of the DM16Mio such as channel mutes, output level, and front panel lockout are controlled using unIFY Control Panel application. This is available from the customer portal section of our website. -
Page 11: Version View
Control Panel. See the unIFY Control Panel manual for more information on using this function. *NOTE: On Synapse devices, the front panel controls will not operate until the Identify function is disabled. 3.2 – Headphone monitoring The DM16Mio has a headphone output that can be used to monitor audio signals in the device. -
Page 12: Factory Reset
3.3 – Factory Reset 3.4 – Firmware Updates Should it be necessary, the DM16Mio has a factory reset option. If a firmware update for the DM16Mio is released, it may be Activating it affects both Dante™ and non-Dante™ settings of the applied in the field by the end user or installer. -
Page 13: Architects & Engineers Specification
The device shall be compliant with FCC 47CFR parts 15B and 18 (Class A), EN 55011, ICES-003, RoHS and CE (EN55022 Class A and EN55024 Class A). The device shall be the Attero Tech Synapse D16Mio. 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞ (260) 496-9668 ⁞ www.atterotech.com... -
Page 14: Device Specifications
Device Specifications Analog Audio Inputs Dante Network 16 – Balanced 3-pin line level (Terminal Block option) Physical Layer Ethernet Input Type 4 – TASCAM-pinout compatible DB25 balanced analog (DB-25 option) Connector (s) Dual RJ-45 / Dual SFP Slots 10 kΩ - Line Mode Input Impedance Cable Quality CAT-5e or better (Copper) / Fiber...
