Summary of Contents for Sugden Masterclass IA-4

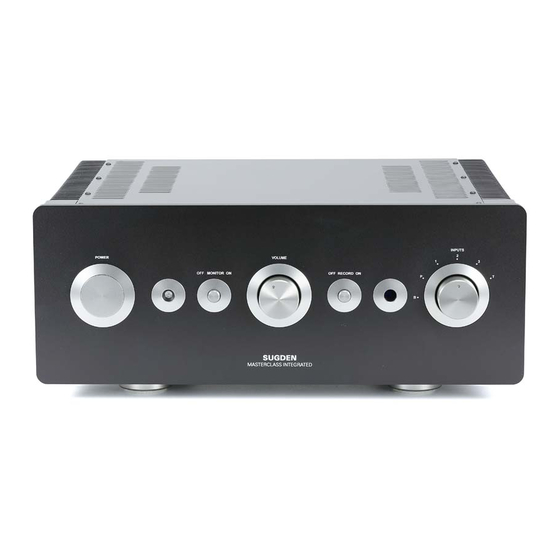

- Page 1 SUGDEN Masterclass IA-4 Integrated Amplifier Instruction Manual Designed and manufactured by J E Sugden & Co LTD Valley Works Station Lane HECKMONDWIKE West Yorkshire WF16 0NF ENGLAND www.sugdenaudio.com Masterclass IA-4 Integrated Amplifier...
- Page 2 UNPACKING Your amplifier should reach you in a substantial protective carton. On unpacking, please examine the unit for signs of prior use or damage. Check that all the front panel controls function mechanically. The following items should also be in the carton:- (a) AC power lead with pre-molded IEC straight connector and plug.
- Page 3 The volume control adjusts the power delivered to the loudspeakers and hence controls listening level. Zero volume is at anti-clockwise position or 'six 'o' clock'. The volume control can be operated by a Sugden RC5 System remote control. Tape monitor control Use this control to allow true post recording monitoring on a three-headed tape machine or recorder with monitoring facilities.
- Page 4 SUGDEN MASTERCLASS IA-4 Specification @ 230Volts setup. Facilities Inputs Three line level, one tape, one phono (mm), one Balanced Outputs One pair pre-out, one tape out, two pair WBT type multi way locking binding posts Phono Input Sensitivity 2mV MM...
