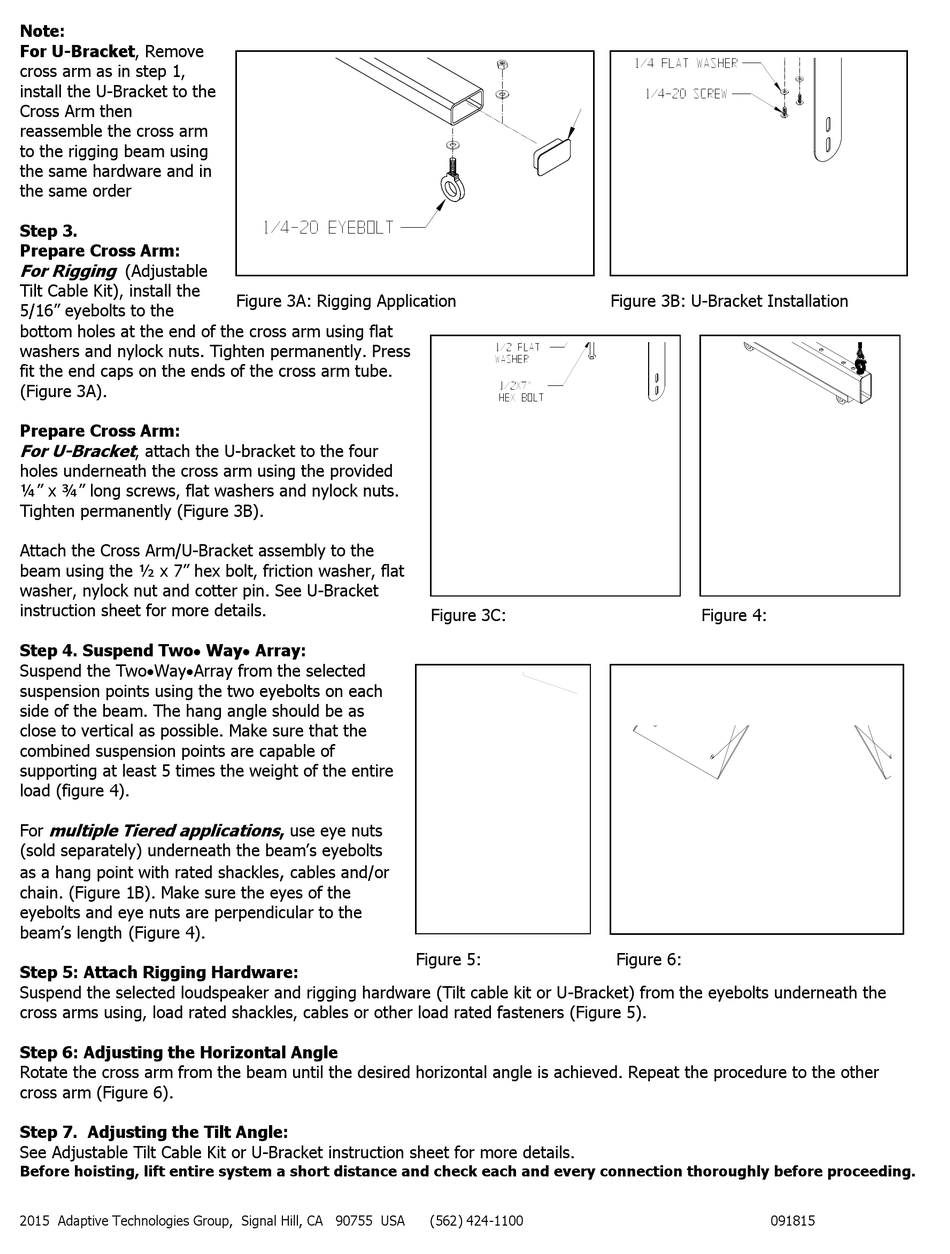

Note:
For U-Bracket, Remove
cross arm as in step 1,
install the U-Bracket to the
Cross Arm then
reassemble the cross arm
to the rigging beam using
the same hardware and in
the same order
Step 3.
Prepare Cross Arm:
For Rigging
(Adjustable
Tilt Cable Kit), install the
5/16" eyebolts to the
bottom holes at the end of the cross arm using flat
washers and nylock nuts. Tighten permanently. Press
fit the end caps on the ends of the cross arm tube.
(Figure 3A).
Prepare Cross Arm:
For U-Bracket
, attach the U-bracket to the four
holes underneath the cross arm using the provided
¼" x ¾" long screws, flat washers and nylock nuts.
Tighten permanently (Figure 3B).
Attach the Cross Arm/U-Bracket assembly to the
beam using the ½ x 7" hex bolt, friction washer, flat
washer, nylock nut and cotter pin. See U-Bracket
instruction sheet for more details.
Step 4. Suspend Two Way Array:
Suspend the TwoWayArray from the selected
suspension points using the two eyebolts on each
side of the beam. The hang angle should be as
close to vertical as possible. Make sure that the
combined suspension points are capable of
supporting at least 5 times the weight of the entire
load (figure 4).
multiple Tiered applications
For
(sold separately) underneath the beam's eyebolts
as a hang point with rated shackles
chain. (Figure 1B). Make sure the eyes of the
eyebolts and eye nuts are perpendicular to the
beam's length (Figure 4).
Step 5: Attach Rigging Hardware:
Suspend the selected loudspeaker and rigging hardware (Tilt cable kit or U-Bracket) from the eyebolts underneath the
cross arms using, load rated shackles, cables or other load rated fasteners (Figure 5).
Step 6: Adjusting the Horizontal Angle
Rotate the cross arm from the beam until the desired horizontal angle is achieved. Repeat the procedure to the other
cross arm (Figure 6).
Step 7. Adjusting the Tilt Angle:
See Adjustable Tilt Cable Kit or U-Bracket instruction sheet for more details.
Before hoisting, lift entire system a short distance and check each and every connection thoroughly before proceeding.
2015 Adaptive Technologies Group, Signal Hill, CA 90755 USA
Figure 3A: Rigging Application
, use eye nuts
,
cables and/or
Figure 3C:
Figure 5:
(562) 424-1100
Figure 3B: U-Bracket Installation
Figure 4:
Figure 6:
091815
