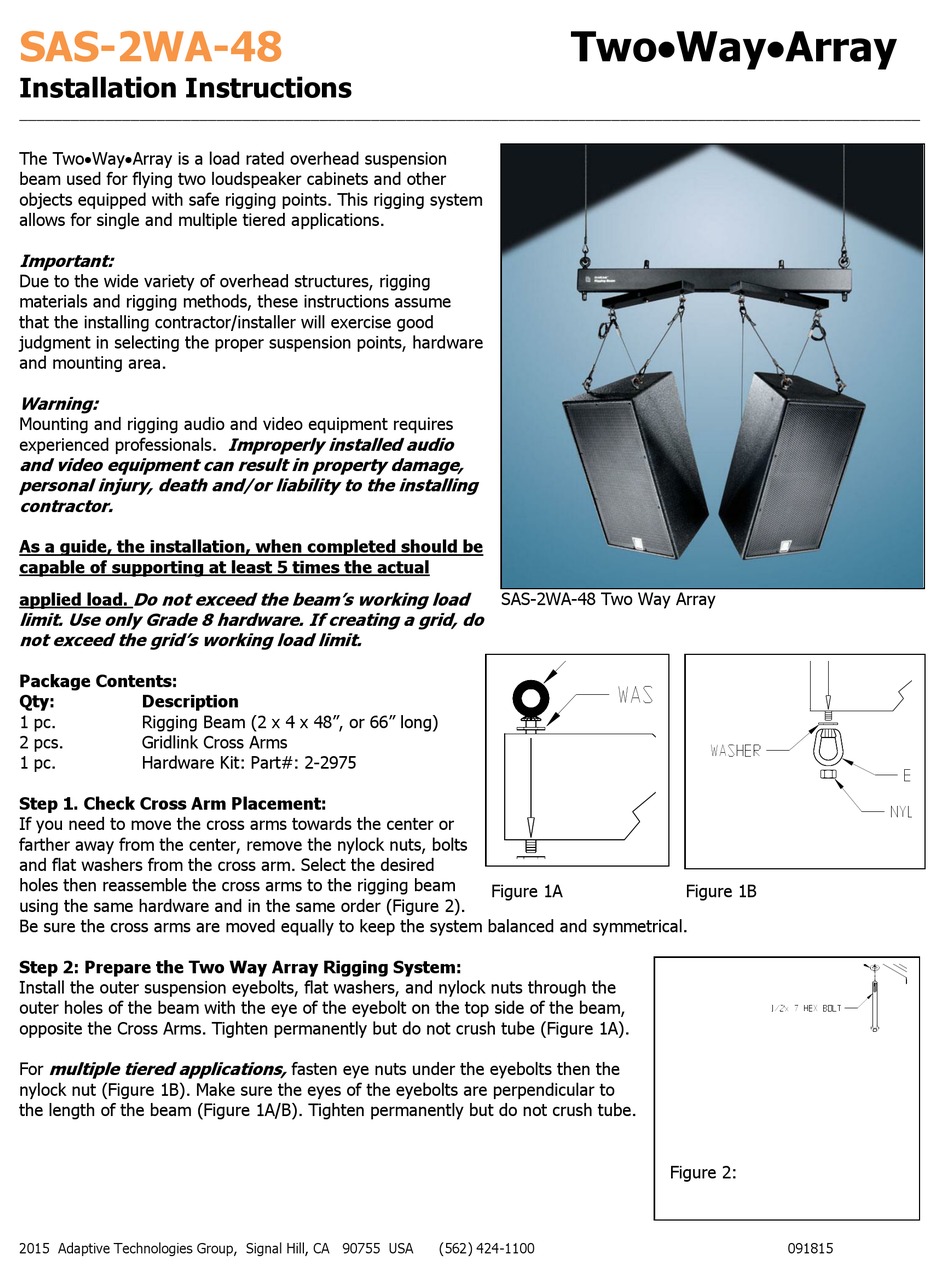

Two Way Array SAS-2WA-48 Installation Instructions

Advertisement

SAS-2WA-48
Installation Instructions
_________________________________________________________________________________________________________
The TwoWayArray is a load rated overhead suspension
beam used for flying two loudspeaker cabinets and other
objects equipped with safe rigging points. This rigging system
allows for single and multiple tiered applications.
Important:
Due to the wide variety of overhead structures, rigging
materials and rigging methods, these instructions assume
that the installing contractor/installer will exercise good
judgment in selecting the proper suspension points, hardware
and mounting area.
Warning:
Mounting and rigging audio and video equipment requires
experienced professionals.
and video equipment can result in property damage,
personal injury, death and/or liability to the installing
contractor.
As a guide, the installation, when completed should be
capable of supporting at least 5 times the actual
Do not exceed the beam's working load
applied load.
limit. Use only Grade 8 hardware. If creating a grid, do
not exceed the grid's working load limit.

Package Contents:

Qty:
Description
1 pc.
Rigging Beam (2 x 4 x 48", or 66" long)
2 pcs.
Gridlink Cross Arms
1 pc.
Hardware Kit: Part#: 2-2975

Step 1. Check Cross Arm Placement:

If you need to move the cross arms towards the center or
farther away from the center, remove the nylock nuts, bolts
and flat washers from the cross arm. Select the desired
holes then reassemble the cross arms to the rigging beam
using the same hardware and in the same order (Figure 2).
Be sure the cross arms are moved equally to keep the system balanced and symmetrical.

Step 2: Prepare the Two Way Array Rigging System:

Install the outer suspension eyebolts, flat washers, and nylock nuts through the
outer holes of the beam with the eye of the eyebolt on the top side of the beam,
opposite the Cross Arms. Tighten permanently but do not crush tube (Figure 1A).
multiple tiered applications,
For
nylock nut (Figure 1B). Make sure the eyes of the eyebolts are perpendicular to
the length of the beam (Figure 1A/B). Tighten permanently but do not crush tube.
2015 Adaptive Technologies Group, Signal Hill, CA 90755 USA
Improperly installed audio
fasten eye nuts under the eyebolts then the
TwoWayArray
SAS-2WA-48 Two Way Array
Figure 1A
(562) 424-1100
Figure 1B
Figure 2:
091815
