Page 1: Air Compressor

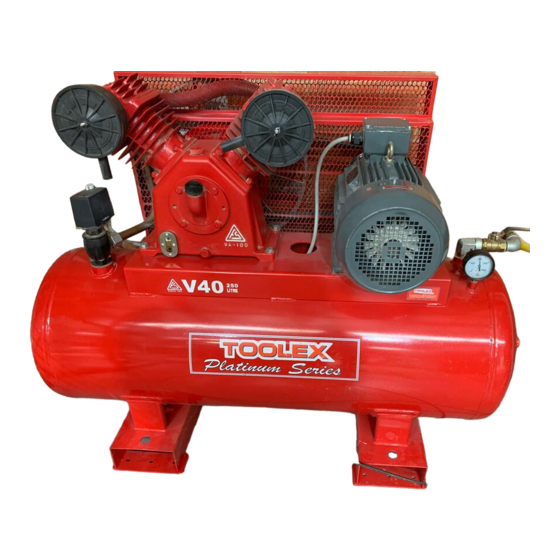

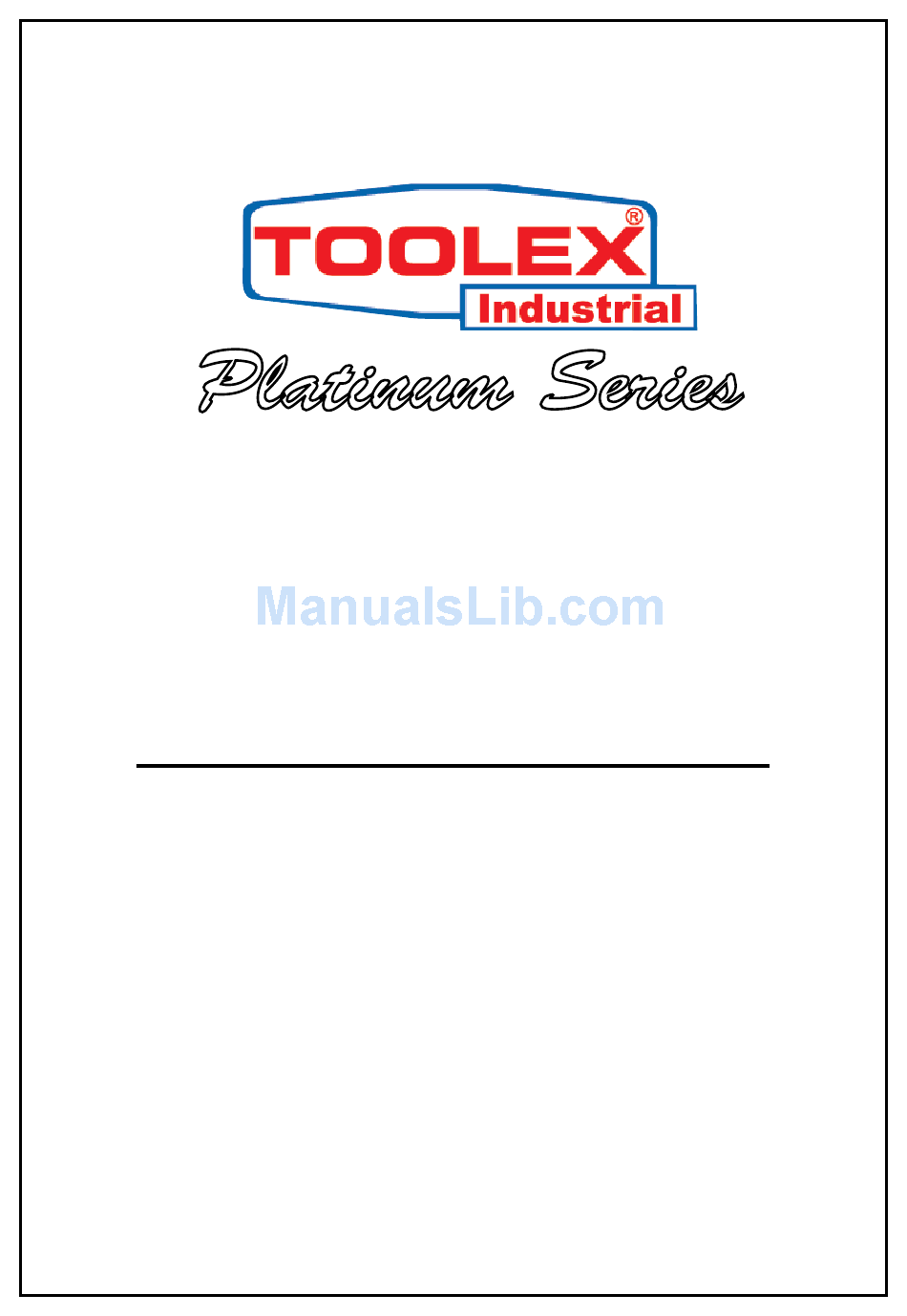

Platinum Series OIL FREE AIR COMPRESSOR INSTRUCTION MANUAL... -
Page 2: Important Safety Instructions And Guidelines
IMPORTANT SAFETY INSTRUCTIONS AND GUIDELINES Save all instructions Improper operation or maintenance of this product could result in serious injury and/or property damage. Read and understand all of the warnings and safety instructions provided before using this equipment. The air compressor should be operated on a dedicated 10-amp circuit. If the circuit does not have 10 free amps available, a larger circuit must be used. -
Page 3: Parts And Features
Risk of Explosion or fire Never operate the compressor near combustible materials, gasoline or solvent vapors. If spraying flammable materials, locate the air compressor at least 50m away from the spray area. Never operate the air compressor indoors or in a confined area. Risk of Bursting Always drain the air compressor tank daily or after each use. -
Page 4: Parts Diagram
PARTS DIAGRAM 1. Cover 17. Reed Valve 33. Rotor 49. Wheel Nut 2. Left Fan 18. Reed Valve 34. Bearing 6203-2z 50. Wheel 3. Left Crankcase 19. Valve Plate 35. Adjusting Washer 51. Bolt (Axle) 4. Connecting Rod 20. Washer 36. -
Page 5: Installation And Assembly
INSTALLATION & ASSEMBLY Improper installation of the grounding plug will The air compressor should be turned off and result in a risk of electric shock. If repair or unplugged from the power source before any replacement of the cord or plug is necessary, maintenance is performed as well as the air do not connect the grounding wire to either bled from the tank and the unit allowed time to... -
Page 6: Operation Procedures
OPERATION PROCEDURES Daily Start-Up Procedures Daily Shut-Down Procedures 1. Set the Auto-On/Off lever to the off position. 1. Set the Auto-On/Off lever to the Off position. 2. Check the air compressor visually for any 2. Unplug the power cord from the receptacle. damage or obstruction. -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE The air compressor should be turned off and unplugged from the power source before any maintenance is performed as well as the air bled from the tank and the unit allowed time to cool. Personal injuries could occur from moving parts, electrical sources, compressed air, or hot surfaces.
