Page 1: Instruction Manual

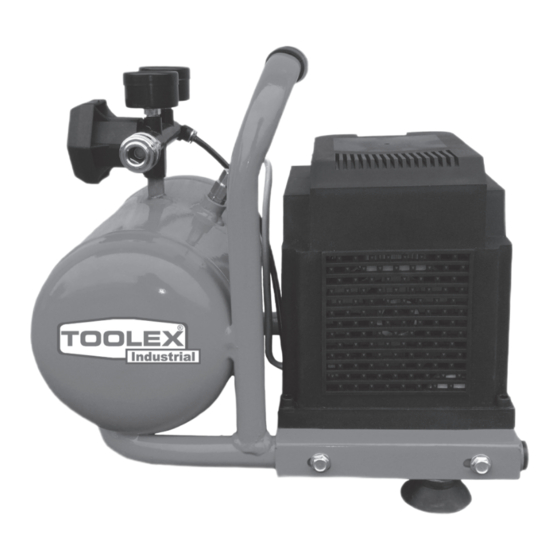

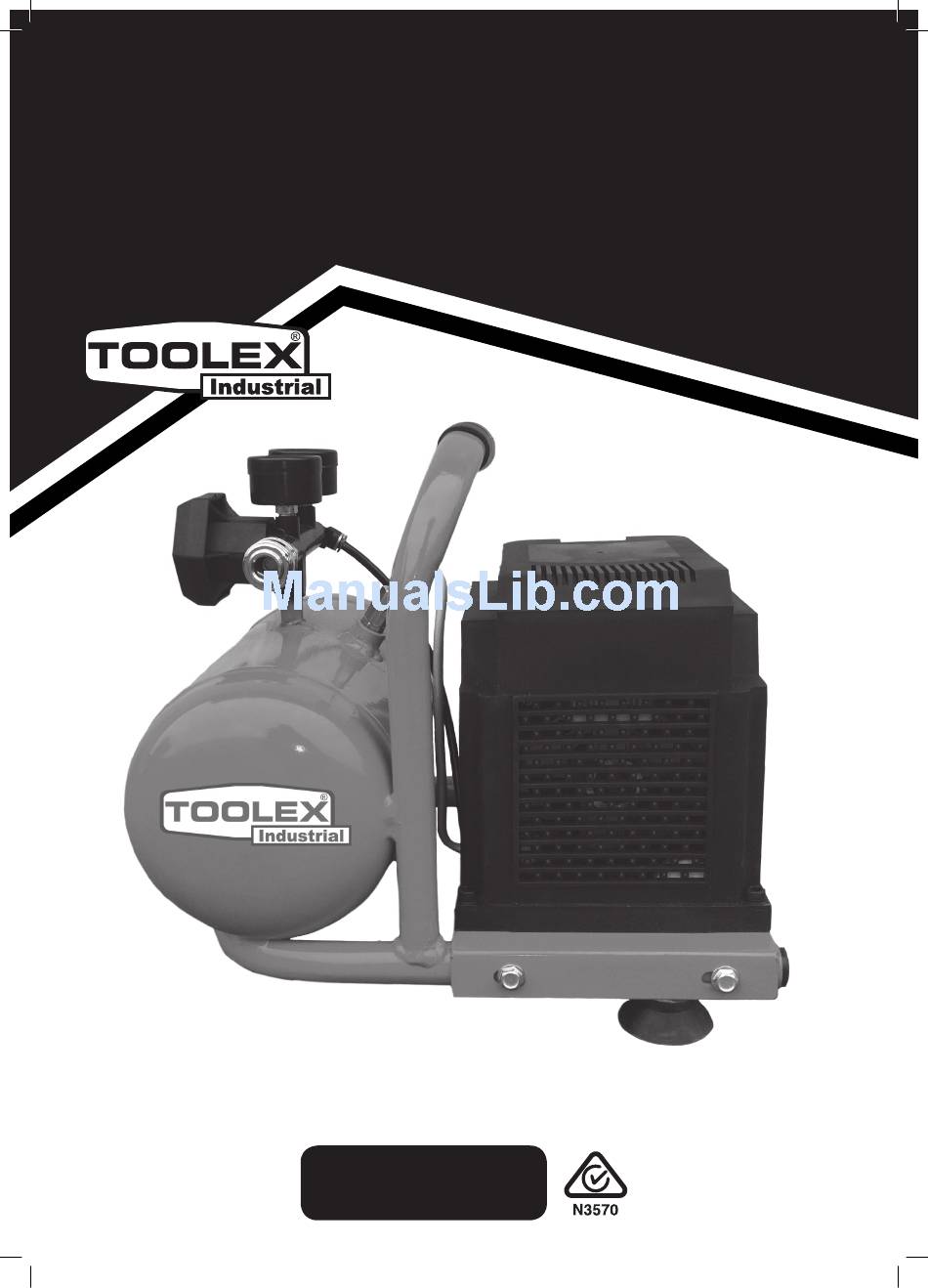

598552 OIL FREE SILENT AIR COMPRESSOR WITH 4 LITRE TANK & 1/2HP MOTOR INSTRUCTION MANUAL CONSUMER SERVICE CENTRE PO BOX 1012 HAMILTON NSW 2303 AUSTRALIA Made in P.R.C. - Page 2 598552 OIL FREE SILENT AIR COMPRESSOR WITH 4 LITRE TANK & 1/2HP MOTOR HANDLE PRESSURE GAUGE SAFETY VALVE ON/OFF SWITCH DRAIN VALVE Page 2...
-
Page 3: Important Safety Instructions & Guidelines
IMPORTANT SAFETY INSTRUCTIONS AND GUIDELINES IMPORTANT SAFETY INSTRUCTIONS & GUIDELINES Save all instructions Improper operation or maintenance of this product could result in serious injury and/or property damage. Read and understand all of the warnings and safety instructions provided before using this equipment. The air compressor should be operated on a dedicated 10-amp circuit. -
Page 4: Parts And Features
Risk of Explosion or fire Never operate the compressor near combustible materials, gasoline or solvent vapors. If spraying flammable materials, locate the air IMPORTANT SAFETY INSTRUCTIONS & GUIDELINES compressor at least 50m away from the spray area. Never operate the air compressor indoors or in a confined area. -
Page 5: Installation And Assembly
INSTALLATION & ASSEMBLY INSTALLATION & ASSEMBLY INSTALLATION & ASSEMBLY Improper installation of the grounding plug will The air compressor should be turned off and result in a risk of electric shock. If repair or unplugged from the power source before any Improper installation of the grounding plug will replacement of the cord or plug is necessary, The air compressor should be turned off and... -
Page 6: Operation Procedures
OPERATION PROCEDURES OPERATION PROCEDURES Daily Start-Up Procedures Daily Shut-Down Procedures 1. Set the Auto-On/Off lever to the off position. 1. Set the Auto-On/Off lever to the Off position. 2. Check the air compressor visually for any 2. Unplug the power cord from the receptacle. damage or obstruction. -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE TROUBLE SHOOTING GUIDE The air compressor should be turned off and unplugged from the power source before any maintenance is performed as well as the air bled from the tank and the unit allowed time to cool. Personal injuries could occur from moving parts, electrical sources, compressed air, or hot surfaces. -
Page 8: Parts List
PARTS LIST Model: 598552 Crankcase Bolt Bolt Crank shaft Circlip Pressure gauge Connecting rod Safety valve Bearing Regulator cover Bolt Cylinder Rear bearing crank Connect Valve Support Bearing Cylinder head Rotator Cactive connection Bolt Tank Circlip Elbow exhaust Stator Drain cook...
