SCANNING MADE SIMPLE
MT90 Orca
mobile computer
SDK Handbook

Advertisement

Table of Contents
loading

Related Manuals for Newland MT90 Orca

Summary of Contents for Newland MT90 Orca

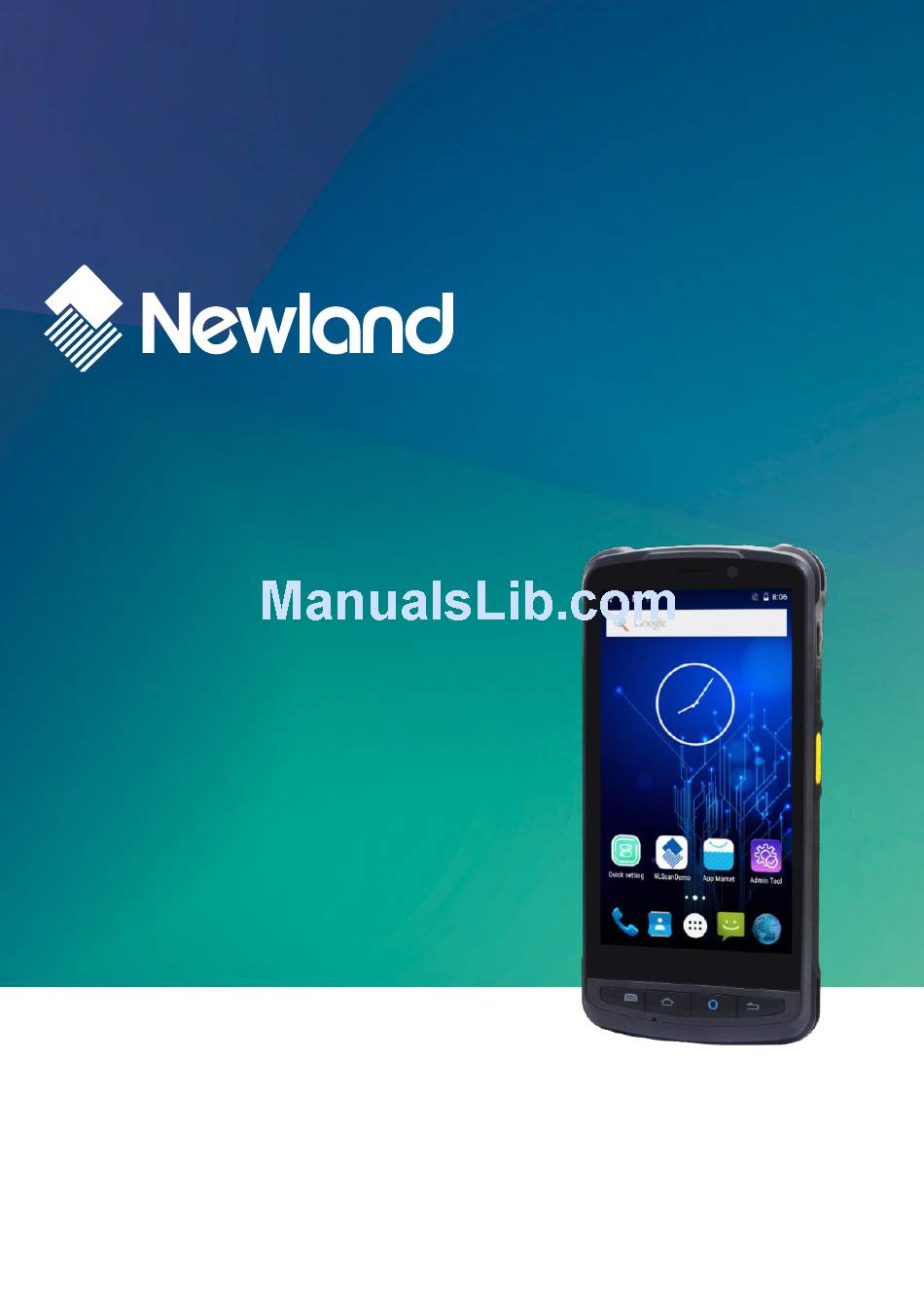

  • Page 1 SCANNING MADE SIMPLE MT90 Orca mobile computer SDK Handbook...
  • Page 2 Revision History Version Description Date V1.0.0 Initial release. January 16, 2018...

  • Page 3: Table Of Contents

    Table of Contents About This Manual ............................. 1 Development Environment ..........................1 Obtain Product Model Number ......................... 1 Barcode Scanner ..............................1 Scan Barcode ..............................1 Get Barcode Data ............................2 Stop Scanning ............................... 3 Change the Scanner Settings ........................3 Reserved Keys ..............................

  • Page 4: About This Manual

    About This Manual This manual is applicable to NLS-MT90 portable data collectors (hereinafter referred to as “the MT90” or “the terminal”). Development Environment All APIs are built based on standard Android broadcast mechanism, so there is no need for additional SDKs.

  • Page 5: Get Barcode Data

    Example 2: Intent intent = new Intent ("nlscan.action.SCANNER_TRIG"); intent.putExtra("SCAN_TIMEOUT", 4);// SCAN_TIMEOUT value: int, 1-9; unit: second intent.putExtra("SCAN_TYPE ", 2);// SCAN_TYPE: read two barcodes during a scan attempt mContext.sendBroadcast(intent); Note: When a scan and decode session is in progress, sending the broadcast above will stop the ongoing session.

  • Page 6: Stop Scanning

    Unregister broadcast receiver: mContext.unregisterReceiver(mReceiver); Get barcode data: mReceiver= newBroadcastReceiver() { @Override publicvoidonReceive(Context context, Intent intent) { final String scanResult_1=intent.getStringExtra("SCAN_BARCODE1"); final String scanResult_2=intent.getStringExtra("SCAN_BARCODE2"); final int barcodeType = intent.getIntExtra("SCAN_BARCODE_TYPE", -1); // -1:unknown final String scanStatus=intent.getStringExtra("SCAN_STATE"); if("ok".equals(scanStatus)){ //Success }else{ //Failure, e.g. operation timed out Stop Scanning Use the broadcast nlscan.action.STOP_SCAN to stop an ongoing decode session.

  • Page 7: Reserved Keys

    = 2 Pulse mode* Value = 1 Fill in EditText directly* EXTRA_SCAN_MODE = 2 Simulate keystroke = 3 Output via API Value = 0 Do not add a line feed* EXTRA_SCAN_AUTOENT = 1 Add a line feed Value = 0 Sound notification off EXTRA_SCAN_NOTY_SND = 1 Sound notification on* Value = 0 Vibration notification off*...

  • Page 8: Other Apis

    Example 2: Process the KeyUp event of reserved key public boolean onKeyUp(int keyCode, KeyEvent event) { switch (keyCode) case KeyEvent.KEYCODE_F6: showInfo("F6 KeyUp\n"); break; return super.onKeyDown(keyCode, event); Other APIs Expand the Status Bar To set the status bar to be expandable/not expandable, application should send to the system the broadcast nlscan.action.STATUSBAR_SWITCH_STATE with the value of Extra parameter ENABLE set to be true/false.
  • Page 9 Example: public long getTimeMillis(){ Calendar c = Calendar.getInstance(); c.set(2016, 0, 1, 0,0,0); return c.getTimeInMillis(); Intent it = new Intent("nlscan.action.SET_TIME"); long mills = getTimeMillis(); it.putExtra("TIME_MS", String.valueOf(mills)); mContext.sendBroadcast(it);...
  • Page 10 SCANNING MADE SIMPLE D-A-C-H United Kingdom France Russia Newland EMEA HQ +31 (0) 345 87 00 33 +31 (0) 345 87 00 33 +49 (6) 182 82916-16 +44 (0) 1442 212020 +39 (0) 345 8804096 info@newland-id.com info@newland-id.de sales@newland-id.co.uk france@newland-id.com russia@newland-id.com newland-id.com...
