Minitor EW-01 Instruction Manual

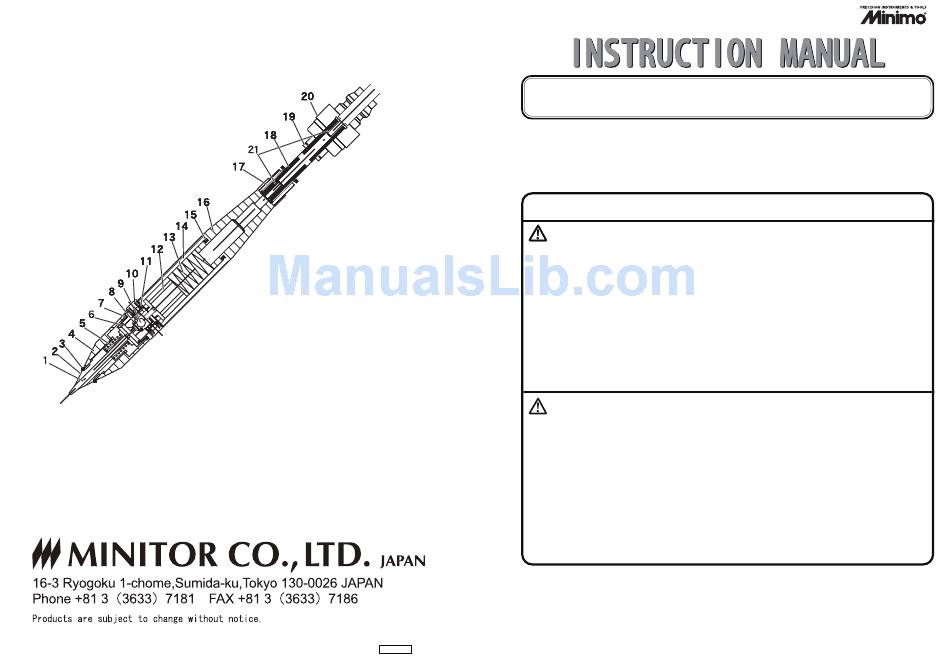

6. PARTS LIST

1.Point Tool
EW-101
2.Bush
EW-102
3.O-Ring
EW-103
4.Front Housing
EW-104
5.Front Spring
EW-105
6.O-Ring (7.66×1.78)
EW-106
7.O-Ring (12.1×1.6)
EW-107
8.O-Ring (2.5×1.8)
EW-108
9.Valve Ball
EW-109
10.Switch Valve
EW-110
11.O-Ring (3.1×1.6)
12.Ball Guide
EW-112
13.Rear Spring
EW-113
14.Housing
EW-114
15.O-Ring (11.1×1.6)
16.Rear Housing
EW-116
17.Hose Connector M7
18.Air Hose Black 2.5m
19.Hose Connector 1/4
20.Coupler
EW-120
21.Bronze Bush
EW-121
2018.02.07 IME-EW-01
-4-
Read following instructions thoroughly before attempting to use.
Keep this manual always in the vicinity of use for your reference.
Before using the unit, check if there are any damages on the unit due to
transport conditions.If any damages are found, contact our minimo dealer.
WARNING WARNING
(Indicates that incorrect operations presents significant danger of (Indicates that incorrect operations presents significant danger of
accident resulting in death or serious injury to the user.) accident resulting in death or serious injury to the user.)
○ Wear an appropriate eye protection and a dust protecting mask when using the
handpiece.
○ Use the compressed air with the pressure 4 ～ 7 kgf / ㎠ (56 ～ 99psi)
EW-111
○ Do not disassemble and remodel the unit.
Any accident or malfunction caused by disassembling and/or remodeling will
not be covered by our responsibility.
○ Do not touch the point tool when vibrating.
EW-115
CAUTION
(Indicates that incorrect operation presents possibility of injury to the
EW-117
user or damage to the unit.)
EW-118
○ Never push the point tool hard onto the workpiece.
EW-119
Excessive force on the tool will cause damage to the tool and also reduce the
cutting power.
○ Employ the air filter and/or dryer to eliminate water, water vapor and any other
dust particle in the compressed air.
○ Avoid any heavy impact to the unit. Do not drop it!
○ Keep the unit away from children.
EW-01 WORK MARKER
SAFETY PRECAUTIONS
-1-
