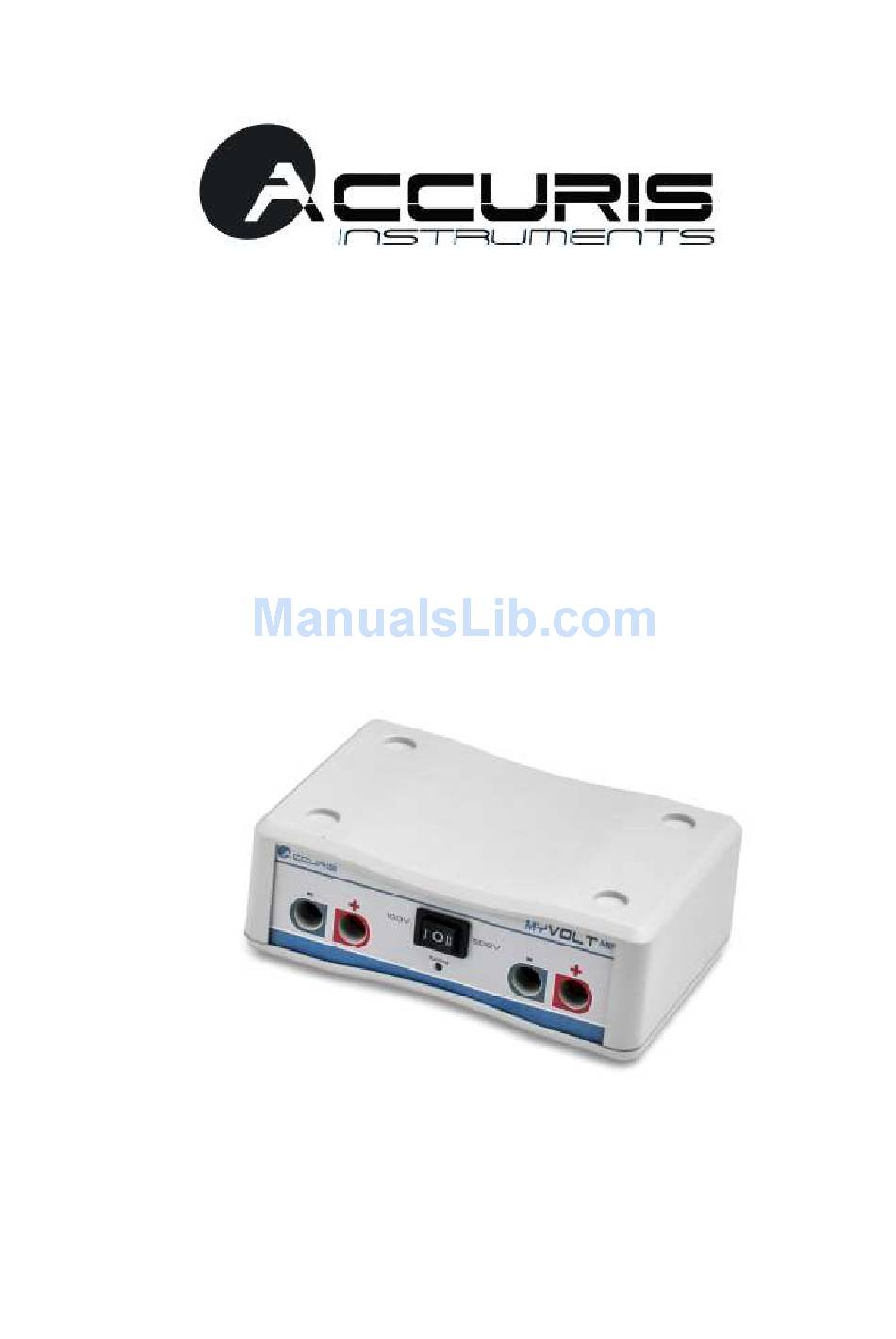

- Page 1 myVolt Mini Power Supply Operating Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction 2. Safety Warnings 3. Set up and Operation 4. Maintenance and Cleaning 5. Trouble Shooting 6. Specifications... -
Page 3: Introduction
1. Introduction: The Mini Power Supply can provide 100 VDC or 200 VDC output. Two sets of output jacks allow connection of 1 or 2 gel tanks. The outputs are wired in parallel. This electrophoresis power supply is for research only and not designed for medical, clinical or diagnostic applications. -
Page 4: Safety Warnings
2. Safety Warnings Please carefully read this instruction manual in it’s entirely before operation to avoid personal injury. Only trained personnel should operate the Mini Power Supply. Always allow clearance of 1 inch (2.5cm) to the sides, front and rear of the Mini Power Supply when it is operating to allow for sufficient air flow and cooling. -
Page 5: Setup And Operation
Do not attempt to open or repair the Mini Power Supply. Contact your distributor or Benchmark Scientific for service. 3. Setup and Operation The power supply should be set up on a level and stable surface, such as a laboratory counter. Choose a dry location that is not near a sink or running water. -
Page 6: Maintenance And Cleaning
When the electrical leads are properly connected, the power selector switch can be set to the appropriate voltage: 100V or 200V. The LED on the front of the power supply will light up to indicate that current is flowing. When an electrophoresis run starts, visually inspect the electrodes in the gel tank. -
Page 7: Specifications
6. Specifications Model Mini Power Supply E2100 Specification 4C 40C Operating Temp. range Input voltage AC100-240V 50/60Hz Output voltage DC 100 or 200 V ± DC 100V 4.5% Output error（max.） ± DC 200V 7.2% Output power（max.） Ports 2 pairs ≤70% Relative humidity Dimension s (mm) - Page 8 © Copyright, 2015, Benchmark Scientific PO Box 709 Edison, NJ 08818 www.benchmarkscientific.com www.accuris-usa.com Ph: 908-769-5555 email: info@benchmarkscientific.com...
