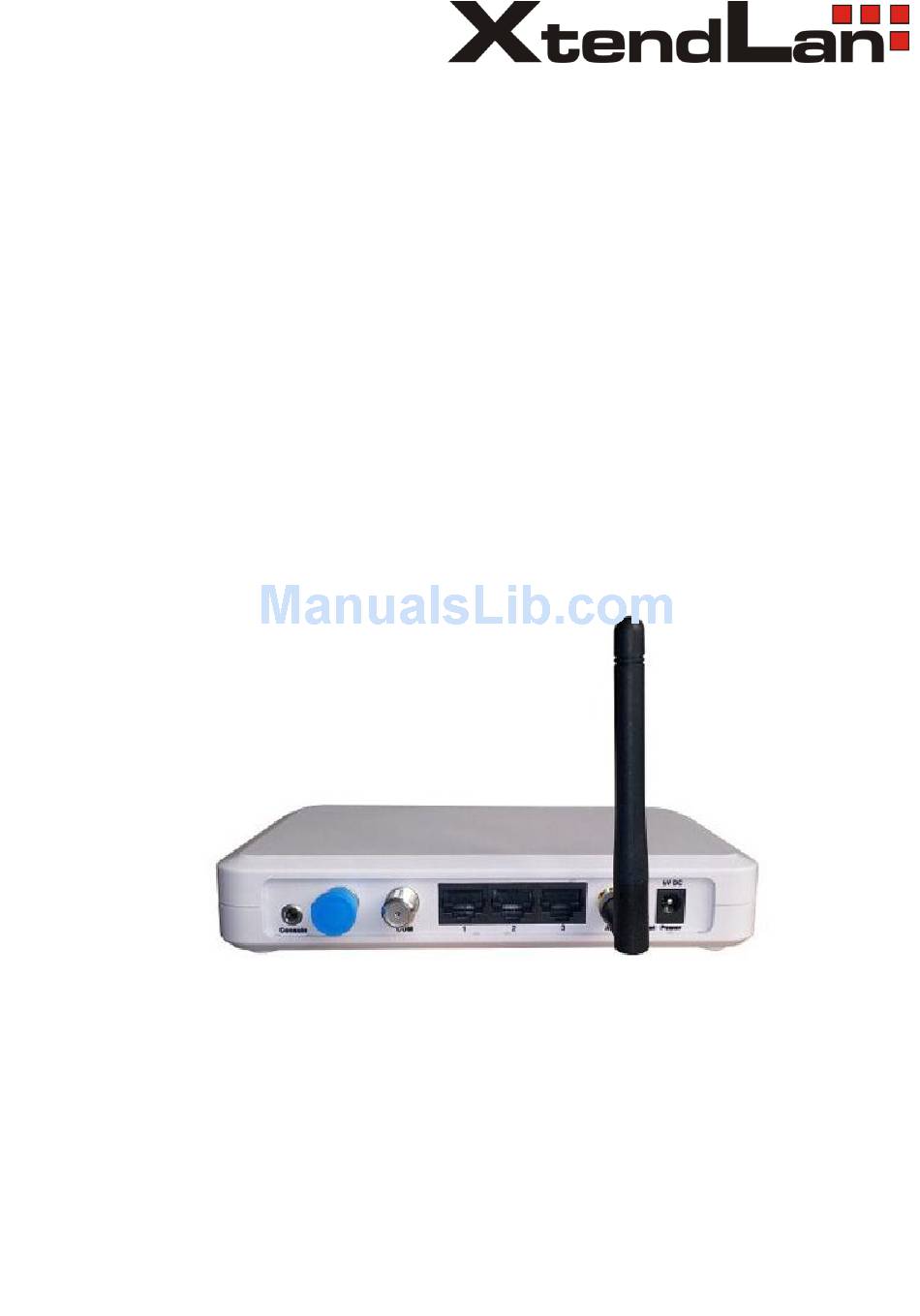

  • Page 1 XL-MB103SW MoCA Ethernet bridge User’s Guide...
  • Page 2 1.Check CPE’s connection status under NC: GD.LINK> enable /*access initial mode/ Password: admin /*enter password*/ GD.LINK# show online /*check online CPE’s connection status*/ Terminal’s MAC add. Forwarding Receiving rate Actual Attenuation Error Packet Number The normal link attenuation from NC to CPE should be kept in the range between 0~60dB, which can guarantee both receiving and forwarding rat being kept around 250Mbps and the error packet not increasing with each refresh as well as the regular communication between equipment, .
  • Page 3 GD.LINK(config)# cpe-template port 4 access-vlan 200 /*configure CPE port 4’s VLAN to be 200*/ GD.LINK(config-if)# end /*back to privilege configuration mode*/ GD.LINK# write /*save the current configuration*/ The NC must be restarted when configuration completed, then check with the command “show running–config”...
  • Page 4 3. NMS (network management system) Configuration. The corresponding configuration need to be done so that the NC can be monitored through NMS. For example, The given IP address is 10.86.5.100, and the subnet mask is 255.255.252.0, management is VLAN 52, SNMP’s community name is test. GD.LINK>...
  • Page 5 4. Revise one NC’s working frequency, change the default 1000MHz TO 1100MHz. GD.LINK> enable /*access initial mode*/ Password: admin /*enter password*/ GD.LINK# configure terminal /*access global configuration mode*/ GD.LINK(config)# service stop /*stop NC service, access head-end configuration mode available only after NC stop */ GD.LINK(config)# headend /*access head-end configuration mode*/ GD.LINK(config-headend)# frequency 1100...

  • Page 6: Loop Detection

    Configuration command based on authentication mode \\Access privilege mode GD.LINK> enable \\Enter Password Password: admin \\Access overall configuration mode GD.LINK# con t \\Stop NC forwarding GD.LINK(config)# service stop \\Access head-end configuration mode GD.LINK(config)# headend GD.LINK(config-headend)# authentication on \\Start authentication mode, when this mode start, all terminal CPEs must be configured manually again, otherwise CPEs can not be connected (shut down by default allows all CPEs’...
  • Page 7 CPE MAC Add., Forwarding rate, Receiving Rate, Actual Attenuation, Error Packet Number...
