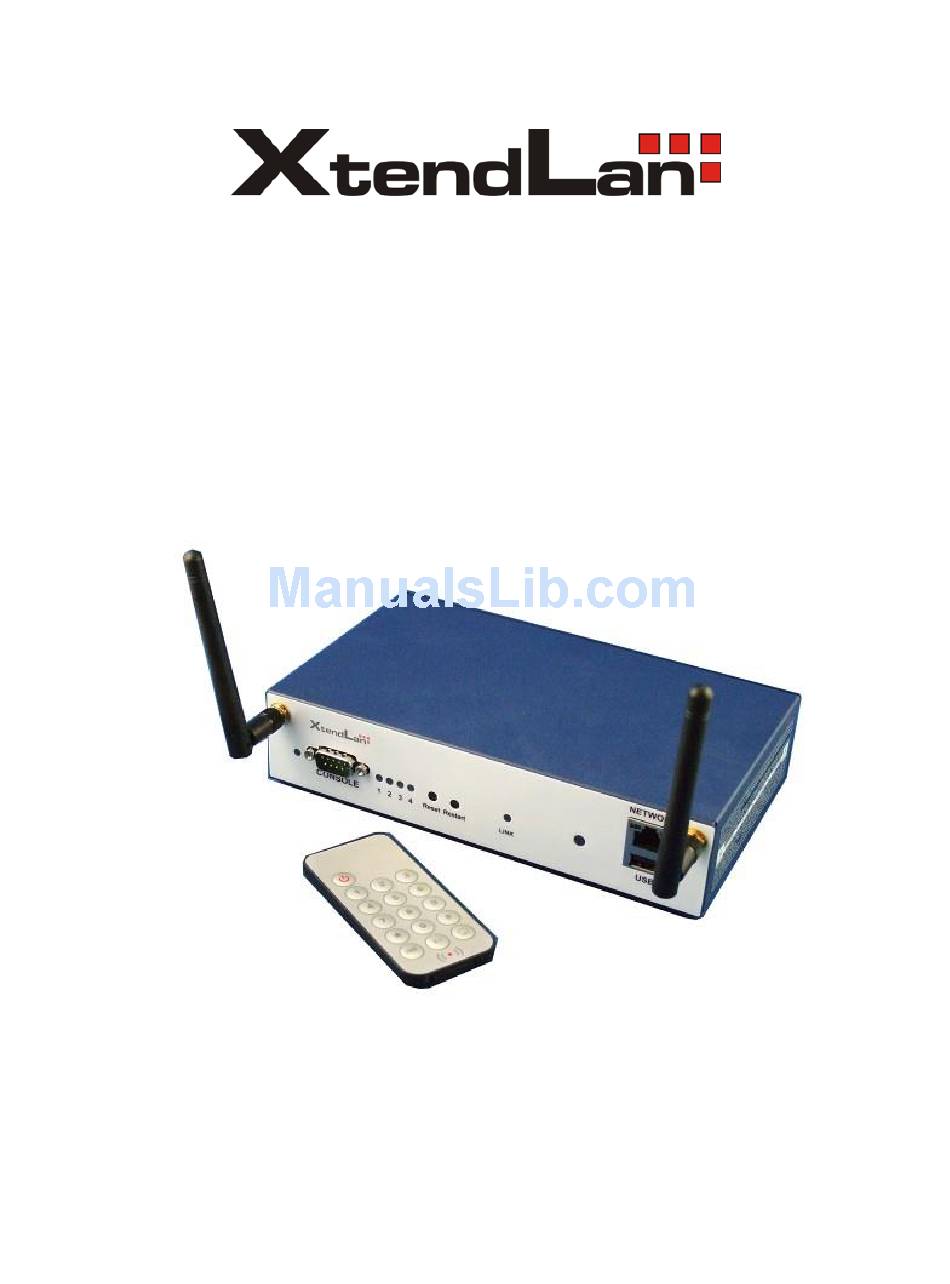

  • Page 1 IPM-401W User Manual...

  • Page 2: Table Of Contents

    Table of Content Product Overview ..........3 Features ....................3 Specification ..................3 Interface Description ......... 5 Front View ..................5 Rear View ................... 7 Setting up your device ........9 Before we Start .................. 9 Hardware Connection ............... 9 Software Installation .................

  • Page 3: Product Overview

    USB Webcam( W/ UPNP, M-JPEG / YUV ) 8. Support to view the area near IPM-401W. 9. With IR remote controller : control directly without need through PC web browser 10. Time scheduler : Multiple time setting for each outlet power ON , OFF or REBOOT 11.

  • Page 4: Minimum System Requirements

    Internet ( for remote access) or Ethernet Network ( Internal Network use) with some type of Internet connection, (i.e. ADSL, Cable, Dial up or any other forms of Internet service) Package Contents Package Contents 1. IPM-401W Unit x 1 2. IR Remote Power Control 3. IPM-401W Installation CD 3. WiFi Antenna X 2 pcs 5.

  • Page 5: Interface Description

    5- 6 seconds then release. There are THREE beeps response ( short –- mid long – short ) which means reset successfully and IPM-401W will be rebooted itself ( one beep after reboot ) and most information go back to default setting ( LAN IP )
  • Page 6 Link: The Link Indicator shows the WiFi signal transfer status. The light will be ON all the time and flashing while transfer data. IR Receiver : This area is for receiving the signal from handheld IR remote controller which comes in shipping package.

  • Page 7: Rear View

    The input power sends power to the IPM-401W.  Fuse : To prevent electrical surges from damaging the unit. The IPM-401W comes with one spare fuse in the unit. TYPE：U/C GFE 10A 250V (PF) 1 Power Switch: The Power switch turns on the input power.

  • Page 8: Fuse Replacement

    Fuse replacement 1.) The fuse is located between the power switch and the power input plugs. 2.) Carefully remove the fuse holder with a flat screwdriver. 3.) The fuse can be purchased from electronic shops. Specification : U/C GFE 10A 250V (PF) - 8 -...

  • Page 9: Setting Up Your Device

    401W. 4.) Switching the power source to ON status , this switch is located at the rear of 9258. 5.) After power on for around 45 seconds , there is a short beep sound for IPM-401W which means the system reboot successfully 5.
  • Page 10 2.) Click on the IP Power Section Bar 3.) Select the IP Power IPM-401W - 10 -...
  • Page 11 4.) All the available downloads for the IPM-401W will be shown 5.) Download the required software – IPEdit.exe - by clicking on the download button. Then you can select to connect IPM-401W by LAN or by WAN ( WPS) - 11 -...
  • Page 12 Please refer following steps to setup WiFi –WPS connection Step 1: Power on the IPM-401W - only connect power in but do not connect the LAN cable , you will hear one short beep in 40 seconds means IPM-401W boot successfully Step 2: Press the “WPS button”...
  • Page 13 Step 6 : Execute IPEDIT.exe . There is WiFi IP address of IPM-401W shown in IPEDIT.exe as following : Step 7 : Double click the IP address and your PC will execute web browser like IE ,Firefox or Google Chrome and there is wizard pop up to enquire the Username and Password .
  • Page 14 User can also use LAN network cable to connect IPM-401W . Please refer following steps to setup LAN connection Step 1: Connect the LAN cable to IPM-401W .The LAN cable should be connected to a Router / HUB + Router.
  • Page 15 About IPEDIT IP Edit is a search tool designed to search, configure, or access the IP Power IPM-401W from a local networked computer. IP Power IPM-401W Default Login / Password Default IP: 192.168.1.168 (When no DHCP is apparent) Default Login: admin Default Password: 12345678 In the local devices section you will see your device show up if connected correctly.
  • Page 16 Since the IP Address of the IPM-401W is : 192.168.100.34 You will need to make sure that the first 3 segments of your IPM-401W IP Address must match the first 3 segments of your gateway IP. First 3 Segment of Gateway Address: 192.168.1.X So your new IP Address for the IPM-401W should be: 192.168.1.XXX...

  • Page 17: Internet Setup

    In the IP IPM-401W under the system configuration page, you can select the IP Server that you would like the IPM-401W to go for . You can select from the server or the Cloud Server. This function must be turned on to work.
  • Page 18 1.) Open IP Edit and select the server that your IPM-401W is designated to. 2.) Hit the Green Connect button on the top of IPEdit. 3.) Then type in the IPM-401W Name that you have selected for the device and press the Search button.

  • Page 19: Web Interface

    1.) Open Internet Explorer type in the IP Address of the device followed by the : sign. For example: http:192.168.122.188:9258 192.168.122.188 – IP Address 9258 – Port 2.) Once you have typed in the IP address of the IPM-401W and it is ready to use. - 19 -...
  • Page 20 The default password for the IPM-401W Username : admin Password: 12345678 The Control Console The Right Panel of the Web Interface controls the functionality and setup of the IP Power IPM- 401W. - 20 -...
  • Page 21 The IP Power IPM-401W Console consists of six main sections which will be explained in details below.  PC Mode / Mobile Mode  Time :  Temp & Current :  IO Control : Controls Scheduler Ping Time Line ( for Current ) History ( Current Setting ) ...
  • Page 22 PC / Mobile mode For smart phone user to control IPM-401W Easily , there are different webpage for PC and for smart phone :  PC Mode : For PC user All the complete function of IPM-401W can be found in PC model.
  • Page 23  Mobile model : For smart phone user In Mobile mode, user can see the consumption of the current amp , control the ON/OFF status and adjust the maximum current limit of each port and - 23 -...
  • Page 24 ゜F or ﾟ C . ) ( F = Fahrenheit , C = Celsius ) IO Control : The IO Control Section allows you to directly / automatically control the outlets of the IPM-401W as well as schedule daily, weekly, and monthly power cycles.
  • Page 25 Control The Power Controls page allows you to setup the name of each port, control each power or all the 4 powers ,ON / OFF enable alarm as outlet status change , and also the power status as Reboot.  Name: User can name each power by click the name above the power button - 25 -...
  • Page 26 Power On Reset : The control section allow you to set the power status on ON or OFF when the device power Reboot . The alarm section allows the IPM-401W to notify you when an outlet has been turned ON or OFF. There are two ways that you can be notified either by E-mail or by a beeping sound.
  • Page 27 Schedule The scheduler allows you to power devices or turn them ON/OFF planned scheduled time or basis. Adding a scheduled event 1. Select the action Cycle : There are 3 selections - Once , Every Day . Every Week - 27 -...
  • Page 28 2. Select the Date and Time : By click the calendar Select a specific date range where the device will repeat the desired actions during the time specified. Choose the Action : Enable power # by chuck in the square , select power action as One the scheduler has been setup , hit the ADD button and you will see your setting located on the bottom of the Action section .
  • Page 29 Edit a schedule event : Please click EDIT bottom of that schedule need revise then change the setting of Cycle, Time , and Action . Press Add button to confirm the setting and you will see the page refresh and new setting display in Scheduler list - 29 -...
  • Page 30 Please click Delete button of that schedule need remove . Ping The ping function on IPM-401W allows the device to automatically Ping an IP Address to act as a watchdog to make sure the device getting Pinged is working properly.
  • Page 31 Please click the “ Ping Config setting “ and then show out the setting section. 1. Base Setting : For all 4 powers  Ping Interval (Seconds): The number of seconds between each ping . Value range at 0 ~ 600 Ping Echo Wait (Milliseconds): The number of milliseconds the device will wait for a response from the pinged device if no ping is detected within this time it will be considered a ping failure.
  • Page 32 None : Only ping one Host IP. Action( Power ON/OFF/RESET) will be activated . OR : IPM-401W will Ping 2 IP address. Either one IP fail times up to the setting times in “Ping Failure “ . Action (ON/OFF/RESET) will be activated .
  • Page 33 AND : IPM-401W will Ping 2 IP address. Both IP fail depends on the setting times in “Ping Failure . Action (ON/OFF/RESET) will be activated. 3. Action ( Ping Section ) When the number of Ping Failures have been reached. The device can be set to perform a or Reset function ...
  • Page 34 Timeline To see this section display normally, please do use IE9.0 or above, Firefox, Google Chrome or Safari and set resolution at 1280*768 . This section is for monitor the Ampere ( =Amp ) value each power consumed and is for setup the maximum value of each power .
  • Page 35 Power 1 : Max. current limit as 10amp. The consumed current now is 1A Power 2 : Max. current limit as 9 amp. The consumed current now is 0A. ( Output turn ON ) Power 3 : Max. current limit as 7amp. The output is turn off. Power 4 : Max.
  • Page 36 User can change the time gap difference by mouse : Select the time area you would like show on chart . To go back to original display as 10 seconds , please click “Current Limit” of IO Control section at left area . For example : Select the range time by mouse - keep clicking left button and and drag select area - 36 -...
  • Page 37 Over Current Protection ( Max. Current limit ) There has over current protection in IPM-401W. As the Amp value of power A is over the setting or over the maximum value 10 Amp, IPM-401W will automatically turn off that power A in few seconds There is an alarm with beep sound and via e-mail advice as over current.
  • Page 38 History : To see this section display, please do use IE9.0 or above or Firefox . and set resolution at 1280*768 . User can see the power usage history around one year in this section. Note : The history will be deleted after device power Reboot . This section display the “...
  • Page 39 In Power Usage Chart ( Up chart ) : A. There are 4 color coding round signs on the left side show the total WH ( Watt –Hour) of each power consumption in select area. User can move the 2 time gap sign to get the total consumed WH value of the select time range.
  • Page 40 Power Usage Chart There are different color show each power : Power 1 : Pink Power 2 : Blue Power 3 : Green Power 4 : Yellow In the chart : X Axis – horizon : Show Date and Time ( HH/MM/SS) Y Axis–...
  • Page 41 Note: The current history record will be cleared off the chart while device power off . Network : Setting This section is showed the network status of IPM-401W . There is 4 different portions in this section :  ETH Connection : LAN / Cable connection ...
  • Page 42 There are 2 portions : Ethernet & WiFi connection type.  ETH ( Ethernet ) Connection type : The network status is connected by cable The connection way include : Static IP / DHCP / PPPOE  WiFi Connection type : The network status is connected by WiFi ...
  • Page 43 User can select different way for Ethernet Connection or for WiFi connection . STATIC (fixed IP) : Setup IP address manually. This allows the 9258WiFi to obtain an IP Address automatically from user`s server connected to Internet . Recommended for users need to control through Internet. Please do filled the correct gateway for login from Internet .
  • Page 44 Default Gateway The gateway is the door for Internet connection. Please select LAN or WAN for the user to log in IPM-401W form Internet. There is only one gate way available : LAN or WAN. Under DHCP model - either ETH Connection type or WiFi connection type ) , IPM- 401W will get the gateway information automatically.
  • Page 45 LAN Internet IPM-401W will check your router IP of this connection , and you can separate the port for LAN connection or for Internet connection . For example : The router IP is 36.224.37.128:80 - 45 -...

  • Page 46: Wifi Information

    This section is to arrange WiFi connection. IPM-401W will auto search the WiFi Router nearby and also their information as boot up , IPM-401W user can just select the router and type the password to connect with your WiFi router and make connection easily.
  • Page 47 Step 2 : IPM-401W will auto get the most information of your router and you just need to type the password to connect with the WiFi router then click “ Apply “ Then you will see the Router name “ qatest “: add in to “Profile list “...
  • Page 48 Connect IPM-401W to this add Router : Active the WiFi Router in “ Profile list “ Please select the router an click “Active “ to make connection with IPM-401W. Step 4 : After Active successful , you will see the IP information in “ Connection Status “ of WiFi Info.
  • Page 49 By the Button on IPM-401W and on WIFI AP ( Router) Please refer the manual hardware operation in page #15 By Enrolee of IPM-401W and WPS button on WIFI AP ( Router) Step 1: Please select the WIFI AP ( Router ) you want to connect .
  • Page 50 Step 3: After few seconds , there are 2 beeps : short Beep + middle beep Which means WPS connection successfully. There are messages updated during the configuration in “ WPS status “ section : As WPS connection successfully , there is “Configured “ message as following : If user does not press the WPS function of selected AP ( WiFi Router ) SCAN AP ...
  • Page 51 By Registrar Step 1 : Select the router you want to connect . Step 2 : Select “Registrar “ and Type the PIN number supply by your WIFI AP ( Router ) - 51 -...
  • Page 52 into Pin area and then press button “Pin Start “ then you will see “Configured “ in WPS status as connect successfully. Step 3: You can see the WPS connection in section “ WiFi Info “ & “ WIFI Survey “ of Network - 52 -...
  • Page 53 Example: “ On  Off “ or “ Off  On “ . Please do enable the Email alarm in “ Power Control” of “ IO Control “ section as following picture : The IPM-401W allows you to send from @gmail or @hotmail or @yahoo.com account . - 53 -...
  • Page 54 9223@hotmail.com SMTP Server: This is the mail server of the sender at “ From “ . If user select @gmail or @hotmail account as SMTP Server , IPM-401W will fill the SSL & Port automatically SSL inquire : If the mail server needs to be authenticated make sure the yes is checked in Port : This is the port of SMTP Server.
  • Page 55 After the server has been setup correctly, enter the necessary information into the IPM-401W DDNS settings. IPM-401W support 4 DNS server. User need to create its own account in these DNS server Note : “ Dyndns.org “ is the only one provides free service .
  • Page 56 And get QR code of IPM-401W IP Server & CNT The IP SERVER allow IPM-401W to be easily accessed on the internet by our IP Power Center or IP EDIT. With this feature anyone can find there device with no problems.
  • Page 57 QR code of IPM-401W : User can create own QR code of the IP information of IPM-401W ( LAN / WIFI / Internet), and scan / record in your QR code APP for quick search or log in IPM-401W .
  • Page 58 - To view the IPM-401W webpage on Internet , please do “ port forwarding “ first in router. - To view the IPM-401W webpage on LAN , please make sure your smart phone is under same segment ( refer Page#17 , you will need to make sure that the first 3 segments of your IPM-401W IP Address must match the first 3 segments of your gateway IP.
  • Page 59 IPM-401W webpage directly. To work with IPM-401W, the USB Webcam need to support UPNP and video as M-JPEG or YUV format to view the area near IPM-401W. Note : The JAVA version should be 1.60 or above for USB Webcam view under web browser...
  • Page 60 - 60 -...

  • Page 61: System Setting

    Administrator: The Administrator has the authority to create other users, remove users, and control the device. IPM-401W will asked to log in again as change the default setting here. Operator : The operator can only control the setting of “ IO Control “ section but can not see other page of IPM-401W .
  • Page 62 In this section , user can setup the date , time and NTP server to get the time synchronization . NTP synchronization : User can setup the time gap ( 1~300 hours ) for IPM-401W to check the time with the NET server .

  • Page 63: Load Factory Default & Restart System

    Before click ok to import please do read following notice :  Do NOT import DAT file which is not export form IPM-401W. It is out of warranty support if any damage by import .  Please do import the file in LAN / Ethernet . To avoid import fail , please do not import file by Internet Load Factory Default &...
  • Page 64 System Information In this section , user can get the system information : - 64 -...
  • Page 65 System Log In this section , user can get the system log of IPM-401W. The system information will be deleted after IPM-401W device power reboot. Firmware To update the IPM-401W , please follow the instruction below to prevent anything happens like update incomplete or hardware disable which may be caused by wrongdoing of updating : 1) Turn off all chat programs including ( Skype, FB.

  • Page 66: Controlling The Device

    Controlling the Device By IR Remote Controller To control IPM-401W by IR remote power controller we supplied, please use 5 buttons in this remote controller : Power button , button #1~# 4  Enable remote controller : Press Power button one time and IPM-401W will response a short beep which mean the remote control function enable .
  • Page 67 CGI HTTP Commands CGI Commands allow you to easily integrate the IPM-401W with other systems and programs. Please read the instructions carefully on how to use the Http:// Commands To use http:// Commands open up a web browser and type in the command that you would like to use.
  • Page 68 System return： CGI Command : Data follows c61=0.000000, c62=0.000000, c63=0.000000, c64=0.000000, temp=22.700001 C61 to C64 means 4 currents ，temp is temperature （as Celsius ） 2.5 To get temperature （Celsius）: gettemp http://192.168.1.150/set.cmd?cmd=gettemp System return： CGI Command : Data follows temperature=22.700001 2.6 To set the power on / off ：setpower&p6x=0 or 1 p6x=0 means off，p6x=1means ON，x can be 1 to 4 ( power1 to power 4) Example : Turn on POWER1 and POWER2 and turn off POWER3：...
  • Page 69 Telnet Control - 69 -...

  • Page 70: Faq

    A5: If the WiFi connection for IPM-401W lost or the WiFi AP router damage, IPM-401W can not get the WiFi IP then it will change it`s IP to fixed IP address as 192.168.1.168 . User can not see the IP by IPEDIT as the Gateway is still at EiFi .
  • Page 71 Step 3 : Connect your PC and IPM-401W to a router by LAN. Then reboot IPM-401W (MUST DO) . After 45 seconds with a long beep, you can found the LAN IP of IPM-401W by IPEIDT.exe Q6: How can I reset to default: A6 : Please use tiny pin head and keep pressing the button “RESET for 5 seconds at least and...
