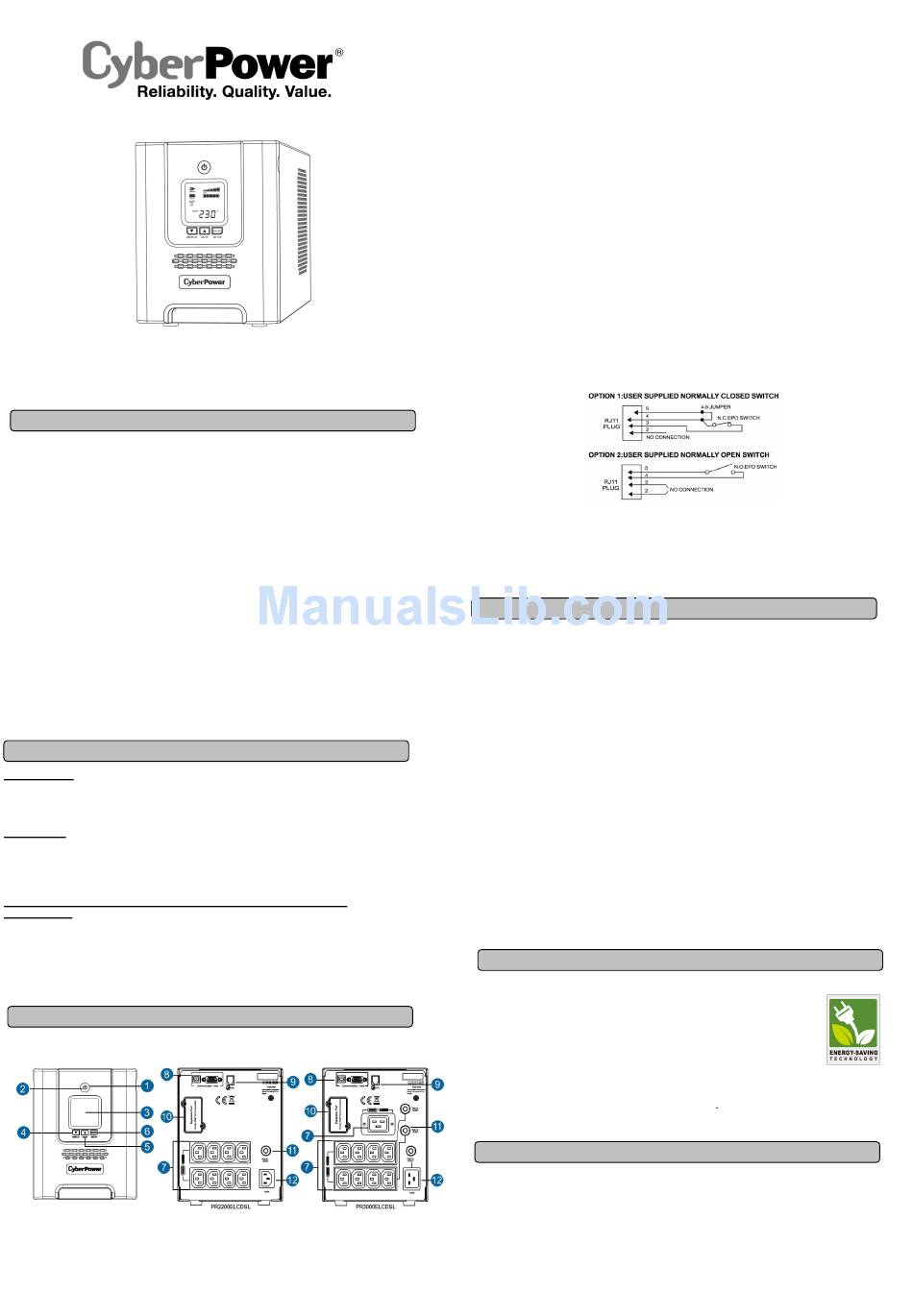

PR2200ELCDSL / PR3000ELCDSL
User's Manual
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important safety instructions. Please read and follow all instructions carefully during
installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or
operate your UPS.
CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker
protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this
equipment, turn off and unplug the UPS.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does
not sell products for life support or medical applications. DO NOT use in any circumstance that would affect
the operation and safety of life support equipment, medical applications, or patient care.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is
disconnected.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor
area, free of conductive contaminants. (Please see specifications for acceptable temperature and humidity
range).
CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery.
There are no user serviceable parts inside, except for the battery.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before
servicing the battery or installing a computer component.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near
aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause
the machine to short out.
DO NOT USE THE UPS ON ANY TRANSPORTATION! To reduce the risk of fire or electric shock, do not
use the unit on any transportation such as airplanes or ships. The effect of shock or vibration caused during
transit and the damp environment can cause the unit to short out.
INSTALLING YOUR UPS SYSTEM
UNPACKING
The box should contain the following:
(1) UPS Unit x 1; (2) Emergency Power Off Cable (gray) x 1; (3) Serial Cable x 1; (4) USB Cable x 1 (5) User
Manual x 1; (6) Management software Disk x 1; (7) Function Setup Guide x 1; (8) IEC to IEC Power cord x 4;
(9) IEC to AU Power cord x1
OVERVIEW
The PR2200ELCDSL / PR3000ELCDSL provides automatic voltage regulation for inconsistent utility power.
The PR2200ELCDSL / PR3000ELCDSL features 405 Joules of surge protection, and provides battery
backup during power outages. The PR2200ELCDSL / PR3000ELCDSL ensures consistent power to your
computer system and its included software will automatically save your open files and shut down your
computer system during a utility power loss.
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR
EQUIPMENT
1.Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and peripheral equipment
does not exceed 2200VA/3000VA.
2.Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed the
UPS unit's rated capacity (2200VA/1980W for PR2200ELCDSL, 3000VA/2700W for PR3000ELCDSL). If the
rated unit capacities are exceeded, an overload condition may occur and cause the UPS unit to shut down
or the circuit breaker to trip.
BASIC OPERATION
DESCRIPTION
1. Power Switch
Used as the master on/off switch for equipment connected to the battery power supplied outlets.
2. Power On Indicator
This LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of
surges and spikes.
3. LCD Module Display
Intelligent LCD display shows all the UPS information using icons and messages. For more
information please review the "Definitions for Illuminated LCD Indicators" section below.
4. Down/Display Button
The button can be used to select the LCD display contents including Input Voltage, Output Voltage, and
Estimated Run Time. Short press the button to scroll down the function menu. Pressing the button for 2
seconds will keep the LCD display always on or turn the LCD display off while in AC/Utility power mode.
For more information about the Down/Display Button, please refer to the Function Setup Guide.
5. Up/Mute Button
Short press the button to scroll up the function menu. Holding the button for more than 2 seconds will
silence the alarm. For more information about the Up/Mute Button, please refer to the Function Setup
Guide.
6. Enter/Setup Button
Press the button for 2 seconds to enter the setup menu and then select the functions for configuration.
For more information about the Enter/Setup Button, please refer to the Function Setup Guide.
7. Battery and Surge Protected Outlets
The unit has nine battery powered/surge suppression outlets for connected equipment to ensure
temporary uninterrupted operation of your equipment during a power failure. (DO NOT plug a laser
printer, paper shredder, copier, space heater, vacuum, sump pump or other large electrical devices into
the "Battery and Surge Protected Outlets". The power demands of these devices may overload and
damage the unit.)
8. Serial / USB Ports to PC
The Serial and USB ports allow connection and communication between the computer and the UPS unit.
Note: Only one port can be used at a time.
9. EPO Port
Use the provided gray EPO cable to connect to a provided EPO contact switch. Follow the appropriate
circuit diagram to the right to wire the cable to your EPO configuration. The EPO remote switch is a
switch installed in an outside area, connected to the unit via the Emergency Power Off cable. In case of
an emergency, it can be used to immediately cut-off power from the UPS.
K01-0000393-00
10. SNMP/HTTP Network Slot
Remove the cover panel to install an optional RMCARD to remotely monitor and manage your UPS over
a network.
11. Circuit Breaker
Located on the back of the UPS, the circuit breaker provides overload and fault protection.
12. AC Input
Connect the AC power cord to a properly wired and grounded outlet.
1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8
hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss
may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC
outlet. The unit will charge in both the on and off position.
Note: This UPS is designed with a safety feature to keep the system from being turned on during
shipment. The first time you turn the UPS on, you will need to have it connected to AC power or it
will not power up.
2. If you will use the software, connect the USB cable to the USB port on the UPS.
3. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data
storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets. DO NOT
plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into the
battery power supplied outlets. The power demands of these devices will overload and possibly damage
the unit.
4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is
protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g.
air conditioner, refrigerator, copier, etc. Avoid using extension cords.
5. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit will
"beep".
6. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this,
turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait
10 seconds. Make sure the circuit breaker is depressed and then turn the UPS on.
7. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the
battery will automatically recharge.
8. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
9. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the
battery every three months to ensure battery life.
CYBERPOWER GREENPOWER UPS™ TECHNOLOGY
CyberPower's Green Commitment
CyberPower is dedicated to the development of green products, and has adopted
Green practices throughout its business, including: membership in Climate Savers
Computing Initiative (CSCI), accordance with the Restriction on Hazardous
Substances (RoHS), Waste Electrical and Electronic Equipment (WEEE) protocols,
as well as ISO 14001 and IECQ QC080000. CyberPower pledges to provide the
advanced energy solution for the environment and become a leading eco-friendly
organization in the UPS industry.
Reduce Energy Cost with GreenPower UPS
CyberPower's goal is not only to provide eco-friendly products but also to bring the best value for consumers.
The advanced energy-saving design improves the operating efficiency and eliminates waste energy
consumption. As a result, consumers will enjoy significant energy cost savings with the adoption of
TM
GreenPower UPS
CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the
battery. Service the battery under the supervision of personnel knowledgeable of
batteries and their precautions.
CAUTION! When replacing batteries, replace with the same type and number of batteries or battery packs.
CAUTION! Use only the specified type of battery. See your dealer for replacement batteries.
CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in
a fire, as they may explode. Follow all local ordinances regarding proper disposal of batteries.
CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to the skin
and eyes and may be toxic.
HARDWARE INSTALLATION GUIDE
TM
Technology
technology.
BATTERY REPLACEMENT
