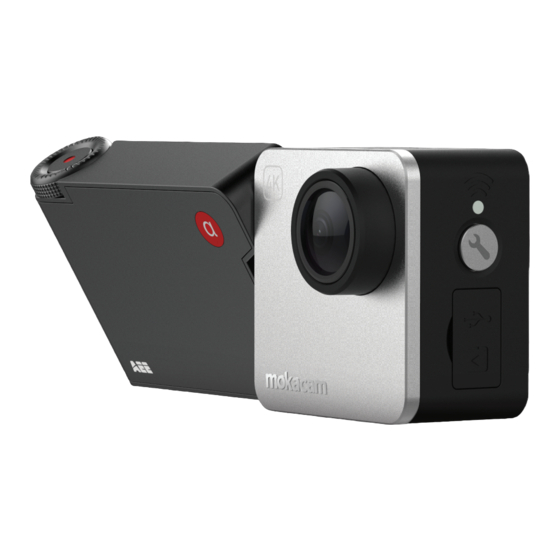

- Page 1 Alpha S ACTION CAMERA USER MANUAL Share with #mokacam on...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ADD On LCD Take a Photo Other Functions Backup Battery Photo Burst Other Settings Bluetooth Remote Long Exposure Connecting to the APP Photo Settings Offloading Your Content Waterproof Case Record Video Slow Motion Video Quick Capture Charging the Battery 1/4“... -
Page 3: Shutter Button [ ]
My Mokacam 1. Power/Shutter Button [ 2. WiFi Status Light 3. WiFi/Mode Button [ 4. Reset Button 5. microSD Card Slot 6. micro USB Port 7. Magnet 8. Battery Contacts 9. Micro HDMI Port 10. USB-C Port (for LCD connecting only) 11. -
Page 4: Lcd Connector 1
My Mokacam 1. USB-C Port 2. LCD Connector 3. LCD 4. Shutter Wheel 5. Shutter Button [ 6. Micro USB Port for LCD Charging 7. OK Button [ 8. Menu Button [... -
Page 5: Add On Lcd
Add-on LCD • Remove the side cap from the camera. • Insert the USB-C port from the LCD Screen into the USB-C port of the camera, make sure to fully insert the connection. • Press and hold the “OK” button for 2-3 seconds to rotate the display 180° as needed. Caution The USB-C Port under this side cap is for LCD screen connection ONLY. -
Page 6: Backup Battery
Backup Battery Take out the backup-battery from the box, face the connector to the back of the camera, the magnetic force will help you to put them together. -
Page 7: Bluetooth Remote
Bluetooth Remote Connecting the Remote Pair the camera and remote when you use the remote for the first time. Turn on the switch of remote，click the M button and enter the setting menu, then enter “Bluetooth Pair” in the menu，the camera will search and pair the remote automatically. -
Page 8: Connecting To The App
"WiFi ON" will display on the LCD screen. • Turn on the WiFi function on your mobile device and connect to Mokacam’s WiFi hotspot ''Alpha******''and input the password "1234567890". Open the "MokacamAlpha" mobile application on your device. - Page 9 Mac OS Connect the camera to your MacOS PC using a Micro USB cable, your computer will automatically detect the camera and create a folder titled “Mokacam” onto your desktop. Open the folder with your Finder to access the camera contents.
-
Page 10: Waterproof Case
Waterproof Case Open and insert the camera into the waterproof case according to the instructions below. Caution The waterproof case’s element resistance might decrease as a result of normal wear and tear. Please check the waterproof case for cracks and damaged seals before use. We recommend to test it with paper first before using for water activities, if any liquid leaks please contact customer service. -
Page 11: Charging The Battery
Caution The Mokacam / LCD Screen / Backup Battery all need to be charged individually as they all feature separate batteries. Only use the included USB charging cable or a comparable charging cable with output of 5V 1A, failure todo so could damage the camera and its accessories. -
Page 12: Take A Photo
Photo Mode Take a Photo • Press the Mode Button and choose Photo Mode, the LCD will show “ ” at the upper left corner. • Press the Shutter Button to take a photo. Photo Burst • Press the M-Button to enter the Settings Menu. •... -
Page 13: Photo Settings
Photo Settings Photo Size : 16M(4608x3456 4:3 ) 14M(4352X3264 4:3) 12M(4000x3000 4:3) 8.3M(3840x2160 16:9) 5M(2560x1920 4:3) 3M(2048x1536 4:3) White Balance : Auto Incandescent Daylight Cloudy Flash Fluorescent Water Outdoor D4000 D5000 D9000 D10000 ISO : Auto 1600 Photo Quality : Super Fine Fine Normal... -
Page 14: Record Video
Video Mode Record Video • Press the Mode Button and choose Video Mode, the LCD will show “ ” at the upper left corner. • Press the Shutter Button to start recording a video. – Press the Shutter Button again to stop recording a video. Slow Motion Video Mode •... -
Page 15: Video Settings
Video Settings Undert SuperView mode, the camera will choose the largest possible frame for video filming, so there is distortion on the image ratio. Please choose the 16: 9 format resolution for less distortion video. NTSC Video Resolution ： 3840x2160 30P 16:9 3840x2160 25P SuperView 2704x1520 30P SuperView 2704x1520 30P 16:9... - Page 16 Video Settings White Balance : Auto Incandescent Daylight Cloudy Flash Fluorescent Water Outdoor D4000 D5000 D9000 D10000 Video Quality Super Fine Fine Normal Sharpness : Strong Normal Soft...
-
Page 17: Timelapse
TimeLapse TimeLapse Photo • Press the M-Button to enter the Settings Menu. • Select “Time Lapse Photo” and enter the time lapse parameters. • Press the Shutter Button to start taking time lapsed photos. – Press the Shutter Button again to stop. TimeLapse Video •... -
Page 18: Other Functions
other Functions As Dash Cam • Press the M-Button to enter the Settings Menu. • Select the “Loop Record” option. • Press the Shutter Button to start recording a looped video. – Press the Shutter Button again to stop. • The video will be segmented into multiple files, once the memory card is full the oldest file will be replaced with the newest. -
Page 19: Other Settings
other Settings Playing Back • Press the OK Button to enter Playback mode. • If the camera is under Photo Mode, it will display photos only. If the camera is under Video Mode, it will display videos only. EIS Stabilization •... - Page 20 FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 21 FCC Warning: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
- Page 22 ACTIONCAM REINVENTED Mokacam Alpha is a patent holding camera designed and produced by CONC Tech Co., Ltd. CONC and AEE cooperated on the manufacture of Alpha. If you have more questions, please check the www.mokacam.com | www.aee.com website or contact service.en@mokacam.com | service@aee.com.
