- Page 1 Alpha S USER MANUAL www.mokacam.com...
-
Page 2: Table Of Contents

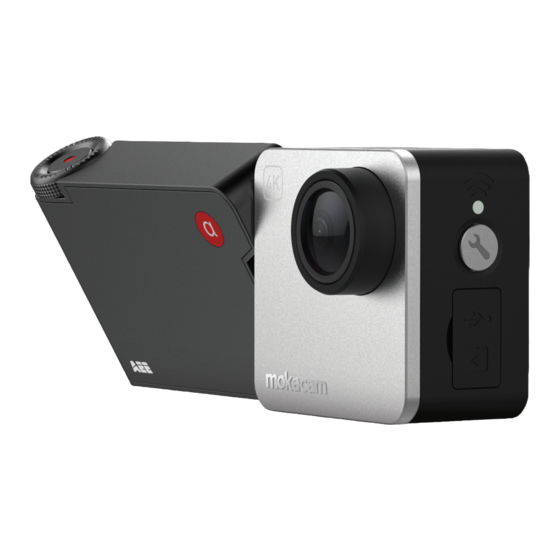

TABLE OF CONTENTS My Alpha S Photo Mode Time Lapse Mode Take a Photo Time Lapse Photo Add-on LCD Photo Burst Time Lapse Video Backup Battery Long Exposure Bluetooth Remote As Security Cam Photo Settings Connecting to the APP As Dash Cam Offloading Your Content... - Page 3 My Alpha S 1.Power/Shutter Button [ 2.WiFi Status Light 3.WiFi/Mode Button [ 4.Reset Button 5.microSD Card Slot 6.Micro USB Port 7.Magnet 8.Battery Contacts 9.Micro HDMI Port 10.USB-C Port (for LCD connecting only) 11.Microphone 12.Photo Mode Light 13.Video Mode Light...
-
Page 4: 6.Micro Usb Port For Lcd Charging
My Alpha S 1.USB-C Port 2.LCD Connector 3.LCD 4.Shutter Button[ 5.Shutter Wheel 6.Micro USB Port for LCD Charging 7.Menu Button[ 8.OK Button [... -
Page 5: Add-On Lcd
Add-on LCD Take off the side cap of camera，insert the male USB-C Port of LCD into the USB-C Port on the camera side fully. To remove the LCD, use your thumb and forefinger to hold both sides of the LCD connector, pull out to remove the LCD. -
Page 6: Backup Battery
Backup Battery Take out the back-up battery from the box, face the connector to the back of the camera, the magnetic force will help you to put them together. -
Page 7: Bluetooth Remote
Bluetooth Remote Connecting the Remote Pair the camera and remote when you use the remote for the first time. Turn on the switch of remote，click the M button and enter the setting menu, then enter “Bluetooth Pair” in the menu，the camera will search and pair the remote automatically. -
Page 8: Connecting To The App
Press WiFi/Setting Button and hold for 2 seconds to turn on WiFi. Or turn on the WiFi in the setting menu. It will show “WiFi ON” if the LCD is connected. Turn on the WiFi function on your phone or tablet, choose Mokacam’s WiFi hotspot name “Alpha-******”, input the password. Open “AEE Mokacam” APP on the smartphone or tablet. - Page 9 Off loading the Contents Windows Connect camera to PC using a Micro USB cable, it will show “ Mokacam ” on the screen if the LCD is connected. Then you can access the camera in “My Computer” on your PC.
-
Page 10: Charging
Charging Connect the camera to a USB charger using a Micro USB cable to charge the battery. Caution There are batteries in the Camera/LCD/Backup Battery, each of them need to be charged separately.Only use chargers marked: output 5V 1A. If you do not know the voltage and current of your charger, use the included USB cable to charge the camera from your computer. -
Page 11: Waterproof Case
Waterproof Case Please open the waterproof case and put the camera in according to the instructions below. Caution Splash, water, and dust resistance are not permanent conditions, and resistance might decrease as a result of normal wear. Please check the waterproof case and test it with paper inside every time before your water activities. If the waterproof case is not working well, please contact the customer support. -
Page 12: Photo Mode
Photo Mode Take a Photo Click the Mode Button to choose Photo Mode, the LCD will show “ ” at the upper left corner.Then click the Shutter Button to take a photo. Photo Burst Click the M Button to enter Setting Menu, choose “Photo Burst” and set the numbers of it. Click the Shutter Button to take photo burst. -
Page 13: Photo Settings
Photo Settings Photo Size : 16M(4608X3456 4:3 ) 14M(4254X3264 4:3) 12M(4000X3000 4:3) 8.3M(3840X2160 16:9) 5M(2560X1920 4:3) 3M(2048X1536 4:3) White Balance : Auto Incandescent Daylight Cloudy Flash Fluorescent Water Outdoor D4000 D5000 D9000 D10000 ISO : Auto 1600 Photo Quality : Super Fine Fine Normal... -
Page 14: Video Mode
Video Mode Record Video Click the Mode Button to choose Video Mode, the LCD will show “ ” at the upper left corner.Then click the Shutter Button to start recording, and click again to stop recording. Slow Motion Video Turn on the “Slow Motion” in the setting menu, and enter “Video Resolution” to choose the frame rate you need, then you can film slow motion video. -
Page 15: Video Settings
Video Setting Undert SuperView mode, the camera will choose the largest possible frame for video filming, so there is distortion on the image ratio. Please choose the 16: 9 format resolution for less distortion video. NTSC Video Resolution ： 3840x2160 30P 16:9 3840x2160 25P SuperView 2704x1520 30P SuperView 2704x1520 30P 16:9... - Page 16 Video Setting White Balance : Auto Incandescent Daylight Cloudy Flash Fluorescent Water Outdoor D4000 D5000 D9000 D10000 Video Quality Super Fine Fine Normal Sharpness : Strong Normal Soft...
-
Page 17: Timelapse Photo
TimeLapse TimeLapse Photo Enter “TimeLapse Photo” in the Setting Menu and choose the time Lapse and duration. Quit the menu, click Shutter Button to start filming. Click the Shutter Button again if you need stop filming. TimeLapse Video Enter TimeLapse Video in the Setting Menu and choose the time Lapse and duration. Quit the menu, click Shutter Button to start filmin. -
Page 18: As Security Cam
other settings As Dash Cam Enter the Loop Record in the Setting Menu and set the Loop Time. Exit the Setting Menu and click the Shutter Button to start filming. The videos filmed will be separated to clip, and it will cover the earliest one if the memory card is full. -
Page 19: Playing Back
Wait until the battery runs out and restart if reset doesn’t work. More Questions If you have more questions, please check the mokacam.com website or contact service.en@mokacam.com Please share your photos or videos with #mokacam on Facebook, Instagram, YouTube or other social medias. - Page 20 RELIVE YOUR BEAUTIFUL MOMENTS www.mokacam.com...
