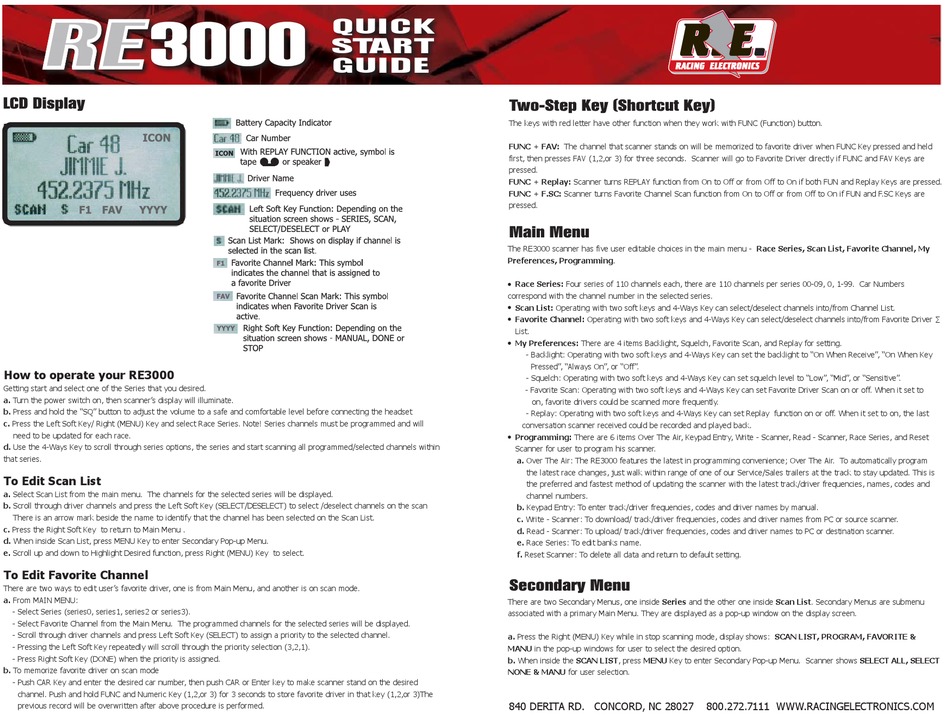

Lcd Display; Main Menu - Racing Electronics RE3000 Quick Start Manual

3000

LCD Display

How to operate your RE3000
Getting start and select one of the Series that you desired.
a. Turn the power switch on, then scanner's display will illuminate.
b. Press and hold the "SQ" button to adjust the volume to a safe and comfortable level before connecting the headset
c. Press the Left Soft Key/ Right (MENU) Key and select Race Series. Note! Series channels must be programmed and will
b. need to be updated for each race.
d. Use the 4-Ways Key to scroll through series options, the series and start scanning all programmed/selected channels within
that series.
To Edit Scan List
a. Select Scan List from the main menu. The channels for the selected series will be displayed.
b. Scroll through driver channels and press the Left Soft Key (SELECT/DESELECT) to select /deselect channels on the scan
b. There is an arrow mark beside the name to identify that the channel has been selected on the Scan List.
c. Press the Right Soft Key to return to Main Menu .
d. When inside Scan List, press MENU Key to enter Secondary Pop-up Menu.
e. Scroll up and down to Highlight Desired function, press Right (MENU) Key to select.
To Edit Favorite Channel
There are two ways to edit user's favorite driver, one is from Main Menu, and another is on scan mode.
a. From MAIN MENU:
a. - Select Series (series0, series1, series2 or series3).
a. - Select Favorite Channel from the Main Menu. The programmed channels for the selected series will be displayed.
a. - Scroll through driver channels and press Left Soft Key (SELECT) to assign a priority to the selected channel.
a. - Pressing the Left Soft Key repeatedly will scroll through the priority selection (3,2,1).
a. - Press Right Soft Key (DONE) when the priority is assigned.
b. To memorize favorite driver on scan mode
b. - Push CAR Key and enter the desired car number, then push CAR or Enter key to make scanner stand on the desired
b. - channel. Push and hold FUNC and Numeric Key (1,2,or 3) for 3 seconds to store favorite driver in that key (1,2,or 3)The
b. - previous record will be overwritten after above procedure is performed.
QUICK
START
GUIDE
Two-Step Key (Shortcut Key)
The keys with red letter have other function when they work with FUNC (Function) button.
FUNC + FAV: The channel that scanner stands on will be memorized to favorite driver when FUNC Key pressed and held
first, then presses FAV (1,2,or 3) for three seconds. Scanner will go to Favorite Driver directly if FUNC and FAV Keys are
pressed.
FUNC + Replay: Scanner turns REPLAY function from On to Off or from Off to On if both FUN and Replay Keys are pressed.
FUNC + F.SC: Scanner turns Favorite Channel Scan function from On to Off or from Off to On if FUN and F.SC Keys are
pressed.

Main Menu

The RE3000 scanner has five user editable choices in the main menu - Race Series, Scan List, Favorite Channel, My
Preferences, Programming.
∑
correspond with the channel number in the selected series.
∑
∑
∑
∑
a. a.
a. a. -
b. a.
c. a.
a. -
d. a.
a. -
∑
∑
a.
a. a.
a. a.
a. a.
b.
a.
b.
b.
b.
Secondary Menu
There are two Secondary Menus, one inside Series and the other one inside Scan List. Secondary Menus are submenu
associated with a primary Main Menu. They are displayed as a pop-up window on the display screen.
a. Press the Right (MENU) Key while in stop scanning mode, display shows: SCAN LIST, PROGRAM, FAVORITE &
MANU in the pop-up windows for user to select the desired option.
b. When inside the SCAN LIST, press MENU Key to enter Secondary Pop-up Menu. Scanner shows SELECT ALL, SELECT
NONE & MANU for user selection.
840 DERITA RD. CONCORD, NC 28027
Race Series: Four series of 110 channels each, there are 110 channels per series 00-09, 0, 1-99. Car Numbers
Scan List: Operating with two soft keys and 4-Ways Key can select/deselect channels into/from Channel List.
Favorite Channel: Operating with two soft keys and 4-Ways Key can select/deselect channels into/from Favorite Driver ∑
List.
My Preferences: There are 4 items Backlight, Squelch, Favorite Scan, and Replay for setting.
- Backlight: Operating with two soft keys and 4-Ways Key can set the backlight to "On When Receive", "On When Key
Pressed", "Always On", or "Off".
- Squelch: Operating with two soft keys and 4-Ways Key can set squelch level to "Low", "Mid", or "Sensitive".
- Favorite Scan: Operating with two soft keys and 4-Ways Key can set Favorite Driver Scan on or off. When it set to
on, favorite drivers could be scanned more frequently.
- Replay: Operating with two soft keys and 4-Ways Key can set Replay function on or off. When it set to on, the last
conversation scanner received could be recorded and played back.
Programming: There are 6 items Over The Air, Keypad Entry, Write - Scanner, Read - Scanner, Race Series, and Reset
Scanner for user to program his scanner.
a. Over The Air: The RE3000 features the latest in programming convenience; Over The Air. To automatically program
the latest race changes, just walk within range of one of our Service/Sales trailers at the track to stay updated. This is
the preferred and fastest method of updating the scanner with the latest track/driver frequencies, names, codes and
channel numbers.
b. Keypad Entry: To enter track/driver frequencies, codes and driver names by manual.
c. Write - Scanner: To download/ track/driver frequencies, codes and driver names from PC or source scanner.
d. Read - Scanner: To upload/ track/driver frequencies, codes and driver names to PC or destination scanner.
e. Race Series: To edit banks name.
f. Reset Scanner: To delete all data and return to default setting.
800.272.7111 WWW.RACINGELECTRONICS.COM
