Racing Electronics RE1000 User Manual

Racing Electronics RE1000 User Manual

Racing scanner

Advertisement

1.
GENERAL .................................................................................................................... 1
2.
Know your scanner....................................................................................................... 1
3.
LCD Full Display .......................................................................................................... 2
4.
OPERATION ................................................................................................................ 3
4.1 Power on/Power off ................................................................................................3
4.2 Volume Alignment...................................................................................................3
4.3 CAR channel Select ...............................................................................................3
4.4 Key-lock .................................................................................................................3
4.5 CAR channel Scanning function.............................................................................3
4.6 CAR Scan List Setting............................................................................................4
4.7 Set squelch level ....................................................................................................4
4.8 Set battery saving ..................................................................................................4
4.9 Set To [MRN] Station ..............................................................................................4
4.10 Set radio's channel spacing .................................................................................5
4.11 LCD Back light......................................................................................................5
4.12 Reset ....................................................................................................................5
5.
CAR CHANNEL SETTING ........................................................................................... 5
5.1 Frequecy setting.....................................................................................................5
5.2Channel name setting .............................................................................................5
5.3 PL/DPL setting .......................................................................................................6
5.4 LOCK OUT setting .................................................................................................6
6.
Programming................................................................................................................ 6
7.
Clone............................................................................................................................ 6
INDEX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Racing Electronics RE1000

  • Page 1 INDEX GENERAL ........................1 Know your scanner....................... 1 LCD Full Display ......................2 OPERATION ........................ 3 4.1 Power on/Power off ....................3 4.2 Volume Alignment....................3 4.3 CAR channel Select ....................3 4.4 Key-lock .........................3 4.5 CAR channel Scanning function................3 4.6 CAR Scan List Setting....................4 4.7 Set squelch level ....................4 4.8 Set battery saving ....................4 4.9 Set To [MRN] Station ....................4...
  • Page 2: General

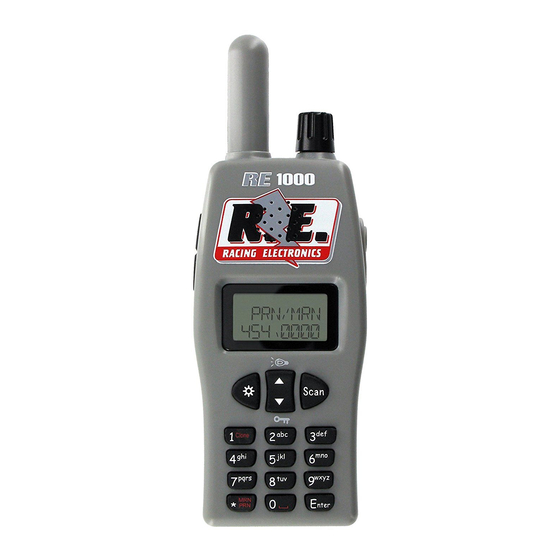

    1. GENERAL Frequency range: 400 - 480 MHz Number of Channels: 200 channels Channel Spacing: 12.5k Battery: AAA batteries * 3PCS Data inputting to scanner: PC programmer, Clone 2. Know your scanner. pqrs wxyz nter POWER & VOLUME SWITCH Car Key UP Key Down Key Scan Key...
  • Page 3: Lcd Full Display

    3. LCD Full Display ---Operating channel, volume level indicator --- Receiving signal strength indicator. CAR ---- CAR channel indicator ---Signal indicator --- “Key Lock” function indicator. Sc ---- Scan List & scan function indicator ----Narrow band indicator --- Wide band indicator. --- Battery capacity indicator.
  • Page 4: Operation

    4. OPERATION 4.1 Power on/Power off Turn “Power” knob clockwise to turn on the radio. Turn it with anti-clockwise to turn off the radio. The “click” sound to indicate the power 0n/Off. The LCD will indicate “RE 1000 RENTAL (see Figure (1), could be changed by PC program).
  • Page 5: Car Scan List Setting

    At CAR channel mode, press “SCAN” button to scan the “CAR Scan List”, press “ “ or “ “ button to choose the scan channel fequence increasing or decreasing. Press “SCAN“ button again will stop the scan function, and will go back to the channel before scanning. But if signal received during the scanning, pressing “SCAN”...
  • Page 6: Set Radio's Channel Spacing

    Note: At the “MRN” mode, press “SCAN” button, it will go to car channel scanning. 4.10 Set radio’s channel spacing Could be set by PC programer. The icon is 12.5KHz channel spacing. The icon is 25KHz channel spacing. 4.11 LCD Back light Press “F”+ “...
  • Page 7: Pl/Dpl Setting

    (8-2) 5.3 PL/DPL setting Press “ “or “ ” button to choose 51 PL tone or 104 DPL codes.Press “Enter” to store the settting and go to the LOCK OUT setting. The LCD will shows the PL tone or DPL code.(See LCD indicator in Figure (8-3)&(8-4) ) (8-3) (8-4)
  • Page 8 send the data to another radio, and the other one will be like programming. Press”Enter” again, radio will perform the clone function again.Or press “F” button, it will quit the cloning mode. (4) During this mode, the master’s LCD will show [CLONING] indicator, and the programming radio will show [PROGRAM].
