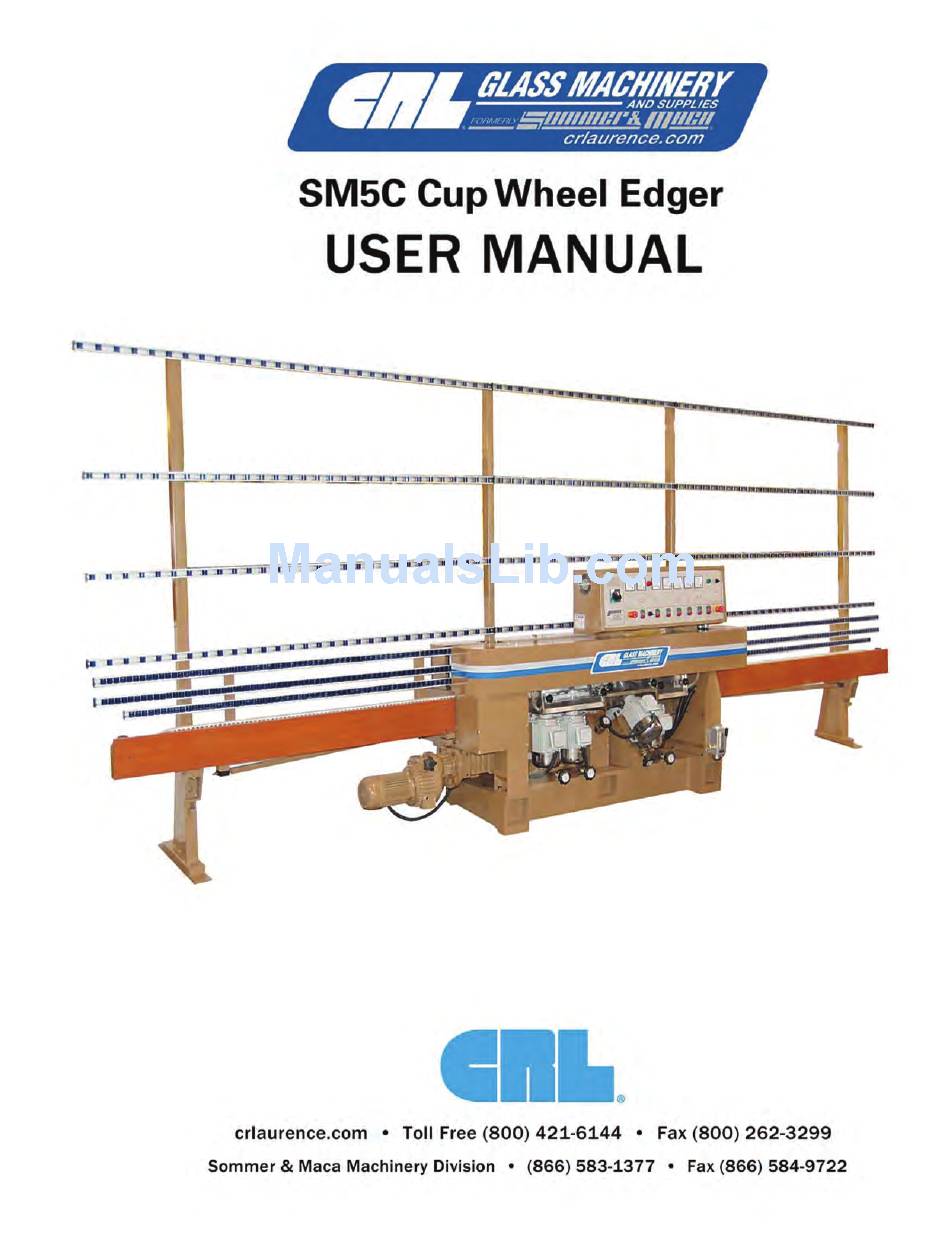

User’s Manual for SM5C Straight Line Glass Edging Machine Contents Description ----------------------------------------------------------------------------------- 5 Specification --------------------------------------------------------------------------------- 5 Installation and Operation ------------------------------------------------------------------ 6 Maintenance ---------------------------------------------------------------------------------- 9 Electrical System ---------------------------------------------------------------------------- 9 Packing List --------------------------------------------------------------------------------- 10 Tools ------------------------------------------------------------------------------------------ 11 Electrical Schematics ----------------------------------------------------------------------- 13 Reference Drawings/Figures --------------------------------------------------------------- 15... - Page 3 User’s Manual for SM5C Straight Line Glass Edging Machine TERMS AND CONDITIONS MACHINERY WARRANTY STATEMENT C.R. LAURENCE CO., INC. (“SELLER”) WARRANTS PRODUCTS OF ITS MANUFACTURE TO BE FREE FROM DEFECTS IN MATERIALS OR WORKMANSHIP IN NORMAL USE FOR (12) MONTHS FROM THE DATE OF SHIPMENT (UNLESS A SHORTER PERIOD IS PROVIDED ELSEWHERE IN THIS DOCUMENT).
- Page 4 User’s Manual for SM5C Straight Line Glass Edging Machine PREFIX We suggest to carefully follow the instructions in this manual and to regularly follow procedures of maintenance, which will allow you to obtain a higher degree of reliability, safety and durability of the product.
- Page 5 User’s Manual for SM5C Straight Line Glass Edging Machine SAFETY RULES The machine is provided with all devices of protection both mechanical (chain guard, shelters, etc.) and electrical (sensors, stops, etc.) in order to avoid any contact with moving parts by the operator.
-
Page 6: Description
User’s Manual for SM5C Straight Line Glass Edging Machine Description The CRL/Somaca SM5C Straight Line Glass Edging Machine is capable of producing a flat and seam edge with adjustable arris for different glass thickness. The grinding and polishing are finished in one operation. -
Page 7: Installation And Operation
1. Installation and Operation (1). General construction (Fig.6) The SM5C Straight Line Edging Machine consists of an Input Conveyor, Glass Support Rack, Main Machine, and Output Conveyor. It is important to set the machine up on a level surface or level it if setting up on an uneven surface. - Page 8 User’s Manual for SM5C Straight Line Glass Edging Machine Cooling System Connection Ⅰ. Power Connection: Plug the water pump into the front socket on the right side of the machine. There are two sockets. The water pump can draw power from either socket.
- Page 9 User’s Manual for SM5C Straight Line Glass Edging Machine 2. Turn on the Main Electrical Disconnect Switch (8) on the left side of the control panel. Voltmeter (7) indicates the power source voltage, check that the voltage is within specified range;...
-
Page 10: Maintenance
User’s Manual for SM5C Straight Line Glass Edging Machine Caution: When changing glass thickness, back off the front arris spindle, #2, and slowly dial in the amount of arris to be ground. This should match the rear arris grind, which should not have to be changed when glass thickness changes. -
Page 11: Packing List
User’s Manual for SM5C Straight Line Glass Edging Machine Packing List Packing List of SM5C Straight Line Edger Main Machine, Fitting Parts and Accessories Item Description Remark SE5M-00 Main Machine SE5M-F1 Input Conveyor With wooden, gear etc SE5M-F2 Output Conveyor With wooden, gear etc 38.1-XH4289.425+2mm PU... -
Page 12: Tools
User’s Manual for SM5C Straight Line Glass Edging Machine Tool Box List Tools Item Description Remark Tool Box S=10,14,17,19,24 Sockets Each 1 250mm Ratchet Handle 250mm Long Extension 125mm Short Extension Combo Wrenches S=10,14,17,19,24 Each 1 6”， 12” Adjustable Wrenches... - Page 13 Users Manual for SM5C Straight Line Edging Machgine Replacement Parts and Wheels for SM5C UNIT CAT. NO. DESCRIPTION 47013250 REAR PAD RUBBER 47013251 REAR PAD BASE 47013252 REAR PAD WITH GLUE ON 47013253 FRONT PAD RUBBER 47013254 FRONT PAD BASE...
- Page 28 SM5C Assembly Details Annex to User Manual The following assembly details will be of help when assembling the SM5C June 2011 Some construction details may have changed since the photos were taken but the assembly method should be the same.
- Page 29 Read the Manual for the Machine Before Following These Steps to Assemble the SM5C SM5C SSEMBLY STEPS Start by moving the main base of the machine off of the skid and into the Figure A location where it will be used.
- Page 30 The outgoing, inner conveyor bolt is in the block on the machine. It can’t be removed due to interference with the motor and transmission flange. Figure H. Fit the outgoing conveyor just as you did the ingoing side. Figure F Figure G The Pull Rods that keep the conveyors aligned are unequal lengths.
- Page 31 Remove the lifting hooks and fit the glass rack uprights with the same bolts. Fit the 4 short glass rack supports as shown in figure P on the back side of the conveyors, two per side. The black allen socket head bolts are for alignment. Figure M Figure N Locate the 6 lower glass rails.
- Page 32 Figure W1 Figure W2 Place the coolant tank under the Right Side, In-going conveyor. Figures W1, Place the coolant pump into the tank and connect the coolant supply hoses to the coolant manifold on the back of the machine, Figure W3. Attach the white PVC drain pipe to the back of the machine with the large Tie-Wraps, Figure W3, and connect the gray drain...
