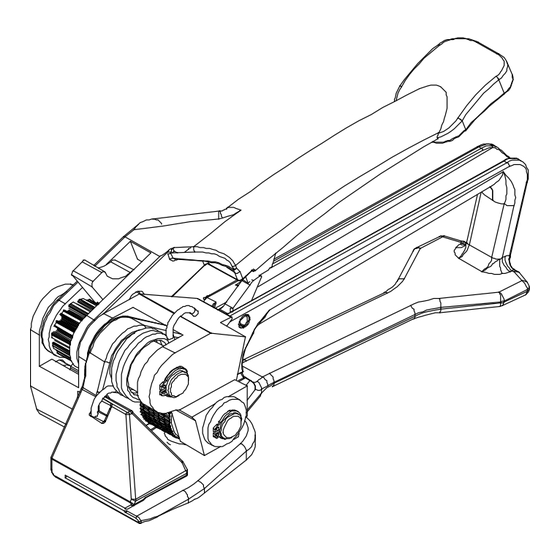

Heavy duty feed wheel pusher style tensioner

Advertisement

MIP - 1620 HEAVY DUTY FEEDWHEEL PUSHER TOOL
31
7
9
8
14
18
30
KEY#
DESCRIPTION
2
Drive Pawl
3
Spring Drive Pawl
4
Tension Handle
5
Pawl Pin
6
Pinion Gear
7
Tension Gear
8
Bushing
9
Feedwheel Shaft
14
Hold Pawl
15
Gear Housing
16
Holding Pawl Spring
31
6
15
19
23
16
QTY
PART#
1
M1620-2
1
M1620-3
1
M1620-4
1
M1620-5
1
M1620-6
1
M1620-7
1
M1620-8
1
M1620-9
2
M1620-14
1
M1620-15
2
M1620-16
Reference part number when ordering.
Key wear part
Read all operating & safety instructions.
17
4
20
31
KEY#
DESCRIPTION
17
Pivot Pin
18
Feedwheel
19
Lift Arm
20
Spirol Pin
23
Base Roll Pin
24
Wear Plug
26
Base Spring
28
Base
29
Gear Housing Bushing
30
Set Screw
31
Retaining Ring
5
2
3
29
31
28
26
24
QTY
PART#
1
M1620-17
1
M1620-18
1
M1620-19
1
M1620-20
1
M1620-23
1
M1620-24
1
M1620-26
1
M1620-28
1
M1620-29
1
M1620-30
4
M1620-31
04/15/04 SWH
