CSS8008

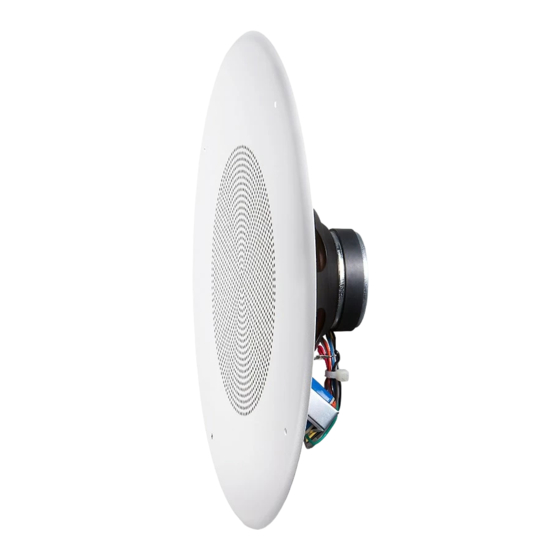

Commercial Series Ceiling Speaker
1. Install according to diagram.
2. Connect leads according to Tap Wiring chart.
3. Cut off bare portion of unused leads and
terminate with wire nuts.
Note: Always install in accordance with applicable
electrical and building codes.
Tap Wiring:
Orange
Green
25V
0.7W
1.3W
White
Blue
70V
0.7W
1.3W
100V
1.3W
2.5W
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
Gray
Yellow
Black
2.5W
5W
COM
Brown
Orange
Black
2.5W
5W
COM
5W
N/C
COM

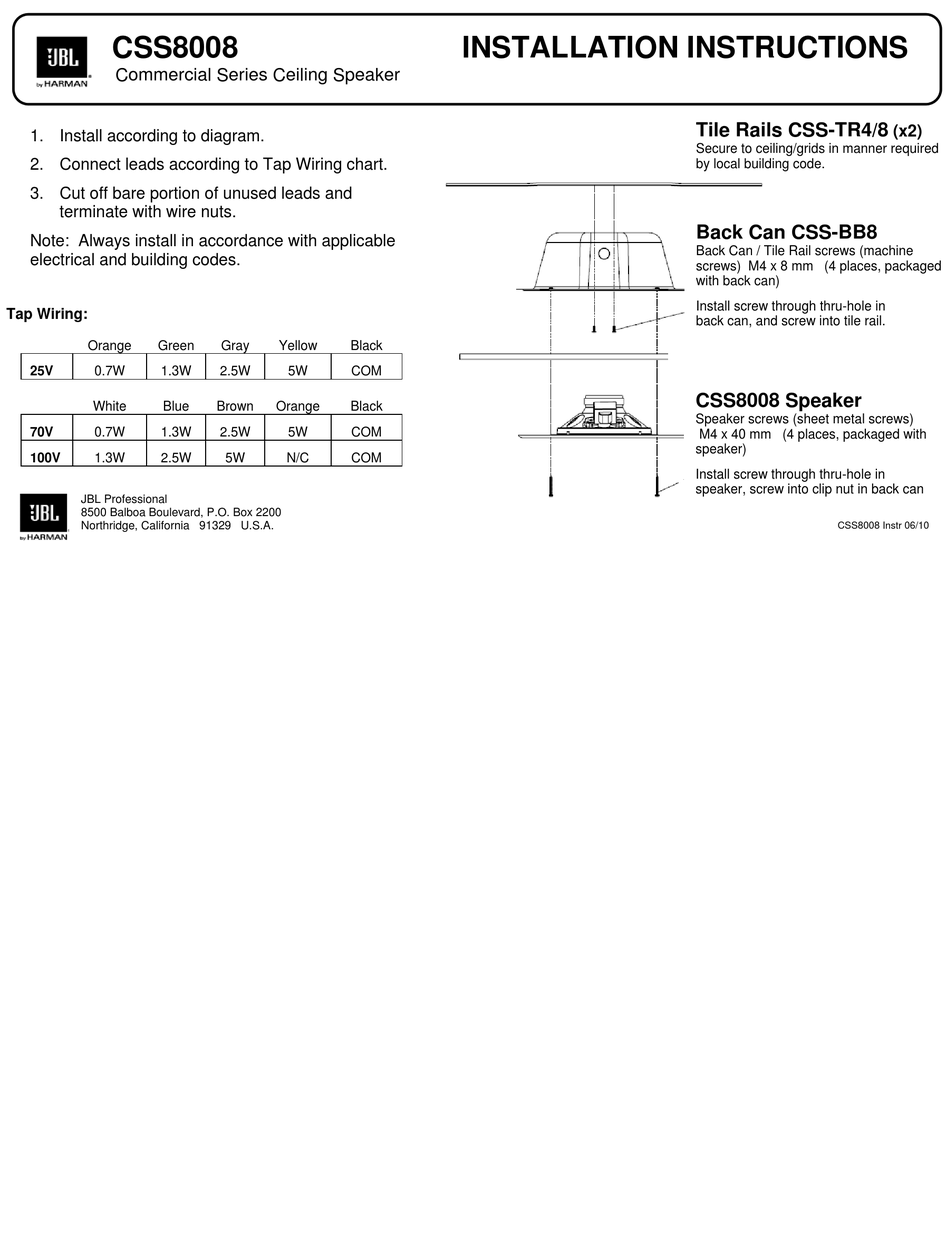

INSTALLATION INSTRUCTIONS
Tile Rails CSS-TR4/8
Secure to ceiling/grids in manner required
by local building code.
Back Can CSS-BB8
Back Can / Tile Rail screws (machine
screws) M4 x 8 mm (4 places, packaged
with back can)
Install screw through thru-hole in
back can, and screw into tile rail.
CSS8008 Speaker
Ceiling Material
Speaker screws (sheet metal screws)
M4 x 40 mm (4 places, packaged with
speaker)
Install screw through thru-hole in
speaker, screw into clip nut in back can
CSS8008 Instr 06/10
