Summary of Contents for Sennheiser e 904

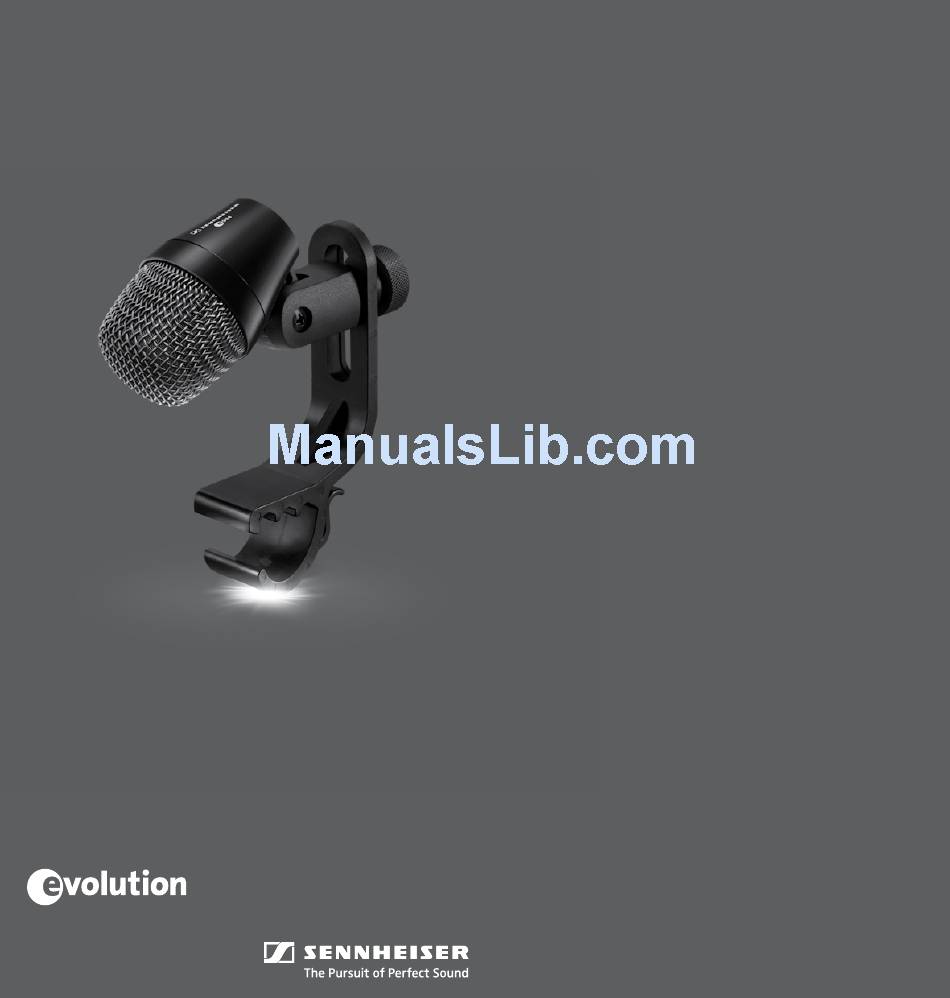

- Page 1 904 Bedienungsanleitung Instruction manual Notice d‘emploi Istruzioni per l‘uso Instrucciones de uso Manual de utilização Gebruiksaanwijzing Инструкция по эксплуатации 使用说明 Stage Microphones...
- Page 2 0° 0° 30° 30° 125 Hz 60° 60° 250 Hz 500 Hz 1,000 Hz 90° 90° 2,000 Hz 4,000 Hz 8,000 Hz 120° 120° 16,000 Hz 150° 150° 180° 180° - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m 6.3 mm...
-
Page 3: Important Safety Information
• Only use attachments, accessories or spare parts specified by Sennheiser. During operation • Liquids entering the product can short-circuit the electronics or damage the mechanics. Keep all liquids away from the product. -
Page 4: Package Contents
The e 904 Full of sound – full of life With its consistent frequency response, the e 904 creates a sound that is as transparent as it is harmonic and that can be wonderfully shaped. It can be cleanly embedded in the drum mix thanks to its precise attacks and voluminous body. -
Page 5: Using The Microphone
Using the microphone Positioning the microphone on a drum Use the microphone clamp to attach the e 904 to the rim of the drum. Pos. Resulting sound Commentary • More fundamental Position on the drum: • Little overtones 3–5 cm above the batter head, the fundamental tone to overtones ratio •... -
Page 6: Specifications
Specifications Transducer principle dynamic Frequency response 40 ... 18,000 Hz Pick-up pattern cardioid Sensitivity (free field, no load at 1 kHz) 2.0 mV/Pa 350 Ω Nominal impedance (at 1 kHz) Min. terminating impedance 1 kΩ Connector XLR-3 Dimensions Ø 41 x L 63 mm Weight 125 g The polar diagram and the frequency response curve... -
Page 7: Manufacturer Declarations
Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 9 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 12/16, 094274/A03...
