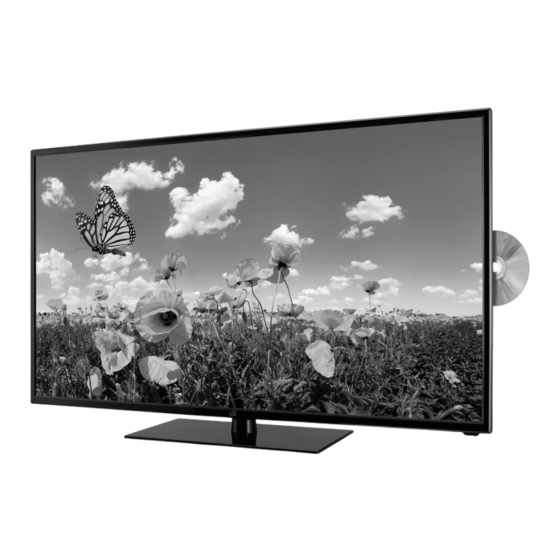

- Page 1 40" LED HDTV + DVD User’s Guide for Model TDE4074B v1738-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
- Page 4 Safety Instructions & Warnings WARNING: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN user-serviceable parts inside. Refer servicing ATTENTION to qualified service personnel. RISQUE D' ÉLECTROCUTION NE PAS OUVRIR The exclamation point within an equilateral triangle is intended to alert the user to...
- Page 5 Important Safety Instructions Additional Warnings and Precautions • Read these Instructions. • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY • Keep these Instructions. INSERT. • Heed all Warnings. • Mains plug is used as disconnect device and it should remain •...
-
Page 6: Table Of Contents
Table of Contents Your 40" LED HDTV + DVD ................7 Includes Setup . -
Page 7: Your 40" Led Hdtv + Dvd
Your 40" LED HDTV + DVD Includes • Removable stand • TV Stand Hardware: • Remote control and 2 AAA batteries BM4x10 screws (x3) BM4x14 screws (x2) BB4x12 screws (x6) Metal Plate Setup Some pixels may be visible on the screen, appearing as tiny red, green, blue or black spots. This is normal and is not a defect on the TV, and does not negatively affect the performance or picture quality. -
Page 8: Orientation
Orientation TV Controls & Inputs CD/DVD Player USB Port Memory Card Port Eject Stereo Audio Input HDMI 1, 2 Audio Output Play/Pause Composite VGA/PC Headphone Video Input Video Input Setup Menu Jack PC Audio Input Source Menu Optical Component TV Antenna/ Volume -/+ Audio Output Video Input... -
Page 9: Remote Functions
Remote Functions Power Mute Press to power the Press to mute the volume. television off or on. Freeze Display Press to freeze or Press to view the unfreeze the current on-screen display. frame in TV mode. DISPLAY ASPECT FREEZE SLEEP Aspect Sleep Press to adjust the aspect... -
Page 10: Connecting Devices To Your Tv
Connecting Devices to Your TV Connecting Cable TV or a TV Antenna Requires a cable TV hookup or TV antenna cable (not included). 1. Connect the Cable/Antenna wire to the input on the television. 2. Press the Source button to switch to TV mode. 3. - Page 11 Connecting Cable TV or a TV Antenna - Rear View Connecting HDMI - Rear View Connecting Component (YPbPr) Cables - Rear View...
-
Page 12: Connecting Composite Audio/Video
Connecting Devices to Your TV Connecting Composite Audio/Video Requires composite video (yellow) and RCA stereo (red, white) cables (not included). 1. Connect the audio output on your media device to the Stereo Audio input on the television with RCA stereo audio cables (red, white). -
Page 13: Connecting Composite Audio/Video
Connecting Composite Audio/Video- Rear View Connecting a Computer- Rear View Connecting Optical Audio - Rear View... -
Page 14: Connecting The Stereo Audio Output
Connecting Devices to Your TV Connecting the Stereo Audio Output Requires an RCA audio cable (not included). 1. Connect an RCA cable to the Audio Output on the TV and an audio input on an external audio receiver. 2. Adjust the audio receiver's source to the audio input used in step one. 3. -
Page 15: Connecting The Stereo Audio Output
Connecting the Stereo Audio Output - Rear View... -
Page 16: Dvd & Cd
DVD & CD Playing a DVD or CD Note: This unit is not compatible with MP3 CDs. 1. Insert a DVD or CD into the slot-load disc drive, with the label side facing the rear of the television. Once a DVD or CD is loaded into the television, the TV will automatically switch to DVD mode. -
Page 17: Usb & Sd, Mmc, Ms Memory Card
USB & SD, MMC, MS Memory Card Using a USB Thumb Drive 1. Load a USB thumb drive into the USB Port on the side of the television. 2. Press the Source button to switch to USB mode. 3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive. -
Page 18: Settings
Settings Auto Scanning for Channels The Auto Channel Scan must be run before any channels can be viewed on the television. Initial channel scanning process may take up to 15 min. 1. Press the Source button to switch to TV mode. 2. -
Page 19: Mounting To A Wall
Mounting to a Wall 100mm 200mm VESA Mount Specifications • 200mm x 100mm spacing (wth. x ht.) • M6 bolt pattern and thread pitch. A 15 to 25mm long bolt is recommended, depending on the thickness of the wall bracket selected. •... -
Page 20: Customer Support
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com Made Green...
