Maxxima MEW-PT1850 Installation Instructions

8-BUTTON COUNTDOWN
IN-WALL TIMER WITH
REPEATING FUNCTION
MEW-PT1850

Installation Instructions

Please keep this instruction

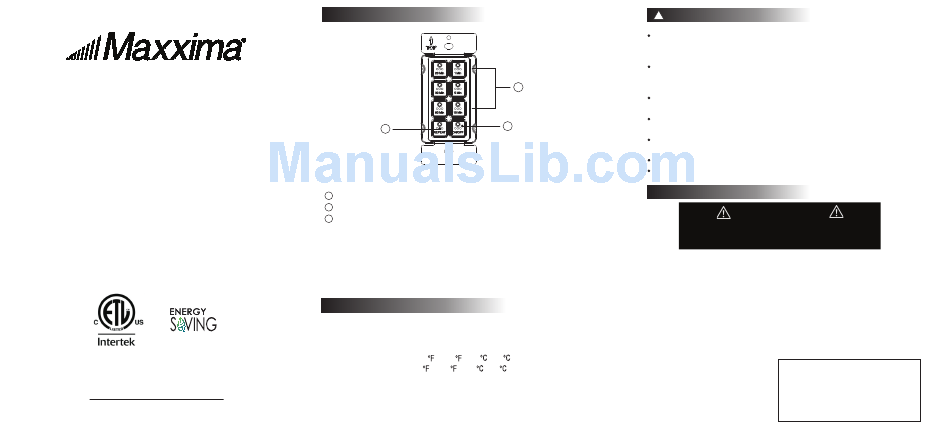

PRODUCTS VIEW

3
MEW-PT1850
Countdown Program Button: Press to start a countdown program.
1
ON/OFF Button: Manually turn ON/OFF or override a running program.
2
24-Hr Repeat Button: : Activate or deactivate the daily repeat of a
3
program.
There are 8 buttons on the main panel: 6 countdown buttons, an
ON/OFF button and a REPEAT button.
Configuration of the countdown buttons:
1Min, 5Min, 10Min, 20Min, 30Min, 60Min

TECHNICAL SPECIFICATIONS

125V~,60Hz
15A/1875W Resistive, 10A/1250W Tungsten,
10A/1250W Ballast, 1/2HP, TV-5
Operating temperature: 5 -122 (-15 -50 )
Storage temperature: -4 -140 (-20 -60 )
Insulation class: II
Protection class: IP20
24H Repeat accuracy: ± 2 minutes/month
WARNING
!
Single Pole
in a 3-Way application where multiple switches control the same
device.
Neutral Wire
Timer will not function properly if a neutral wire is not available in the
1 wall box.
Direct Wire
into an electrical wall box.
To avoid fire, shock, or death, turn off power at circuit breaker or the
2
fuse box before wiring.
Installation by a licensed electrician to local, state and national codes
is recommended.
For indoor use only.
Do not exceed electrical ratings.
INSTALLATION
Disconnect power to the mounting box by turning OFF the circuit
breaker or removing the fuse for the circuit before installing the
1. Turn off power at circuit breaker or fuse box
2. Remove existing wall plate and switch from wall box.
3. Make sure the following 3 wires are present in the wall box.
a. 1 Hot Wire from circuit breaker box
b. 1 Load Wire to the device to be powered
c. 1 Neutral Wire
If these are not present, this Timing Device will not function properly.
Additional wiring to the wall box will be required before installation of
this timer can be completed.
4. Strip wires 1/2-inch long.
5. Use the included wire nuts
and securely twist the wires
together as indicated in the
wiring Diagram.
: Timer will control devices from one location. Do not use
: This wire that must be available in the Junction Box
: This timer is only intended to be permanently installed
WARNING
MEW-PT1850, replacing Lamps, or doing any electrical work.

Wiring

From Timer
Black Wire -----------
Red Wire -----------
White Wire -----------
Green Wire -----------
*or to ground post or screw terminal
In Wall Box
Hot Wire
Load Wire
Neutral Wire
Ground Wire*
