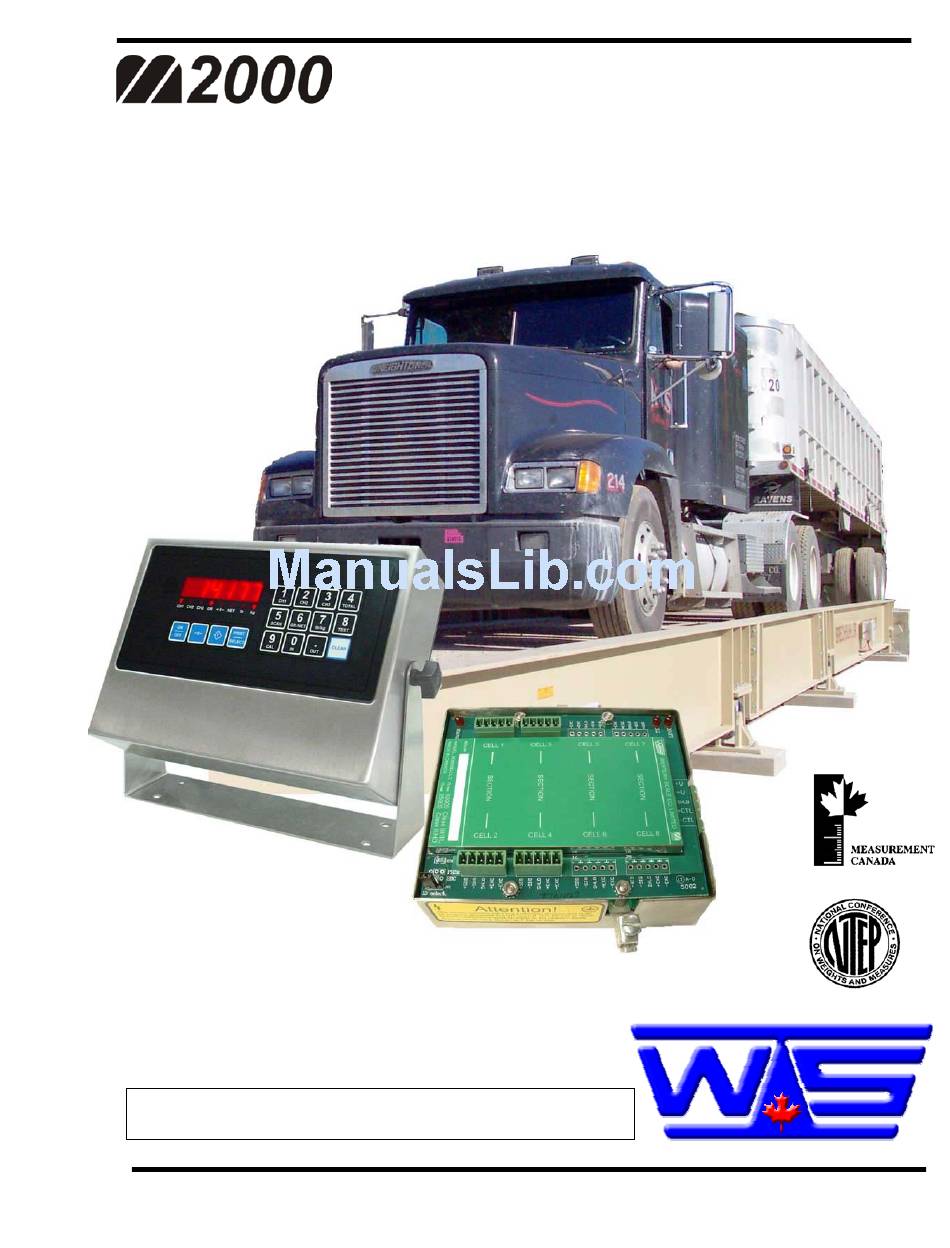

- Page 1 DIGITAL WEIGHING SYSTEM SECTIONAL TRUCK SCALE INSTALLATION GUIDE FOR SOFTWARE VERSION 1.21 (MAY 2003)
- Page 2 Information in this Installation Guide is subject to change without notice due to correction or enhancement. The information described in this manual is the property of Western Scale. No part of this manual may be reproduced or transmitted in any form, without the express written permission of Western Scale.
-
Page 3: Table Of Contents
Serial Handshaking……………………………………………………………… Com Port String Output Mode…………………………………………………... Configuring Com Ports to Transmit in RS422 Mode…………………………… Transmission Delay for Com1 & Com2………………………………………… M2000D System Specifications…………………………………………………………. Appendix A - M2000 Parameters……………………………………………………….. Appendix B - M2000D Specific Parameters……………………………………………. Appendix C – Error Messages………………………………………………………….. -
Page 5: Introduction
DIGITAL WEIGHING SYSTEM INTRODUCTION The M2000D Digital Smart Weigh System utilizes Digital Load Cell (DLC) technology to provide high-level data integrity, easier maintenance, and lightning protection for your weighing applications. Load cell connections to the DLC Smart Box (mounted on the weighbridge) are the same as connections to traditional analog summation cards. -
Page 6: Installation Strategies
SECTIONAL TRUCK SCALE INSTALLATION GUIDE INSTALLATION STRATEGIES Mount the DLC Smart Boxes as close as possible to the weighing platform. The DLC Smart Boxes must be mounted in a NEMA rated enclosure, as the modules themselves are not watertight. Keep cable runs between load cells and the DLC Smart Boxes as short as possible, to help eliminate the contamination of analog load cell signals by RFI and EMI interference. -
Page 7: System Grounding
DIGITAL WEIGHING SYSTEM SYSTEM GROUNDING The M2000 Digital System provides state of the art lightning surge protection. In order for surge conditions to be diverted properly, a good earth ground path must be in place. Since the M2000D indicator is optically isolated from the DLC modules, both ends should be grounded to a good earth connection. -
Page 8: Getting Started
• Wire the rest of the sections the same way, with odd numbered cells on one side, even numbered cells on the other. In the case of two DLC modules, loadcell numbering will restart at 1 on the Secondary DLC module. (See Navigating the M2000) Section Section... -
Page 9: Setting The Dlc Id Jumper
DIGITAL WEIGHING SYSTEM SETTING THE DLC ID JUMPER When using two DLC Smart Boxes, the M2000D indicator needs to differentiate between the Primary and Secondary modules. An ID switch must be set via the ID jumpers in the bottom right hand corner of each module. For systems utilizing only one DLC Smart Box, the jumpers must be in the “Primary”... -
Page 10: Wiring Loadcells To The Dlc Smart Box
SECTIONAL TRUCK SCALE INSTALLATION GUIDE WIRING LOAD CELLS TO THE DLC SMART BOX Load cells are wired to the DLC Smart Box using 5 pin terminal connectors. The connectors can be unplugged from the DLC to make wiring easier. The Primary DLC Smart Box will always contain Section 1. -
Page 11: Wiring Dlc Smart Boxes To The M2000D Indicator
DIGITAL WEIGHING SYSTEM WIRING THE DLC SMART BOXES TO THE M2000D INDICATOR The scale wiring requires 2 pairs of shielded wire (one pair for power delivery and one pair for data communications) plus a separate shield conductor. The recommended cable type is Beldon 9873 20 AWG or equivalent. For cable runs over 100 feet, Beldon 9773 18 AWG or equivalent is recommended. - Page 12 SECTIONAL TRUCK SCALE INSTALLATION GUIDE ONE DLC SMART BOX DLC SMART BOX CTRL - CTRL - CTRL + CTRL + (Fig. 5) TWO DLC SMART BOXES PRIMARY DLC SMART BOX CTRL - CTRL + CTRL - CTRL + SECONDARY DLC SMART BOX CTRL - CTRL + (Fig.
-
Page 13: Other Wiring To The M2000D Indicator
DIGITAL WEIGHING SYSTEM OTHER WIRING TO THE M2000D INDICATOR All wiring to the scale indicator terminates at the main circuit board. If possible, all wiring to the M2000D motherboard should be done before power is applied to the unit. COM2 COM1 SMARTWIRE 3.3V Li... -
Page 14: Powering Up The Indicator For The First Time
SECTIONAL TRUCK SCALE INSTALLATION GUIDE POWERING UP THE INDICATOR FOR THE FIRST TIME. The M2000 Digital System must be used with the 12V power supply adapter included with the indicator. The M2000D indicator powers up and should display a scrolling “[]2000”... -
Page 15: Calibration Mode
DIGITAL WEIGHING SYSTEM CALIBRATION MODE ENTERING INTO CALIBRATION MODE All calibration functions are executed from the keypad. Each calibration function or parameter has a unique code with which to access and edit values. To enter into calibration mode: Enter 19 followed by the [PRINT/SELECT] key. The display will flash “... -
Page 16: Setting Graduation Size
(Press 3, [PRINT/SELECT]) and the new value of 20 should be displayed. Hit the [CLEAR] key to cancel and return to weighing mode. NOTE: ALL parameters for M2000 Indicators are entered and edited in this way. SETTING SCALE CAPACITY (PARAMETER 4) To select Parameter 4, press 4 on the keypad followed by [PRINT/SELECT]. -
Page 17: Allocating Sections
DIGITAL WEIGHING SYSTEM ALLOCATING SECTIONS (PARAMETER 521) For an initial scale installation, the M2000D indicator needs to be told how many sections are in the scale. The scale must be installed and wired to the DLC Boxes before executing this command. There can be a maximum of 8 sections per scale. -
Page 18: Spanning A Scale With A Test Weight
SECTIONAL TRUCK SCALE INSTALLATION GUIDE SPANNING A SCALE WITH A TEST WEIGHT (PARAMETER 13) Place your test weights on the scale. Press 13 followed by the [PRINT/SELECT] key. Enter the test weight value (Example: 10000) followed by the [PRINT/SELECT] key. The indicator will calibrate the scale C10000 and the correct weight will be displayed. -
Page 19: Navigating The M2000
DIGITAL WEIGHING SYSTEM NAVIGATING THE M2000 The “Status / Electronic Address” screen appears in Calibration Mode and is used to navigate through the various elements of the scale. Details of Scale Set- up and Status are also displayed. The most important LED digits for navigation... -
Page 20: Select A Section Or Cell
SECTIONAL TRUCK SCALE INSTALLATION GUIDE SELECT A SECTION OR CELL (SCROLLING METHOD) Starting with the scale as a whole, sections and individual cells may be selected easily, using their “Electronic Address”. Press the [TARE] or [PRINT/SELECT] key to display the Electronic Address screen. -
Page 21: Quick Select Method (For Sections)
DIGITAL WEIGHING SYSTEM QUICK SELECT METHOD (FOR SECTIONS) This method allows a technician to go directly to a particular section instead of scrolling through all the scale elements. To quickly jump to a section, enter the section number followed by the [TARE] key. EXAMPLE: Select Section 3. -
Page 22: Example
SECTIONAL TRUCK SCALE INSTALLATION GUIDE EXAMPLE: Weight Correction on Section 2. Section 2 is weighing 9920 lbs. The actual weight on the scale is 10,000 lbs. Use the Quick Select Method to select Section 2. Enter 2 followed by the [TARE] key. -
Page 23: Serial Communications
9600 baud. DATA BITS (PARAMETER 27 - COM2 ONLY) COM1 on the M2000 is fixed at 8 Data Bits. However, if EVEN or ODD Parity is selected then 7 Data Bits will automatically be used. COM2 allows for independent selection of Data Bits. -
Page 24: Parity
String Format for COM2: Parameter 35 Several different indicator string formats are supported on the M2000. If creating a custom Output string for a ticket, the Com port connected to the printer must be set to 99. (See M2000 Ticket Formatting Guide) -
Page 25: Serial Handshaking
DIGITAL WEIGHING SYSTEM SERIAL HANDSHAKING - RTS/CTS (PARAMETER 36 & 37) Handshaking for COM1: Parameter 36 Handshaking for COM2: Parameter 37 Parameter Value Hardware Handshaking Disabled (default) Enabled COM PORT STRING OUTPUT MODE (PARAMETER 38 & 39) String Output Mode for COM1: Parameter 38 String Output Mode for COM2: Parameter 39... -
Page 26: Transmission Delay For Com1 & Com2
TRANSMISSION DELAY FOR COM1 AND COM2 (PARAMETER 65) Some older equipment may experience problems keeping up to the high update rate of the M2000. Parameter 65 inserts delays between string transmissions to slow down the output rate. The delay can be set with ¼ second increments. -
Page 27: M2000D System Specifications
DIGITAL WEIGHING SYSTEM M2000D SYSTEM SPECIFICATIONS INDICATOR PERFORMANCE (NTEP Certified) UNIT CONVERSION Lbs/kg ZERO TRACKING 1-99% of d or 1,2,3d RESOLUTION +/- 256 000 A/D counts per load cell SAMPLING RATE 100 times a second per AD/ channel SPAN STABILITY 2ppm/ Celsius ZERO STABILITY 5nV/Celsius... -
Page 28: Appendix A - M2000 Parameters
SECTIONAL TRUCK SCALE INSTALLATION GUIDE APPENDIX A – M2000 PARAMETERS Parameter Function Reload Factory Default Values Decimal Point Position Display Divisions Scale Capacity Motion Window Power On Units Calibration Scale Units Scale Over Power On Rest Warning Power Switch Bypass... - Page 29 DIGITAL WEIGHING SYSTEM Tare Function Mode Set Weight for Setpoint 1 Set Weight for Setpoint 2 Set Weight for Setpoint 3 Set Weight for Setpoint 4 Set Weight for Setpoint 5 Set Weight for Setpoint 6 Set Point Control Mask Set Point Hysteresis Adjustments Enabling SmartWire Interface Selecting Scale Channel to Connect to Current Loop...
-
Page 30: Appendix B - M2000D Specific Parameters
SECTIONAL TRUCK SCALE INSTALLATION GUIDE APPENDIX B – M2000 D SPECIFIC PARAMETERS Parameter Function Clear All Remote DLC Scale Allocations Clear Scale 1 Allocation Clear Scale 2 Allocation Clear Scale 3 Allocation Assign a Hopper Scale Assign a Sectional Scale... -
Page 31: Appendix C - Error Messages
DIGITAL WEIGHING SYSTEM APPENDIX C - ERROR MESSAGES Invalid parameter number for calibration mode Graduation size invalid Decimal Position Invalid Flag values must be 1 for ‘ON’ and 0 for ‘OFF’ Push to Zero Window must be 0-99 Zero tracking must be 1-99 or 100, 200, 300. Only 1 will reset parameters Only 1 will reset span table Span exceeds maximum capacity or span too small... - Page 32 SECTIONAL TRUCK SCALE INSTALLATION GUIDE Invalid input for AD voltage range Calibration checksum failed SRAM failure RTC RAM failure Clock Reset Clock Failed Battery flat or does not exist Battery must be removed COM1 loop back test failed COM2 loop back test failed COM driver chip failed FLASH memory erase failed FLASH memory write failed...
